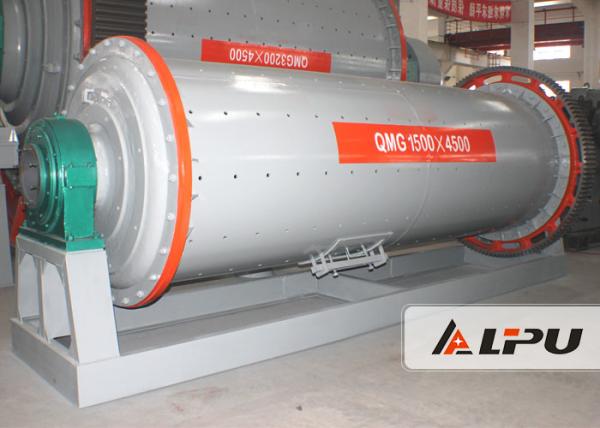

Professional Gold Industrial Ball Mill For Wet / Dry Grinding 110kw
Professional Gold Industrial Ball Mill For Wet / Dry Grinding 110kw
Professional Gold Industrial Ball Mill For Wet / Dry Grinding 110kw
Professional Gold Industrial Ball Mill For Wet / Dry Grinding 110kw
Specifications
Brand Name :
Lipu
Model Number :
1500×4500
Certification :
ISO9001-2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Gold Industrial Ball Mill
Model :
1500×4500
Effective volume :
7.1m³
Capacity :
6.5-12t/h
Power :
110kw
Rotary speed :
29rpm
Weight :
18t
Max. steel ball load :
10t
Condition :
New
Application :
cement, silicate product, new building material, refractory
Description

Professional Gold Industrial Ball Mill For Wet / Dry Grinding 110kw

Gold Mining Ball Mill Introduction

The ball mill with coarse particle product is common used in the first stage ore grinding. It is lined grooved ring plate which increases the contact surface of ball and ore and strengthens the grinding.

Gold Mining Ball Mill Advantages

1. Large double row self-aligning roller, bearing with low friction force, is used to replace sliding bearing, which is easy to start and saves 20-30% energy.

2. It is lined grooved ring plate, which increases the contact surface of ball and ore and strengthens the grinding.

3. Large ore outlet and large capacity

4. The mill with diameter below 2.1 meters adopts whole machine frame, which is convenient for civil construction and equipment installation.

5. Oil mist lubrication device guarantees the lubrication of all gears.

Gold Mining Ball Mill Working Principle

The main part of ball mill is a cylinder with small diameter and large length rotating slowly by the transmission device. In wet grinding, material is taken out; in dry grinding, the material is taken out by air. The grid installed in the outlet of mill is relied for forced discharge. Both ends of the cylinder body adopt rolling bearing instead of the sliding bearing, which is more energy-saving.

Technical Data:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kW)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ1500×3000 4.8 6.6 8.3 10 4.3-8 8.6-16 10-19 75 29 15
φ1500×4500 7.1 10 12 15 6.5-12 13-24 15-28 110 29 18
φ1500×5700 9 13 16 19 8.2-15 16-31 19-35 130 29 24

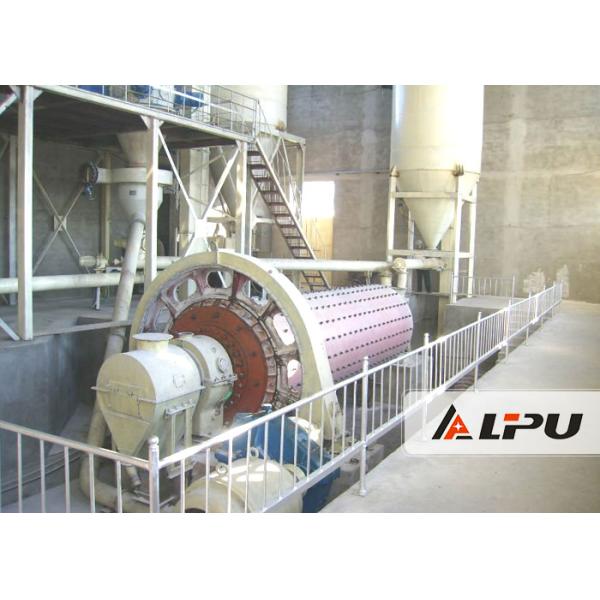

Ball Mill Working Site:

Professional Gold Industrial Ball Mill For Wet / Dry Grinding 110kw
