Quarry / Mineral Bucket Wheel Sand Washing Machine 2950×2530×2310 mm
Quarry / Mineral Bucket Wheel Sand Washing Machine 2950×2530×2310 mm
Quarry / Mineral Bucket Wheel Sand Washing Machine 2950×2530×2310 mm
Quarry / Mineral Bucket Wheel Sand Washing Machine 2950×2530×2310 mm
Specifications
Brand Name :
LIPU
Model Number :
XSD2215
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days after receiving advanced payment
Packaging Details :
Standard container or as customers' requirements
Product Name :
Wheel Sand Washing Machine
Model :
XSD2215
Max input size :
10mm
Capacity :
25-95t/h
Power :
5.5kw
Overall dimension :
2950×2530×2310mm
Weight :
2.7t
Application :
quarry, minerals, building materials, transportation, chemical industry
Color :
As customer's requirements
Condition :
New
Description

Quarry / Mineral Bucket Wheel Sand Washing Machine 2950×2530×2310 mm

Introduction of Wheel Sand Washing Machine

The efficient Sand Washing Machine of XSD series is a kind of cleaning equipment of international advanced level for sand and slag pellets, developed on the basis of introducing foreign outstanding technology of the same kind of products. It is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixture station and so on.

Features of Wheel Sand Washing Machine

Simple structure, water saving, no pollution, easy to maintain, durability and low consumption.

Working Principle of Sand Washing Machine

Wheel Sand washing machine drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.

Technical parameters:

Model

Max input size (mm)

Capacity (t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight

(t)

XSD2215

10

25-95

5.5

2950×2530×2310

2.7

Note: No further notice if the technical parameters change .

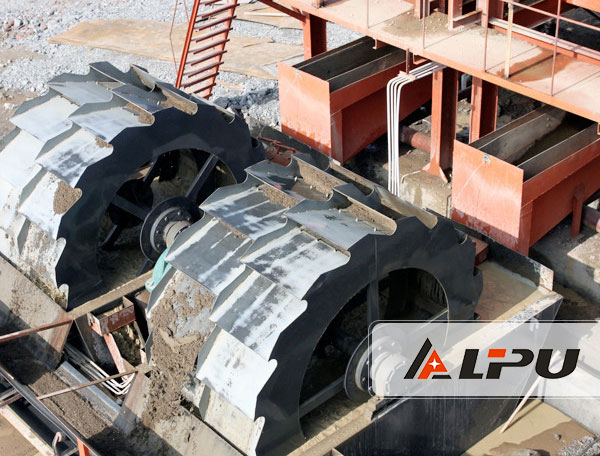

Sand Washing Machine Working Site:

Quarry / Mineral Bucket Wheel Sand Washing Machine 2950×2530×2310 mm
