Continuous Width 1000mm Mining Coal Conveyor Belt Systems 290-480t/H
Continuous Width 1000mm Mining Coal Conveyor Belt Systems 290-480t/H
Continuous Width 1000mm Mining Coal Conveyor Belt Systems 290-480t/H
Continuous Width 1000mm Mining Coal Conveyor Belt Systems 290-480t/H
Specifications
Brand Name :
LIPU
Model Number :
1000
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Mining Conveyor System
Belt Width :
1000mm
Capacity :
200-320t/h
Application :
mining, metallurgy, coal, construction
Condition :
New
Color :
As Customers' Requirement
Length (m) / Power (kw) :
≤10/5.5, 10-20/5.5-11, 20-40/11-22
Description

Continuous Mining Conveying System Belt Conveyor Machine Belt Width 1000mm

Overview of Belt Conveyor Machine

Belt conveyor machine is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. It is not only the components to transfer the material, but also the components to transfer the force.

Features of Belt Conveyor Machine

Belt conveyor is advanced and simple in structure, easy to maintain. Its transfer capacity is high, transfer distance is long. It is widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. In many situation, it is a very important component of nonstandard machinery.

Working Principle of Belt Conveyor Machine

Belt conveyor machine consist of standard parts, which are advanced and simple in structure, easy to maintain. According to different transferring equipment, the transfer system can be one independently or multi-conveyors or combined with other transfer equipment. It can be installed horizontally or aslope to meet the needs of different transfer lines.

Belt conveyor can be operated in the circumstance temperature range from -20°C to +40°C. The temperature of transferred material by this belt conveyor should be lower than 50°C.

Technical Parameters:

Belt width (mm)

Length (m) / Power (kW)

Capacity (t/h)

500

≤12/3

12-20/3-5.5

20-30/5.5-7.5

40-80

650

≤12/4

12-20/4-5.5

20-30/5.5-11

80-120

800

≤10/4

10-15/4-5.5

15-30/5.5-15

120-200

1000

≤10/5.5

10-20/5.5-11

20-40/11-22

200-320

1200

≤10/7.5

10-20/7.5-15

20-40/15-30

290-480

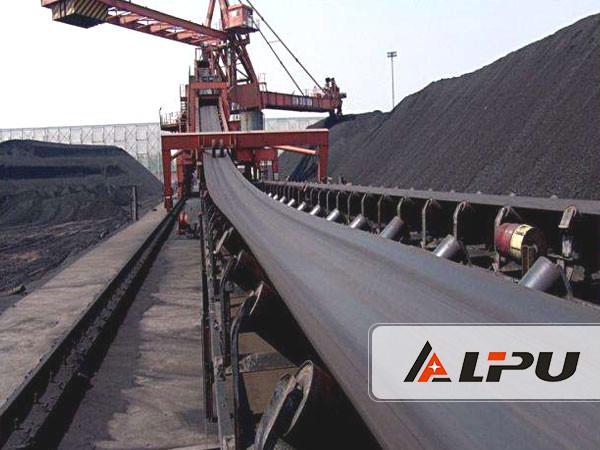

Belt Conveyor Working Site:

Continuous Width 1000mm Mining Coal Conveyor Belt Systems 290-480t/H

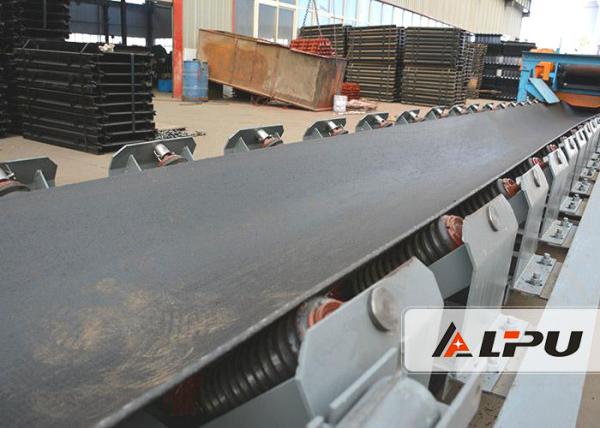

Belt Conveyor In Our Factory:

Continuous Width 1000mm Mining Coal Conveyor Belt Systems 290-480t/H
