Specifications
Brand Name :
Lipu
Model Number :
According to customer
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Stationary Stone Production Line
Capacity :
200t/h
Feeding equipment :
GZD1142
Crushing Equipment :
PE750×1060
Classification and screening equipment :
3YK1860
Belt Conveyor :
200m
Installed power :
350kw
Application :
limestone, granite, basalt, marble, smelting slag
Condition :
new
Description

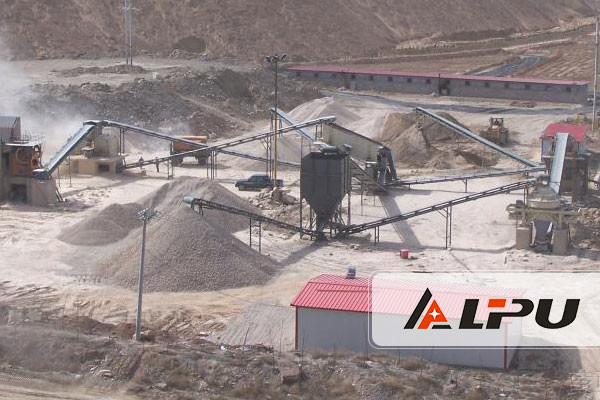

Stationary Stone Production Line Stone Crusher Plant for Ore Crushing & Screening

Introduction of Stone Crushing Line:

Stone production line capacity is 50-500 tons/hour. It can be used for hard limestone, granite, basalt, marble, smelting slag, etc.

Stone crushing & screening plant is the most widely used crushing plant in today's mining, quarrying, construction, aggregate production and so on. The crushing & screening plant can equip with different model of jaw crusher, cone crusher, impact crusher, sand crusher etc. to process different raw materials according to the application.

Jaw Crusher Use and Features:

Jaw Crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 320Mpa. Jaw Crusher is designed by our engineers with large reduction ratio, even granularity, simple structure, reliable operation, convenient maintenance, low cost, Jaw Crusher is widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries.

Impact Crusher Use and Features:

Impact Crusher can be widely used in the first and secondary crushing. Features: Simple structure, Non-key Connection, high chromium Flat Hammer, special impact plate, simplified crushing process, and high-efficiency and energy conservation, Cubic Shape for the final products. The discharge opening can be adjusted. It is widely used in water and electricity, expressway, sand and stone crushing fields.

Technical Data:

Processing

(t/h)

 Major equipment type, size, number
Feeding equipment

Crushing

equipment

Crushing

equipment

Classification and screening

equipment

 Belt Conveyor(m) Installed power(kw)
30 GZD8030 PE400×600 PF1008 2YK1235 60-90 120
50 GZD8530 PE400×600 PF1008 3YK1235 100-130 140
80 GZD9636 PE500×750 PF1010 3YK1545 130-160 200
100 GZD9638 PE600×900 PF1210 3YK1545 140-180 280
150 GZD1142 PE750×1060 PF1214 3YK1854 200-240 300
200 GZD1142 PE750×1060 PF1315 3YK1860 200 350
250 GZD1149 PE750×1060 PF1214/2 3YK2160 200 400
300 GZD1249 PE900×1200 PF1315/2 3YK2160 250 450
350 GZD1349 PE1000×1200 PF1315/2 3YK2460 250 500
450 GZD1349 PE1000×1200 PF1315/2 PF1214 3YK2160/2 350 600

Crusher Machine for Stone Crushing Plant:

Stationary Stone Crushing Plant for Ore Crushing / Screening

Stationary Stone Crushing Plant for Ore Crushing / Screening
