260-450TPH Sand Making Machine Mine Crushing Equipment for Highway Railway Construction
260-450TPH Sand Making Machine Mine Crushing Equipment for Highway Railway Construction
260-450TPH Sand Making Machine Mine Crushing Equipment for Highway Railway Construction
260-450TPH Sand Making Machine Mine Crushing Equipment for Highway Railway Construction
Specifications
Brand Name :
Lipu
Model Number :
VCⅡ1145
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Sand Making Machine
Model :
VCⅡ1145
Capacity :
260-450t/h
Max. Feed Size(mm) :
50mm
Double Motor Power :
400-440kw
Overall Dimension :
5200×2400×4200mm
Weight :
15t
Application :
Highway Railway Construction
Description

260-450TPH Sand Making Machine Sand Crusher for Highway Railway Construction

Introduction of Sand Making Machine

Sand Making Machine is improved on the basis of Germany high technology, which is highly-efficient and superior in performance. The sand making machine is widely used to produce sand and stone for highway, high-speed railway, city project, hydropower dam constructions, and concrete mixing plant, and it’s also widely used in sand making and stone reshaping industry.

Features of Sand Making Machine

1. The oil needed is supplied by two oil pumps, and the machine stops automatically if there is no oil; the motor can be heated automatically in winter to ensure the normal working of the machine.

2. Hydraulic lifting system to check and replace the spare parts, thus it’s very easy and simple to maintain.

3. Unique vibrating alarm device: if the machine works abnormally, the alarm will sound to stop the machine, thus protecting the whole machine.

4. Special feeding structure; rock on rock, and rock on iron to make the stones crushed and reshaped.

5. Unique dustproof seal system to prevent the dust getting into the spare parts.

6. Unique design of material bumping angle reduces the friction between raw material and spare parts, extending the working life of spare parts and cut the cost.

Technical Parameter :

Model

VCⅡ7515

VCⅡ8622

VCⅡ9532

VCⅡ1145

Capacity(t/h)

Center

feeding

70-150

120-220

170-320

260-450

Center

and side

feeding

90-200

150-290

220-420

340-590

Max. Feed

Size(mm)

40

50

50

50

Double

Motor

Power(kW)

110-150

180-220

260-320

400-440

Overall

Dimension/L×W×H(mm)

4100×2000×3200

4500×2100×3400

4800×2250×3800

5200×2400×4200

Transportation

Dimension/

L×W×H(mm)

4100×2000×2100

4500×2100×2200

4800×2250×2600

5200×2400×2850

Weight(t)

stone

strike

stone” crushing

cavity

7.8

9.2

12

15

stone strike

iron” crushing

cavity

8.9

10.5

13.8

17.5

Thin Oil Lubrication Station

Double Oil

Pump Power(kW)

2×0.37

Safety

Protection

Double Oil Pump feed each other; Automatic shutdown when

no oil return; Water cooling system; Automatic heating in low temperature.

Oil Tank

Heating

Power(kW)

2

Overall Dimension/L

×W×H(mm)

820×520×1270

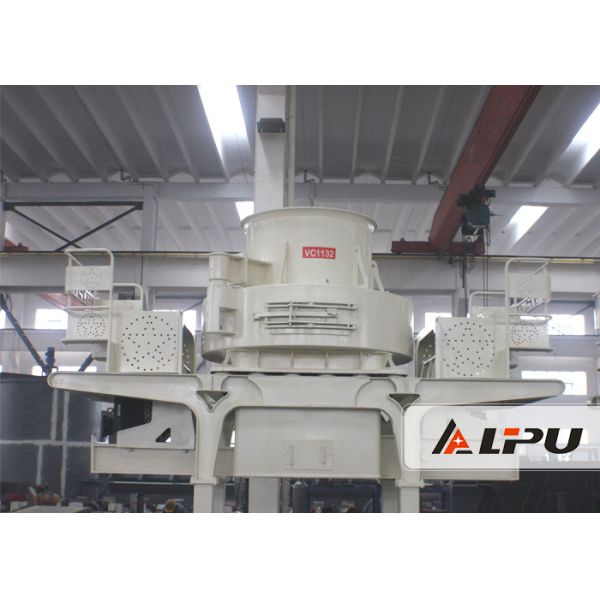

Product Picture Show :
