Mine Jaw Portable Crusher Plant / Mobile Crushing And Screening Plants
Mine Jaw Portable Crusher Plant / Mobile Crushing And Screening Plants
Mine Jaw Portable Crusher Plant / Mobile Crushing And Screening Plants
Mine Jaw Portable Crusher Plant / Mobile Crushing And Screening Plants
Specifications
Brand Name :
Lipu
Model Number :
YG0830E4060-3S1548F1010
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Mobile Jaw Crushing Plant
Model :
YG0830E4060-3S1548F1010
Feeder Model :
GZD0830
Primary Crusher Model :
PEV400×600
Secondary Crusher Model :
PFW1010-Ⅲ
Vibrating Screen Model :
3YK1548
Tyre Parameters :
Double- axle
Return Belt Conveyor Model :
B500×14m
Receiving Belt Conveyor Model :
B500×10m
Left Belt Conveyor Model :
B500×8m
Right Belt Conveyor Model :
B500×8m
Belt Conveyor Under the Screen Model :
B500×8m
Weight :
41t
Condition :
New
Description

Convenient Operation Mobile Jaw Crushing Plant Portable Crusher in Mining Highway

Introduction

Mobile jaw crusher plant (mobile crushing and screening plants) is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydro-power industries, etc. to finish crushing and screening operations at one time, produce required size and output for consumers.

Advantages

The jaw crusher plant has the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.

Working Principle

The jaw crusher plant (mobile crushing and screening plants) is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, they can respectively assume their different responsibility, and the belt conveyor is responsible for material transmitting and piling up between each crushing station.

Model and Specification:

Model

YG0830E4060-3S1548F1010

YG0830E5075-3S1848F1210

YG0830E4060-3S1548E25120

YG0830E5075-3S1848Y100

Feeder Model

GZD0830

GZD0830

GZD0830

GZD0830

Primary Crusher Model

PEV400×600

PEV500×750

PEV400×600

PEV500×750

Secondary Crusher Model

PFW1010-Ⅲ

PFW1210-Ⅲ

PEV250×1200

PYG100

Vibrating Screen Model

3YK1548

3YK1848

3YK1548

3YK1848

Tyre Parameters

Double- axle

Triplex-axle

Double- axle

Triplex-axle

Return Belt Conveyor Model

B500×14m

B650×16m

B500×14m

B650×16m

Receiving Belt Conveyor Model

B500×10m

B650×12m

B500×10m

B650×12m

Left Belt Conveyor Model

B500×8m

B500×8m

B500×8m

B500×8m

Right Belt Conveyor Model

B500×8m

B500×8m

B500×8m

B500×8m

Belt Conveyor Under the Screen Model

B500×8m

B500×8m

B500×8m

B500×8m

Transport length(mm)

14500

17200

14500

17200

Transport Width(mm)

3000

3000

3000

3000

Transport Height (mm)

4200

4800

4200

4800

Weight(t)

41

58

37

54

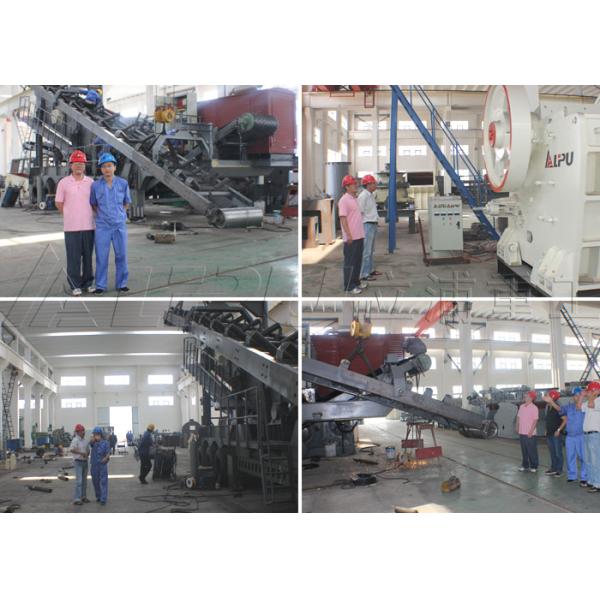

Customers Visit:
