132kw - 160kw Mine Crushing Equipment / Impact Stone Crushing Machine 90-190t/H
132kw - 160kw Mine Crushing Equipment / Impact Stone Crushing Machine 90-190t/H
132kw - 160kw Mine Crushing Equipment / Impact Stone Crushing Machine 90-190t/H
132kw - 160kw Mine Crushing Equipment / Impact Stone Crushing Machine 90-190t/H
Specifications
Brand Name :
Lipu
Model Number :
PFW1214-Ⅲ
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Impact Crusher
Model :
PFW1214-Ⅲ
Max Input size :
250mm
Capacity :
90-190t/h
Power :
132-160kw
Overall dimension :
2550×2340×2110mm
Weight :
19t
Application :
quarry, mining, metallurgy, building and construction materials industries
Description

PF Series Impact Crusher Secondary Stone Crushing Machine Capacity 90-190t/h
Brief Introduction of Impact Crusher
Impact crushers is widely used as secondary stone crusher in quarry, mining, metallurgy, building and construction materials industries.
Based on "rock on rock" and with three crushing chambers, the final products is cubic shape. Lipu impact crusher is especially suitable for making aggregates used in highway construction.
Features of Impact Crusher
1. Connected with locking sleeve assembly.
2. Final product with cubical shape.
3. The blow bar with high chrome.
4. Easy maintenance. Hydraulic or hand opening.
5. High reduction ratio and crushing efficiency;

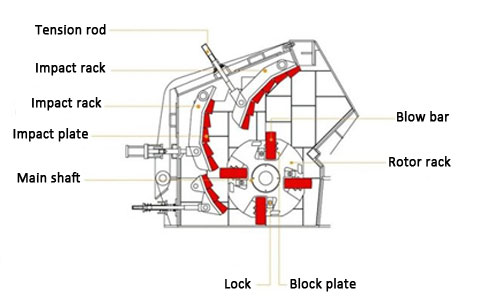

Main Parts of Impact Crusher
Impact crusher is mainly made by frame, main shaft, rotor, blow hammer, impact rack, impact liner, protection liner, flywheel, feed opening, discharge opening.
Working Principle of Impact Crusher :
When the impact crusher works, the motor drives the rotor rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet.
132kw - 160kw Mine Crushing Equipment / Impact Stone Crushing Machine 90-190t/H
Technical Parameters-PFW Two-cavity Impact Crusher:

Model

Max input size (mm)

Capacity(t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight(t)

PFW1007-Ⅱ

300

40-90

45-55

2130×1530×1700

11

PFW1010-Ⅱ

350

70-120

55-75

2130×1830×1700

14

PFW1210-Ⅱ

400

100-160

90-110

2550×1940×2110

17

PFW1214-Ⅱ

450

130-200

132-160

2550×2340×2110

22

PFW1315-Ⅱ

500

180-320

160-200

2720×2460×2410

29

PFW1320-Ⅱ

550

230-450

200-250

2720×3060×2410

38

Technical Parameters-PFW Three-cavity Impact Crusher:

Model

Max input size (mm)

Capacity(t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight(t)

PFW1007-Ⅲ

200

15-60

45-55

2130×1530×1700

9

PFW1010-Ⅲ

200

50-90

55-75

2130×1830×1700

12

PFW1210-Ⅲ

250

70-140

90-110

2550×1940×2110

15

PFW1214-Ⅲ

250

90-190

132-160

2550×2340×2110

19

PFW1315-Ⅲ

300

120-280

160-200

2720×2460×2410

25

PFW1320-Ⅲ

300

160-350

200-250

2720×3060×2410

31

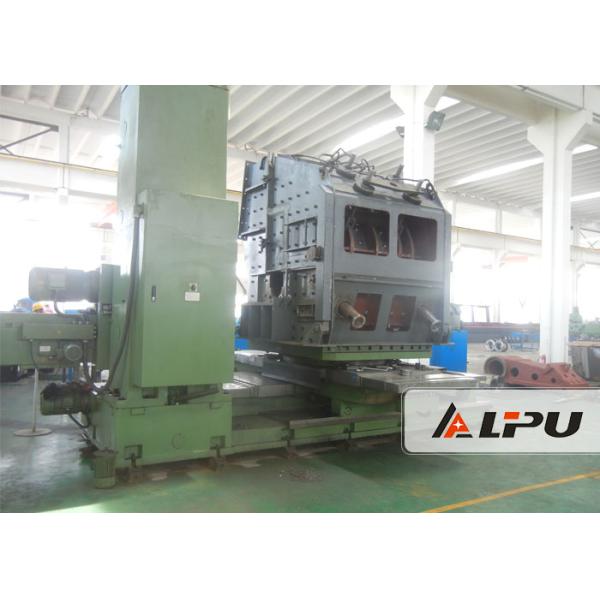

Impact Crusher Manufacturing In Our Factory:
132kw - 160kw Mine Crushing Equipment / Impact Stone Crushing Machine 90-190t/H

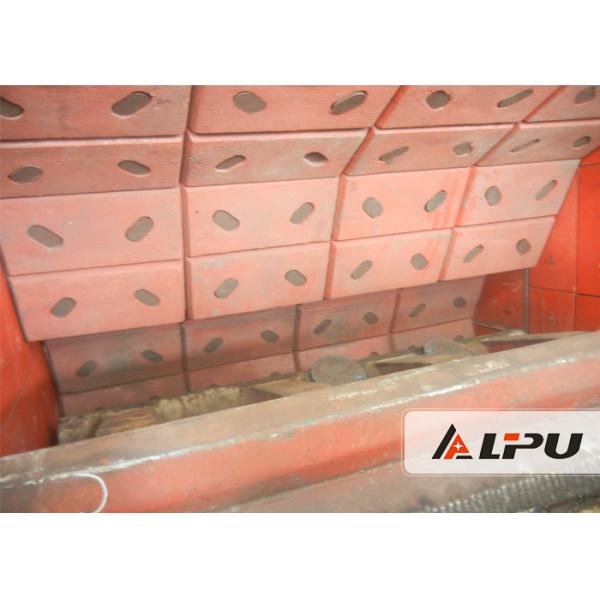

Impact Plate:
132kw - 160kw Mine Crushing Equipment / Impact Stone Crushing Machine 90-190t/H
