Mining Processing Equipment Flotation Cell Ore Dressing Plant for Gold Iron Lead Zinc
Mining Processing Equipment Flotation Cell Ore Dressing Plant for Gold Iron Lead Zinc
Mining Processing Equipment Flotation Cell Ore Dressing Plant for Gold Iron Lead Zinc
Mining Processing Equipment Flotation Cell Ore Dressing Plant for Gold Iron Lead Zinc
Mining Processing Equipment Flotation Cell Ore Dressing Plant for Gold Iron Lead Zinc
Mining Processing Equipment Flotation Cell Ore Dressing Plant for Gold Iron Lead Zinc
Specifications
Brand Name :
Lipu
Model Number :
SF1.2
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Flotation cell
Model :
SF1.2
Cell volume :
1.2m³
Impeller diameter :
450mm
Impeller speed :
312r/min
Capacity :
0.6-1.2m³/min
Main motor power :
5.5kw
Weight :
1.4t/cell
Condition :
New
Application :
non-ferrous metal, black metal, noble metal, non-metal mineral
Description

Mining Processing Equipment Flotation Cell Ore Dressing Plant for Gold Iron Lead Zinc

Introduction

Flotation machine is applicable for the extraction of metals like gold, argent, iron, lead, zinc, molybdenum, nickel and aluminum and the separation of ferrous metals and non-metals. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral absorbs on bubbles, floats on the surface of slurry and then is scraped out, other minerals still stay.

Working principles

Flotation machine is mainly composed of pulp chute, mixing device, air charging system, mineralized bubble discharging device and electro motor.

When flotation machine works, the impeller of the flotation cells is driven by the spinning engine triangle to form the centrifugal formation and produce the negative pressure. On one hand, large of inhaled air is mixed with the pulp; On the other hand, the stirred pulp is mixed with the drug to fine the bubble, to make a certain mineral bond on the bubble. Adjust the height of the disc to control the liquid surface and the useful bubble will be scraped out.

Advantages

1) Excellent air-absorption capacity;

2) Low energy consumption;

3) Optimized design, the mineral slurry loops reasonably in cells without any auxiliary equipment;

4) Self-control functions;

5) Special designed impeller can produce upper and lower circulation of mineral slurry respectively.

Technical Parameters:

SF series Flotation Machine

Model

Cell volume(m³)

Impeller diameter

(mm)

Impeller speed

(r/min)

Capacity

(m³/min)

Main motor power

(kW)

Scraper motor power

(kW)

Weight

(t/cell)

SF1.2

1.2

450

312

0.6-1.2

5.5

1.1

1.4

BF series Flotation Machine

Model

Cell volume(m³)

Impeller diameter

(mm)

Impeller speed

(r/min)

Air inflow

(m³/m2.min)

Capacity

(m³/min)

Power

(kW)

Weight

(t/cell)

BF2.8

2.8

550

278

0.9-1.1

1.4-3

11

2.1

BF4

4

650

235

0.9-1.1

2.4-4

15

2.6

BF6

6

700

205

0.9-1.1

3-6

18.5

3.3

BF8

8

760

188

0.9-1.1

4-8

22

4.1

BF10

10

760

188

0.9-1.1

5-10

22

4.5

BF16

16

850

195

0.9-1.1

8-16

37

8.3

BF20

20

850

195

0.9-1.1

10-20

45

8.7

BF24

24

920

181

0.9-1.1

12-24

45

9

KYF series Inflatable Flotation Machine

Model

Cell volume(m³)

Impeller diameter

(mm)

Impeller speed

(r/min)

Air pressure of air blower

(kPa)

Max. Air inflow

(m3/m2.min)

Capacity

(m3/min)

Main motor power

(kW)

Scraper motor power

(kW)

Weight

(t/cell)

KYF1

1

340

281

≥12.6

2

0. 2-1

4

1. 1

0. 8

KYF2

2

410

247

≥14.7

2

0. 4-2

5. 5

1. 1

1. 5

KYF3

3

480

219

≥19.8

2

0. 6-3

7. 5

1. 5

1. 9

KYF4

4

550

200

≥19.8

2

1. 2-4

11

1. 5

2. 2

KYF8

8

630

175

≥21.6

2

3. 0-8

15

1. 5

4. 2

KYF16

16

740

160

≥25.5

2

4. 0-16

30

1. 5

6

KYF24

24

800

150

≥30.4

2

4. 0-24

30

1. 5

7. 5

KYF38

38

880

138

≥34.3

2

10-38

37

1. 5

10. 3

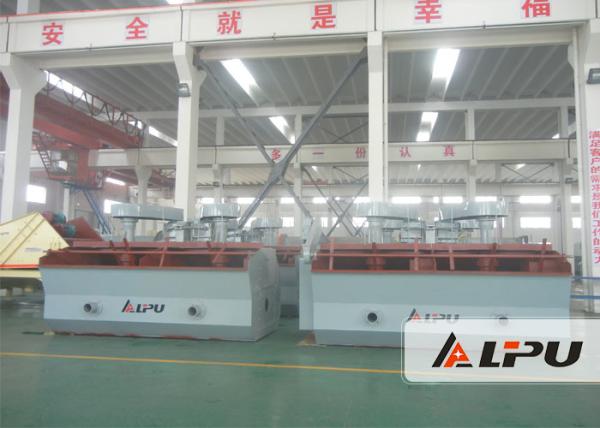

Flotation Machine Displayed in Our Factory:

Mining Processing Equipment Flotation Cell Ore Dressing Plant for Gold Iron Lead Zinc
