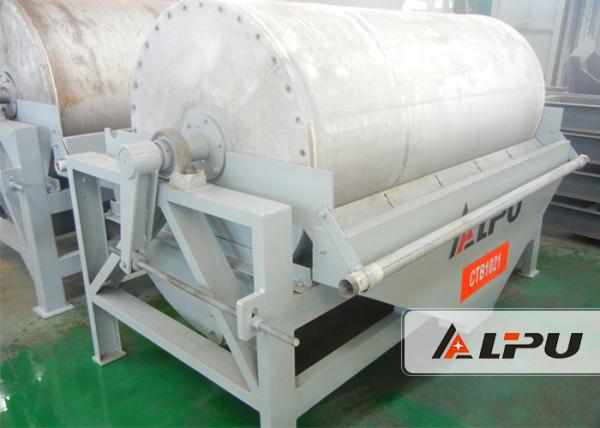

Mineral Beneficiation Equipment Magnetic Drum Separator for Hematite Limonite
Mineral Beneficiation Equipment Magnetic Drum Separator for Hematite Limonite
Mineral Beneficiation Equipment Magnetic Drum Separator for Hematite Limonite
Mineral Beneficiation Equipment Magnetic Drum Separator for Hematite Limonite
Specifications
Brand Name :
Lipu
Model Number :
CTB1224
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Magnetic Drum Separator
Model :
CTB1224
Shell diameter :
1200mm
Shell length :
2400mm
Capacity :
70-130t/h
Power :
7.5kw
Overall dimension :
3400×2030×1850mm
Condition :
New
Application :
magnetic minerals, such as hematite, limonite, wolfram, ilmenite
Weight :
6.4t
Description

Mineral Beneficiation Equipment Magnetic Drum Separator for Hematite Limonite
Magnetic Separator Introduction:
The Magnetic Separator can separate raw materials with different magnetic rigidity. The machine works under the magnetic force and machine force.
Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in design and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency.
The Magnetic Separators are available in cyclic design with process vessel diameters smaller than 3mm. Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.
Magnetic Separator Advantages:
1) Short magnetic circuit
2) Little magnetic flux leakage
3) High magnetic intensity
4) Low energy consumption
5) Fine beneficiating results
6) Simple structure and easy to maintain.
Technical Parameters:

Model

Shell diameter (mm)

Shell length (mm)

Capacity (t/h)

Power (kW)

Overall dimension

L×W×H(mm)

Weight (t)

CTB612

600

1200

10-20

1.1

2030×1200×1140

1.5

CTB618

600

1800

15-30

2.2

2630×1200×1140

1.8

CTB718

750

1800

20-45

3

2550×1460×1360

2.2

CTB918

900

1800

25-55

4

3050×1820×1700

2.9

CTB924

900

2400

35-70

4

3710×1820×1700

3.6

CTB1018

1050

1800

40-75

5.5

2800×1760×1750

4.3

CTB1024

1050

2400

60-120

5.5

3200×1760×1750

5.2

CTB1030

1050

3000

70-150

7.5

3950×1760×1750

6.3

CTB1218

1200

1800

60-110

5.5

2850×2030×1940

5

CTB1224

1200

2400

70-130

7.5

3400×2030×1850

6.4

CTB1230

1200

3000

80-160

7.5

4050×2030×1940

7.8

CTB1530

1500

3000

100-180

11

4230×2300×2350

9.2

CTB1540

1500

4000

115-220

11

5230×2300×2350

10.5

Customer Visit for Magnetic Separator :
