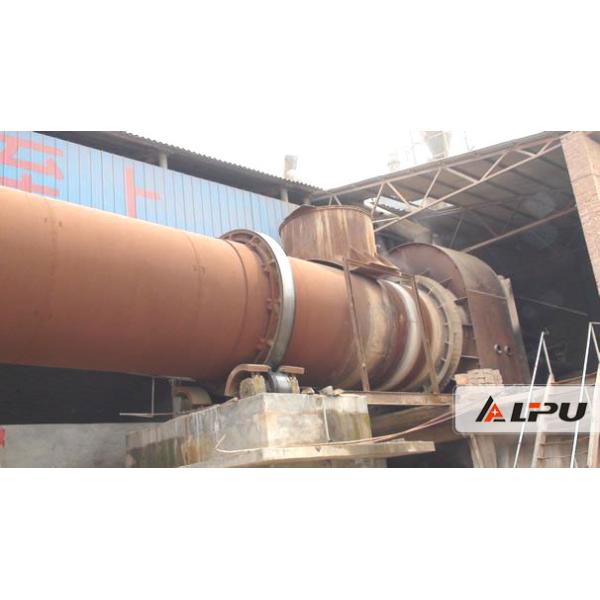

Energy Saving Rotary Kiln Cement Plant for Cement Clinker Dry / Wet Process 37kw
Energy Saving Rotary Kiln Cement Plant for Cement Clinker Dry / Wet Process 37kw
Energy Saving Rotary Kiln Cement Plant for Cement Clinker Dry / Wet Process 37kw
Energy Saving Rotary Kiln Cement Plant for Cement Clinker Dry / Wet Process 37kw
Specifications
Brand Name :
Lipu
Model Number :
2.0×40
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Rotary Kiln
Model :
2.0×40
Capacity :
78t/d
Rotary Speed :
0.23-2.26r/min
Power :
37kw
Weight :
119t
Condition :
New
Application :
cement plant
Description

Energy Saving Rotary Kiln Cement Plant for Cement Clinker Dry / Wet Process

Rotary Kiln Introduction:

Rotary Kiln is the key equipment of cement clinker dry -process and wet -process production line, and is also used in various industries such as metallurgical, chemical industry, building refractory, environmental protection industry, etc .

Rotary Kiln Features:

1. Low energy consumption or energy saving way of calcination.

2. Reasonable design so that the waste heat can be most effectively reused.

3. Lime kiln is equipped with dust catcher to filter waste gas and dust to meet the standard of waste gas emission.

4. The fans with reliable performance to guarantee the calcinating condition.

5. High automation level.

Rotary Kiln Working Principle:

Lime kiln is installed with slope, generally 4-5%. The motor drives the gearwheels to rotate. The materials to be calcinated are put into the feeding port, which is on the higher side. While the lime rotary kiln is rotating, materials go through the cylinder of lime kiln. The cylinder can be divided into four areas: feeding area, preheating area, main calcinating area and cooling area. After going through these four areas, materials are discharged. Generally the discharging port of lime kiln is connected with cooler so that the discharged materials can go to the cooler to lower the temperature.

Technical Parameters:

Model

Kiln

Capacity(t/d)

Rotary Speed

(r/min)

Power

(kW)

Weight

(t)

Diameter(m)

Length(m)

Slope(%)

1.4×33

1.4

33

3

26

0.39-3.96

18.5

48

1.6×36

1.6

36

4

37

0.26-2.63

22

52

1.8×45

1.8

45

4

52

0.16-1.62

30

78

1.9×39

1.9

39

4

56

0.29-2.93

30

78

2.0×40

2

40

3

78

0.23-2.26

37

119

2.2×45

2.2

45

3.5

106

0.21-2.44

45

128

2.5×40

2.5

40

3.5

180

0.44-2.44

55

150

2.5×50

2.5

50

3

200

0.62-1.86

55

187

2.5×54

2.5

54

3.5

204

0.48-1.45

55

196

2.7×42

2.7

42

3.5

320

0.10-1.52

55

199

2.8×44

2.8

44

3.5

400

0.437-2.18

55

202

3.0×45

3

45

3.5

500

0.5-2.47

75

211

3.0×48

3

48

3.5

700

0.6-3.48

100

237

3.0×60

3

60

3.5

300

0.3-2

100

310

3.2×50

3.2

50

4

1000

0.6-3

125

278

3.3×52

3.3

52

3.5

1300

0.266-2.66

125

283

3.5×54

3.5

54

3.5

1500

0.55-3.4

220

363

3.6×70

3.6

70

3.5

1800

0.25-1.25

125

419

4.0×56

4

56

4

2300

0.41-4.07

315

456

4.0×60

4

60

3.5

2500

0.396-3.96

315

510

4.2×60

4.2

60

4

2750

0.4-3.98

375

633

4.3×60

4.3

60

3.5

3200

0.396-3.96

375

583

4.5×66

4.5

66

3.5

4000

0.41-4.1

560

710

4.7×74

4.7

74

4

4500

0.35-4

630

849

4.8×74

4.8

74

4

5000

0.396-3.96

630

899

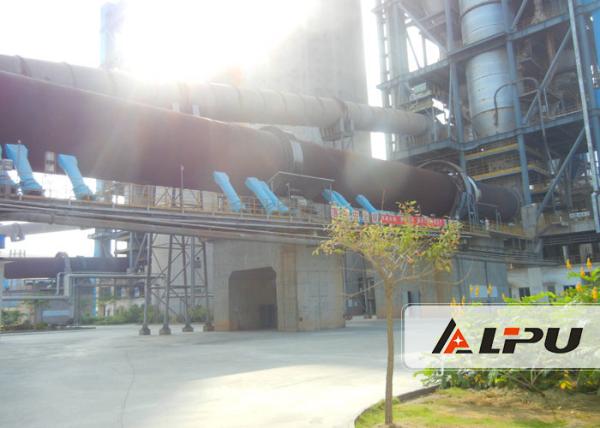

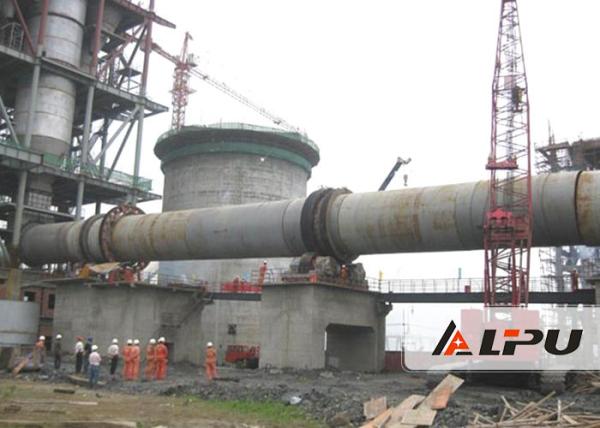

Customer Site:

Energy Saving Rotary Kiln Cement Plant for Cement Clinker Dry / Wet Process 37kw
