Cell Volume 4m³ Copper Ore Separation Flotation Machine With Long Service Life
Cell Volume 4m³ Copper Ore Separation Flotation Machine With Long Service Life
Cell Volume 4m³ Copper Ore Separation Flotation Machine With Long Service Life
Cell Volume 4m³ Copper Ore Separation Flotation Machine With Long Service Life
Specifications
Brand Name :
Lipu
Model Number :
SF4
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Flotation machine
Model :
SF4
Cell volume :
4m³
Impeller diameter :
650mm
Impeller speed :
235r/min
Capacity :
2-4m³/min
Main motor power :
15kw
Weight :
2.6t/cell
Condition :
New
Application :
Ore dressing plant
Description

Cell Volume 4m³ Copper Ore Separation Flotation Machine With Long Service Life

Application of Flotation Machine

Flotation machine is widely used for roughing, concentrating and counter-flotation of nonferrous metal that includes copper, lead, zinc, nickel and molybdenum, ferrous metal and nonmetallic mineral.

Advantages of Flotation Machine

1. With a light structure, it's easy to install the bearing body with a good perpendicularity.

2. Wear resistance, long service life and powerful agitating force.

3. U-shaped tank reduces the ore accumulated at the bottom of the tank.

4. With light main shaft parts and the stator installed at the bottom of the tank, it's easy to install them.

Working Principle of Flotation Machine

(1) After intensively mixed, the pulp and medicament are fed to the groove bottom of the first tank.

(2) When the impeller of the flotation machine begins to rotate, negative pressure is formed, making the air and pulps at the bottom and middle part of the tank enter the mixing zone. The pulp, air and medicament are then mixed in the mixing zone.

(3) As a result of the centrifugal force, the blended pulps are lead to the mineralization area. The air is in full contact with the coal particle and forms mineralized discharged by the scraping tool. Finally, clean coal foam is produced by this flotation machine.

(4) Coal particles that are not mineralized will be remixed, re-mineralized and re-separate through the recycle hole and the upper intake.

(5) The left pulp that are not sucked by the impeller enters into the third tank after going through the process of the first tank, thus, flotation machine runs in cycle and discharges ore pulp through the tailing box of the flotation machine.

Technical Parameters:

SF series Flotation Machine

Model

Cell volume(m³)

Impeller diameter

(mm)

Impeller speed

(r/min)

Capacity

(m³/min)

Main motor power

(kW)

Scraper motor power

(kW)

Weight

(t/cell)

SF0.37

0.37

300

442

0.2-0.4

1.5

1.1

0.4

SF0.7

0.7

350

400

0.3-1

3

1.1

0.9

SF1.2

1.2

450

312

0.6-1.2

5.5

1.1

1.4

SF2.8

2.8

550

268

1.5-3.5

11

1.1

2.2

SF4

4

650

235

2-4

15

1.5

2.6

SF8

8

760

191

4-8

30

1.5

4.3

SF16

16

850

190

5-16

45

1.5

7.4

BF series Flotation Machine

Model

Cell volume(m³)

Impeller diameter

(mm)

Impeller speed

(r/min)

Air inflow

(m³/m2.min)

Capacity

(m³/min)

Power

(kW)

Weight

(t/cell)

BF2.8

2.8

550

278

0.9-1.1

1.4-3

11

2.1

BF4

4

650

235

0.9-1.1

2.4-4

15

2.6

BF6

6

700

205

0.9-1.1

3-6

18.5

3.3

BF8

8

760

188

0.9-1.1

4-8

22

4.1

BF10

10

760

188

0.9-1.1

5-10

22

4.5

BF16

16

850

195

0.9-1.1

8-16

37

8.3

BF20

20

850

195

0.9-1.1

10-20

45

8.7

BF24

24

920

181

0.9-1.1

12-24

45

9

KYF series Inflatable Flotation Machine

Model

Cell volume(m³)

Impeller diameter

(mm)

Impeller speed

(r/min)

Air pressure of air blower

(kPa)

Max. Air inflow

(m3/m2.min)

Capacity

(m3/min)

Main motor power

(kW)

Scraper motor power

(kW)

Weight

(t/cell)

KYF1

1

340

281

≥12.6

2

0. 2-1

4

1. 1

0. 8

KYF2

2

410

247

≥14.7

2

0. 4-2

5. 5

1. 1

1. 5

KYF3

3

480

219

≥19.8

2

0. 6-3

7. 5

1. 5

1. 9

KYF4

4

550

200

≥19.8

2

1. 2-4

11

1. 5

2. 2

KYF8

8

630

175

≥21.6

2

3. 0-8

15

1. 5

4. 2

KYF16

16

740

160

≥25.5

2

4. 0-16

30

1. 5

6

KYF24

24

800

150

≥30.4

2

4. 0-24

30

1. 5

7. 5

KYF38

38

880

138

≥34.3

2

10-38

37

1. 5

10. 3

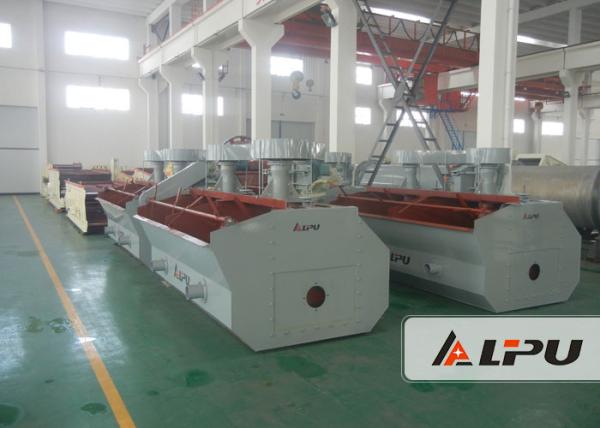

The Delivery Site of Flotation Machine:

Cell Volume 4m³ Copper Ore Separation Flotation Machine With Long Service Life
