Stainless Steel Agitation Leaching Tank / Agitator Effective Volume 11m³ Ore Dressing Plant
Stainless Steel Agitation Leaching Tank / Agitator Effective Volume 11m³ Ore Dressing Plant
Stainless Steel Agitation Leaching Tank / Agitator Effective Volume 11m³ Ore Dressing Plant
Stainless Steel Agitation Leaching Tank / Agitator Effective Volume 11m³ Ore Dressing Plant
Specifications
Brand Name :
Lipu
Model Number :
φ2.5×2.5
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Agitation Leaching Tank
Model :
φ2.5×2.5
Tank specifications :
2500×2500mm
Effective volume :
11m³
Impeller speed :
49r/min
Power :
2.2kw
Weight :
2.8
Condition :
New
Application :
Ore Beneficiation Industry
Color :
According to customer
Description

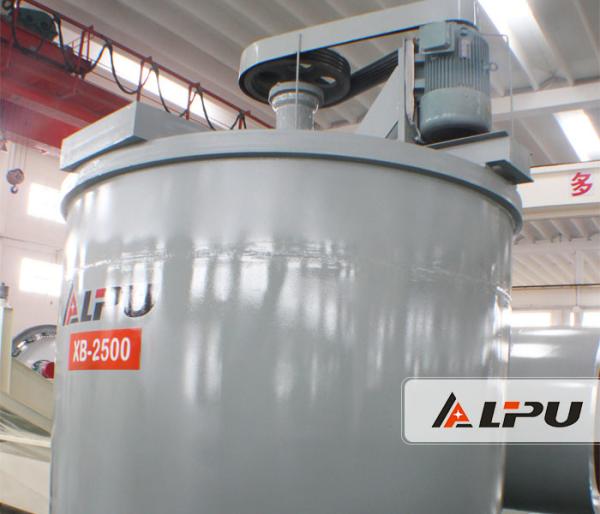

Stainless Steel Agitation Leaching Tank / Agitator Effective Volume 11m³

Description of Agitation tank:

Agitation Tank is the indispensable equipment to fully mix the reagent and the ore pulp, increase the reaction time of the reagent and strengthen the quality of the reagent reaction. This machine is suitable to be used in ore beneficiation industry and also for stirring the ingredients in all various industries.

Application of Agitation Tank

1. Suitable to all kinds of metal ore & nonmetal ore, especially for the mixing before the ore dressing. It can also be used for mixing of the other nonmetal material.

2. The using concentration cannot be greater than 30% ( by weight).

3. The particle size of the fixed component is less than 1mm.

Features and advantages of Agitator

1) Low wear and tear
2) Even mixing
3) Simple structure
4) Easy adjustment
5) Less power consumption
6) Strong agitating capacity
7) Reliable operation and easy maintenance

Technical Parameters:

Model

Tank specifications (mm)

Effective volume

(m3)

Impeller speed

(r/min)

Power (kW)

Weight

(t)

φ2.5×2.5

2500×2500

11

49

2.2

2.8

φ2.5×3.0

2500×3000

13

49

2.2

3.1

φ3.0×3.5

3000×3550

21

41

4

5.4

φ3.5×3.5

3550×3550

29

41

5.5

5.5

φ3.5×4.0

3550×4000

35

36

4

6.5

φ4.0×4.5

4000×4500

50

33.5

7.5

7.5

φ4.5×5.0

4500×5000

71.67

33.5

7.5

10.8

φ5.0×5.6

5000×5600

98

31

11

13.4

φ6.0×6.5

6000×6500

170

28

15

20.7

φ7.0×7.5

7000×7500

269

20.4

18.5

33

φ8.0×8.5

8000×8500

420

18.25

22

41

φ8.5×9.0

8500×9000

480

17

22

48.5

φ9.0×9.5

9000×9500

572

17

37

57

φ9.5×10.0

9500×10000

673

14

37

65

φ10×10.5

1000×10500

785

14

45

78

Customer Visit for Agitation Tank:
