CTB1224 Wet Drum Permanent Magnetic Separator for Ore Dressing Plant
Magnetic Separator Introduction:
CTB Series wet drum permanent magnetic separator is usually used for separating fine-grained iron magnetite from non-magnetic materials. Its composite magnetic system consists of high performance rare earth permanent magnet (main magnetic source) and ferrite permanent magnet. With a high magnetic field intensity, this machine can make a continuous row of ore feed and discharge. It also has enough working clearance and high processing capacity.
It is widely applied in the separation of various kinds of iron ores and gold ore. In order to increase the grade or capacity, several sets of wet drum magnetic separators can be installed in series connection or parallel connection.
Magnetic Separator Working Principle:
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailing.
Technical Parameters:

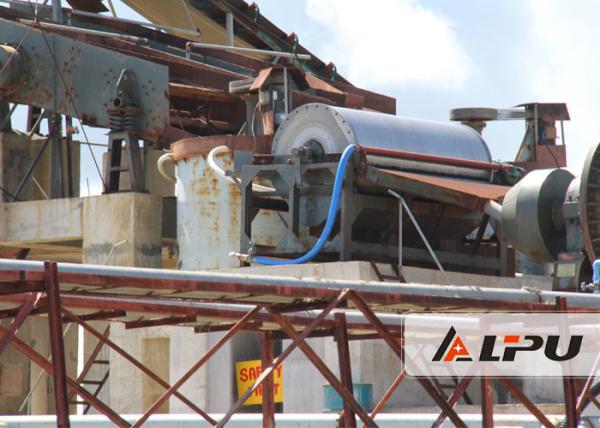

Working Site of Magnetic Separator :

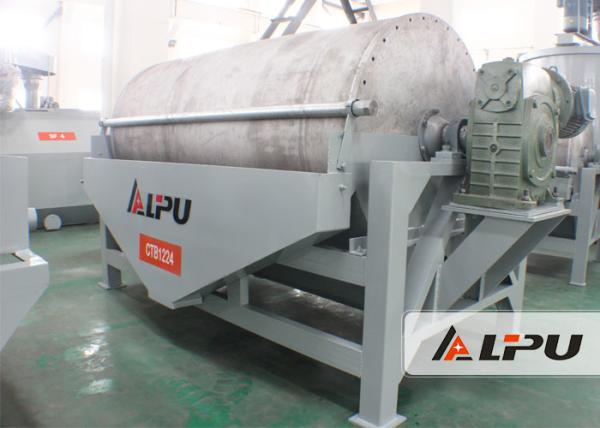

Product Picture Show:
