High Intensity Magnetic Separation Machine for Hematite Quartz Feldspar
High Intensity Magnetic Separation Machine for Hematite Quartz Feldspar
High Intensity Magnetic Separation Machine for Hematite Quartz Feldspar
High Intensity Magnetic Separation Machine for Hematite Quartz Feldspar
Specifications
Brand Name :
Lipu
Model Number :
CTB1224
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
High Intensity Magnetic Separation Machine
Model :
CTB1224
Shell diameter :
1200mm
Shell length :
2400mm
Capacity :
70-130t/h
Power :
7.5kw
Overall dimension :
3400×2030×1850mm
Condition :
New
Application :
Ore Dressing Plant
Weight :
6.4t
Description

High Intensity Magnetic Separation Machine for Hematite Quartz Feldspar​
Brief Introduction
The magnetic separator machine utilizes the combined force field of magnetism, pulsating fluid and gravity to continuously beneficiate fine weakly magnetic minerals. It is equipped with unique pulsating mechanism and possesses the advantages of large beneficiation ratio, high recovery, and a matrix that does not easily clog .
Application
Magnetic separator machine is suitable for processing fine, weakly magnetic minerals, such as hematite, limonite, ilmenite, manganese, wolframite, tantalum-niobium. It is also suitable for removing iron and titanium from non-metallic minerals such as quartz, feldspar, nepheline, fluorite, ceramic material, etc.
Mainly Features
1. Our machine uses vertical swivel rotation mode, So for each set of magnetic media, rinse ore concentrate direction is opposite with to the mine direction. Then Coarse particles can be washed out and don’t need to pass through the magnetic media heap, thereby preventing the clogging of the magnetic medium.
2. Our machine sets ore pulp pulsating bodies, driver ore pulp generated pulsatile flow forces. Under the effect of the pulsating flow forces, the mineral particles in the ore pulp is always in a loose state, which can improve the quality of magnetic concentrate.
3. Our machine uses special magnetic system structure and portfolio optimization magnetic media, so the ore size can up to 2mm, which simplifies field grading operations and can be used widely.
Technical Parameters:

Model

Shell diameter (mm)

Shell length (mm)

Capacity (t/h)

Power (kW)

Overall dimension

L×W×H(mm)

Weight (t)

CTB612

600

1200

10-20

1.1

2030×1200×1140

1.5

CTB618

600

1800

15-30

2.2

2630×1200×1140

1.8

CTB718

750

1800

20-45

3

2550×1460×1360

2.2

CTB918

900

1800

25-55

4

3050×1820×1700

2.9

CTB924

900

2400

35-70

4

3710×1820×1700

3.6

CTB1018

1050

1800

40-75

5.5

2800×1760×1750

4.3

CTB1024

1050

2400

60-120

5.5

3200×1760×1750

5.2

CTB1030

1050

3000

70-150

7.5

3950×1760×1750

6.3

CTB1218

1200

1800

60-110

5.5

2850×2030×1940

5

CTB1224

1200

2400

70-130

7.5

3400×2030×1850

6.4

CTB1230

1200

3000

80-160

7.5

4050×2030×1940

7.8

CTB1530

1500

3000

100-180

11

4230×2300×2350

9.2

CTB1540

1500

4000

115-220

11

5230×2300×2350

10.5

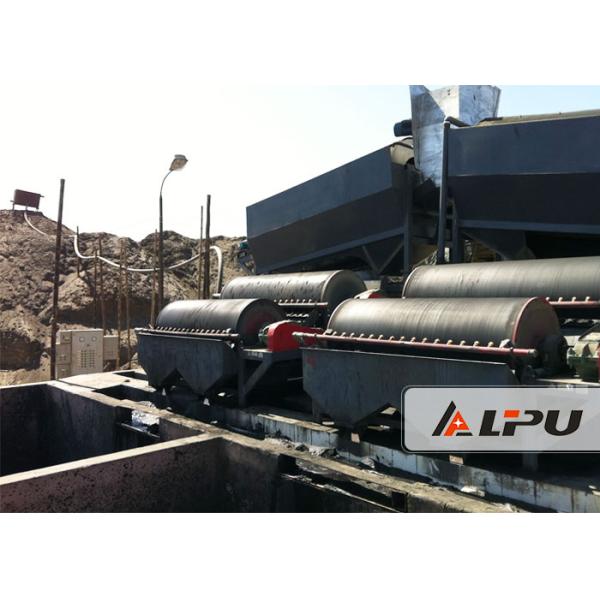

Working Site of Magnetic Separator :
High Intensity Magnetic Separation Machine for Hematite Quartz Feldspar
