40-140 t/h Stone Washing Machine , Sand Washing Plant for Silica Sand
40-140 t/h Stone Washing Machine , Sand Washing Plant for Silica Sand
40-140 t/h Stone Washing Machine , Sand Washing Plant for Silica Sand
40-140 t/h Stone Washing Machine , Sand Washing Plant for Silica Sand
Specifications
Brand Name :
LIPU
Model Number :
XSD2815
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days after receiving advanced payment
Packaging Details :
Standard container or as customers' requirements
Product Name :
Stone Washing Machine Sand Washing Plant
Model :
XSD2815
Max input size :
10mm
Capacity :
40-140t/h
Power :
11kw
Overall dimension :
3650×2660×3000mm
Weight :
4.5t
Application :
quarry, minerals, building materials, transportation, chemical industry
Color :
As customer's requirements
Condition :
New
Description

40-140 t/h Stone Washing Machine Sand Washing Plant for Silica Sand

Introduction of Sand Washing Machine

The silica sand washing machine of XSD series is a kind of cleaning equipment of international advance level for sand and slag pellets, developed on the basis of introducing foreign outstanding technology of the same kind of products. Silica sand washing machine is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on.

Features of Sand Washing Machine

1. The machine is with high efficiency, reasonable structure, high capacity, low consumption and easy maintenance.

2. Drive Bearing device is separated from water and materials, which is greatly to avoid the bearing damaged due to soaking, touching sand and other pollutants.

3. Compared with the spiral sand washing machine, the loss of medium and fine sand as well as powder is minimal, so the grade and fineness modulus of washed building sand can meet the required standard.

Working Principle of Sand Washing Machine

Silica sand washing machine drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.

Technical parameters:

Model

Max input size (mm)

Capacity (t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight

(t)

XSD2215

10

25-95

5.5

2950×2530×2310

2.7

XSD2415

10

30-105

7.5

3200×2570×2530

3.4

XSD2615

10

35-120

7.5

3450×2570×2750

3.9

XSD2815

10

40-140

11

3650×2660×3000

4.5

XSD3015

10

50-160

11

3880×2660×3250

5.2

Note: No further notice if the technical parameters change .

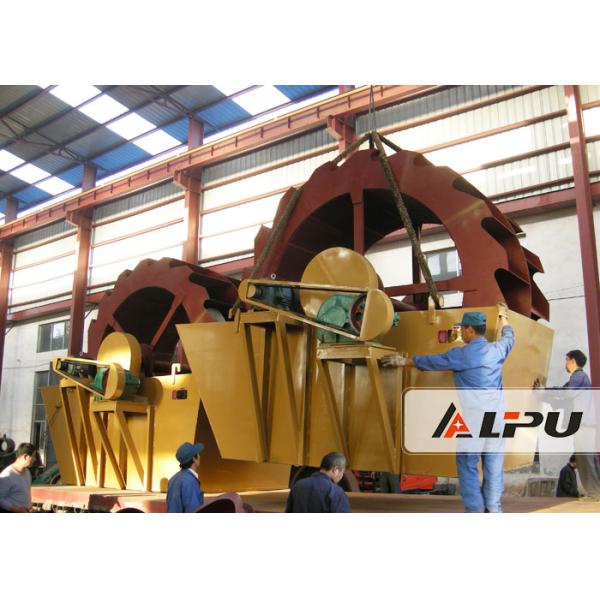

Product Picture Show:

40-140 t/h Stone Washing Machine , Sand Washing Plant for Silica Sand
