Stable Running Conveyor Belt Systems Mining for Limestone Calcite Dolomite Barite
Stable Running Conveyor Belt Systems Mining for Limestone Calcite Dolomite Barite
Stable Running Conveyor Belt Systems Mining for Limestone Calcite Dolomite Barite
Stable Running Conveyor Belt Systems Mining for Limestone Calcite Dolomite Barite
Specifications
Brand Name :
LIPU
Model Number :
1200
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Belt Conveying Systems
Model :
1200
Capacity :
290-480 t/h
Application :
limestone, calcite, dolomite, barite, talc, calcium carbonate
Color :
As customer's requirements
Quality :
High reputation
Condition :
New
Description

Stable Running Belt Conveying Systems for Limestone Calcite Dolomite Barite

Brief Description of Belt Conveyor:

In industrial production, belt conveyor is the link between the production equipment, to ensure the continuity of production and automation. In the crushing industry, belt conveyor is widely used to transport loose materials or components. Suitable for all kinds of hard and soft minerals, such as limestone, calcite, dolomite, barite, talc, calcium carbonate, gypsum, bentonite, glass.

Structure of Belt Conveyor:

A Belt Conveyors consists of a body of a metal frame with pulleys at either end and bed of rollers in between. Belt is looped around each pulley. When one of the belt is powered by electrical motor, the belting slides across the rollers there by moving the product on the top of the belt. We have technical capabilities to design, manufacture and commission belt conveyors with various bulk densities, moistures, atmospheric conditions and corrosive properties. We manufacture belt conveyors with capacities up to 200TPH.

Advantages of Belt Conveyor:

1. Stable running, low noise and long service life;

2. Thread rod type take-up (tensioner) can be fitted at the tail so as to meet various conveying requirements;

3. Flexible for multi-point feeding and discharging;

4. Equipped with an alarming device for material blockage;

5. Devices for speed loss and chain breakage protection are optional.

Technical Parameters:

Belt width (mm)

Length (m) / Power (kW)

Capacity (t/h)

650

≤12/4

12-20/4-5.5

20-30/5.5-11

80-120

800

≤10/4

10-15/4-5.5

15-30/5.5-15

120-200

1000

≤10/5.5

10-20/5.5-11

20-40/11-22

200-320

1200

≤10/7.5

10-20/7.5-15

20-40/15-30

290-480

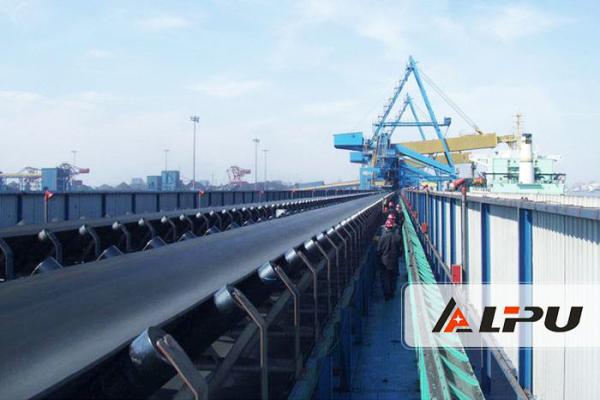

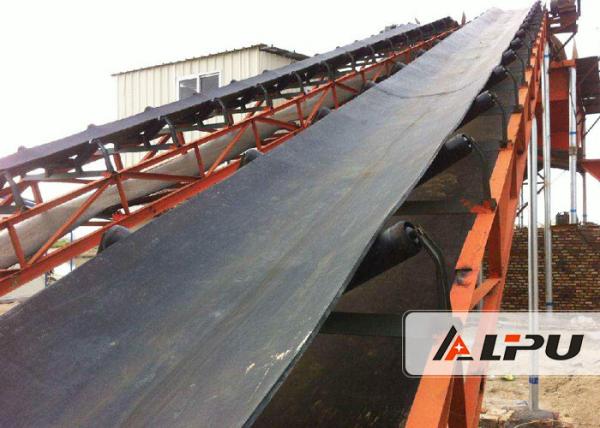

Working Site of Belt Conveyor System:

Stable Running Conveyor Belt Systems Mining for Limestone Calcite Dolomite Barite
