3YK1860 High Screening Efficiency Vibrating Screening Machine in Mine Industry
3YK1860 High Screening Efficiency Vibrating Screening Machine in Mine Industry
3YK1860 High Screening Efficiency Vibrating Screening Machine in Mine Industry
3YK1860 High Screening Efficiency Vibrating Screening Machine in Mine Industry
Specifications
Brand Name :
LIPU
Model Number :
3YK1860
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Vibrating Screen Machine
Model :
3YK1860
Layer :
3
Dual Amplitude :
6-10 mm
Vibrating Frequency :
970 r/min
Capacity :
56-450 t/h
Power :
22 kw
Weight :
7 t
Application :
mines industry, coal industry, metallurgy, building materials
Color :
As customer's requirments
Quality :
High reputation
Description

3YK1860 High Screening Efficiency Vibrating Screen Machine in Mine Industry

Vibrating Screen Machine Introduction:

Vibrating screen machine is widely used in mines industry, coal industry, metallurgy, building materials, refractory materials, light industry, chemical industry, etc.

It is driven by two vibrating motors. When the two vibrating motors conduct synchronized contrarotation, the vibrating force generated by the eccentric blocks will be canceled out in the parallel direction to the electric motor axis, and be piled up to be a resultant force in the perpendicular direction so that the movement trail of the screen machine is a straight line. The relative screen surface of the two motor shafts has an inclination. Under the resultant force of the vibrating force and the self-gravity, the materials will be threw up and moved along a straight line on the screen surface. Then, we can conduct dry-wet screening, dewatering, sculping and desliming for the medium and light weight materials.

Vibrating Screen Machine Features:

1. Simple and reasonable structure, high-efficient screening, low noise and energy consumption, convenient maintenance.

2. Unique structure design makes screen mesh exchange easier and quicker.

Technical Parameters:

Model

Layer

Dual Amplitude

(mm)

Vibrating Frequency

(r/min)

Capacity

(t/h)

Power

(kW)

Overall Dimension

L×W×H (mm)

Weight

(t)

3YK1860

3

6-10

970

56-450

22

6990×2440×1760

7

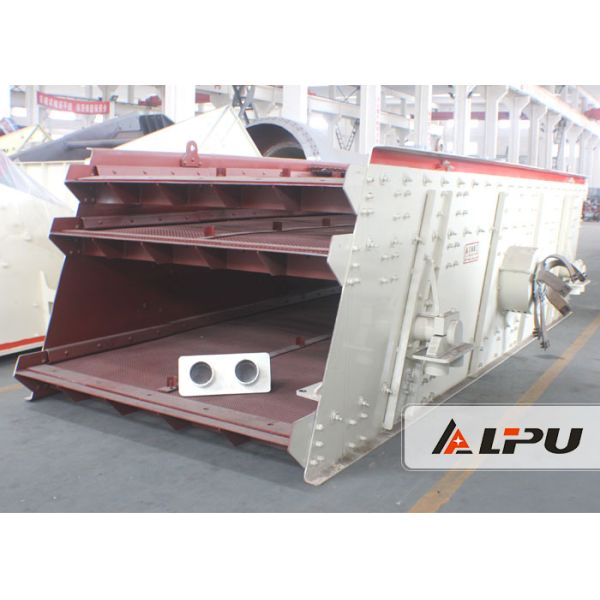

Product Picture Show:

3YK1860 High Screening Efficiency Vibrating Screening Machine in Mine Industry
