Basalt Pebble Granite Stone Crusher Plant , Rock Crushing Equipment 250 t/h
Basalt Pebble Granite Stone Crusher Plant , Rock Crushing Equipment 250 t/h
Basalt Pebble Granite Stone Crusher Plant , Rock Crushing Equipment 250 t/h
Basalt Pebble Granite Stone Crusher Plant , Rock Crushing Equipment 250 t/h
Specifications
Brand Name :
Lipu
Model Number :
According to customer
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Granite Stone Crusher Plant
Capacity :
250t/h
Feeding equipment :
GZD1149
Crushing Equipment :
PF1214/2
Classification and screening equipment :
3YK2160
Belt Conveyor :
200m
Installed power :
400kw
Application :
limestone, granite, basalt, gravel, metallurgic slag
Condition :
new
Color :
According to customer
Description

Basalt Pebble Granite Stone Crusher Plant , Rock Crushing Equipment 250 t/h

Process of Stone Crushing Plant

1. Vibrating feeder, two types of GZD and ZSW to meet user’s different processing capacity.

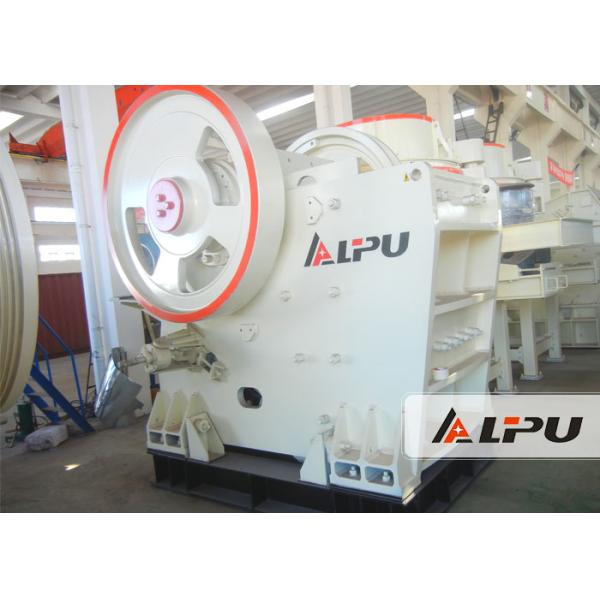

2. First crushing: Jaw crusher, or Impact crusher, or cone crusher to meet user’s choice.

3. Secondary crushing: fine jaw crusher, or impact crusher, or cone crusher(spring type, spring and hydraulic type, hydraulic type)

4. Vibrating screen, YK series, linear series, DF series.

5. Belt conveyor, stationary type, or mobile type.

6. Steel structures, such as feed-in and discharge hoppers, stairways, guardrails, maintenance board, steel channel.

7. Electric control cabinet .

8. Diesel power generation set for choosing.

Application of Stone Crushing Plant

Lipu provides a complete line of stone production; the output is widely used in road, bridge, house, high building, railway, highway, water project as the type of construction material, such as aggregate, foundation stone.

Advantages of Stone Crushing Plant

1. Complete stone production line, near to turn-key project.

2. Stationary type or mobile type for choosing.

3. First class workmanship.

4. Reliable quality with CE approved, reaching to European standard.

5. Updating in design and function year by year, forms our own unique design by considering of saving more cost and improve the processing capacity for user’s consideration.

6. Invention technical patent kept.

Technical Data:

Processing

(t/h)

 Major equipment type, size, number
Feeding equipment

Crushing

equipment

Crushing

equipment

Classification and screening

equipment

 Belt Conveyor(m) Installed power(kw)
30 GZD8030 PE400×600 PF1008 2YK1235 60-90 120
50 GZD8530 PE400×600 PF1008 3YK1235 100-130 140
80 GZD9636 PE500×750 PF1010 3YK1545 130-160 200
100 GZD9638 PE600×900 PF1210 3YK1545 140-180 280
150 GZD1142 PE750×1060 PF1214 3YK1854 200-240 300
200 GZD1142 PE750×1060 PF1315 3YK1860 200 350
250 GZD1149 PE750×1060 PF1214/2 3YK2160 200 400
300 GZD1249 PE900×1200 PF1315/2 3YK2160 250 450
350 GZD1349 PE1000×1200 PF1315/2 3YK2460 250 500
450 GZD1349 PE1000×1200 PF1315/2 PF1214 3YK2160/2 350 600

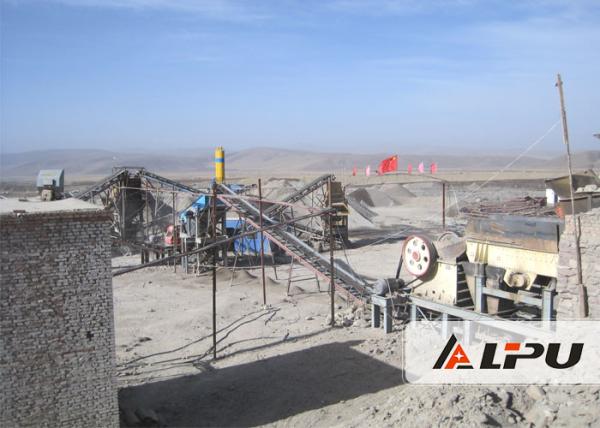

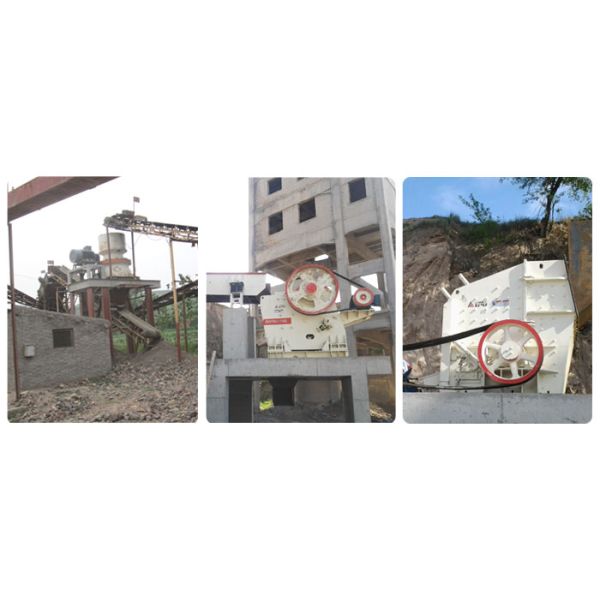

Stone Crushing Plant Customer Site:

Basalt Pebble Granite Stone Crusher Plant , Rock Crushing Equipment 250 t/h

Basalt Pebble Granite Stone Crusher Plant , Rock Crushing Equipment 250 t/h
