200 tph Stone Crushing Plant for Aggregate & Sand Making , Mobile Stone Crusher
200 tph Stone Crushing Plant for Aggregate & Sand Making , Mobile Stone Crusher
200 tph Stone Crushing Plant for Aggregate & Sand Making , Mobile Stone Crusher
200 tph Stone Crushing Plant for Aggregate & Sand Making , Mobile Stone Crusher
Specifications
Brand Name :
Lipu
Model Number :
According to customer
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Stone Production Line
Capacity :
200t/h
Feeding equipment :
GZD1142
Crushing Equipment :
PE750×1060
Classification and screening equipment :
3YK1860
Belt Conveyor :
200m
Installed power :
350kw
Application :
quartz, limestone, granite, basalt, marble, smelting slag
Condition :
new
Color :
According to customer
Description

200 tph Crusher Plant Stone Production Line for Aggregate & Sand Making

Introduction of Stone Crushing Line:

Stone production line can be used for hard limestone, granite, smelting slag, etc for the application of hydropower, building materials, highway, city construction and other industries. According to different process requirements, various types of equipment are combined to meet the different requirements of customers.

Stone production line is composed of feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor.

Main Features of Stone Crushing Line:

1. Cubic shape of final product with excellent quality.

2. It is suitable for grinding granite, basalt, bank gravel, bauxite, cement clinker, quartz silicon carbide, sand and iron ore.

3. The content of mud and powder can be controlled.

4. Heavy duty design, high productivity, cost effective, long service, high crushing ratio.

5. Simple structure, low operation cost, durable high screening efficiency.

Process of Stone Crushing Line:

Raw materials are sent into the elementary-crushing machine -jaw crusher through the vibrating feeder. The coarsely crushed products are then conveyed by belt conveyor to the impact crusher for secondary crushing. When this is done, the vibrating screen separates the stones according to their different sizes. Unqualified products are sent back to impact crusher for further crushing.

Technical Data:

Processing

(t/h)

 Major equipment type, size, number
Feeding equipment

Crushing

equipment

Crushing

equipment

Classification and screening

equipment

 Belt Conveyor(m) Installed power(kw)
30 GZD8030 PE400×600 PF1008 2YK1235 60-90 120
50 GZD8530 PE400×600 PF1008 3YK1235 100-130 140
80 GZD9636 PE500×750 PF1010 3YK1545 130-160 200
100 GZD9638 PE600×900 PF1210 3YK1545 140-180 280
150 GZD1142 PE750×1060 PF1214 3YK1854 200-240 300
200 GZD1142 PE750×1060 PF1315 3YK1860 200 350
250 GZD1149 PE750×1060 PF1214/2 3YK2160 200 400
300 GZD1249 PE900×1200 PF1315/2 3YK2160 250 450
350 GZD1349 PE1000×1200 PF1315/2 3YK2460 250 500
450 GZD1349 PE1000×1200 PF1315/2 PF1214 3YK2160/2 350 600

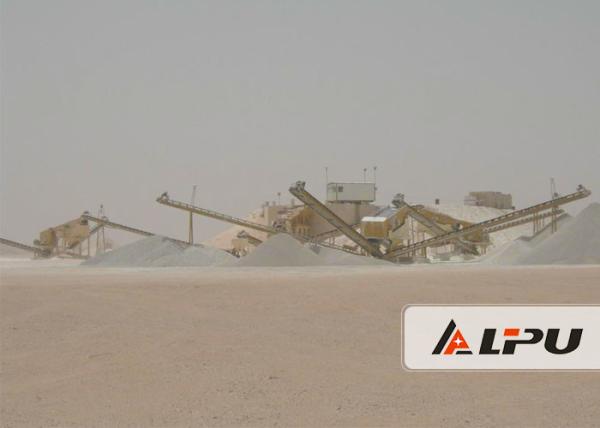

Stone Crushing Plant Customer Site:

200 tph Stone Crushing Plant for Aggregate & Sand Making , Mobile Stone Crusher
