50 - 500 t/h Granite Crusher Stone Crusher Plant For Highway Construction
50 - 500 t/h Granite Crusher Stone Crusher Plant For Highway Construction
50 - 500 t/h Granite Crusher Stone Crusher Plant For Highway Construction
50 - 500 t/h Granite Crusher Stone Crusher Plant For Highway Construction
Specifications
Brand Name :
Lipu
Model Number :
According to customer
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Stone Crushing Plant
Capacity :
450t/h
Feeding equipment :
GZD1349
Crushing Equipment :
PE1000×1200
Classification and screening equipment :
3YK2160/2
Belt Conveyor :
350m
Installed power :
600kw
Application :
hard limestone, granite, basalt, cobble, slag
Condition :
new
Color :
According to customer
Description

50 - 500 t/h Granite Crusher Stone Crushing Plant For Highway Construction

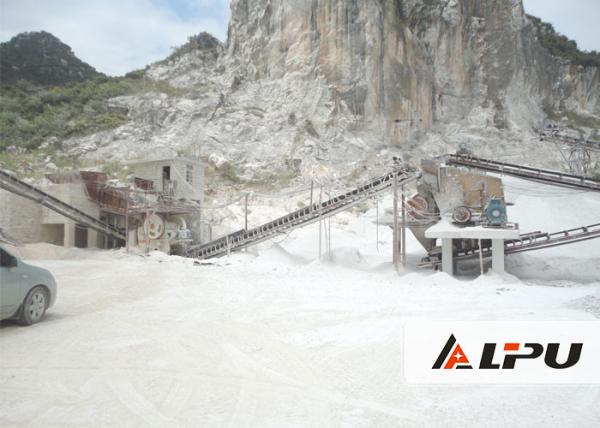

Introduction of Stone Crushing Plant

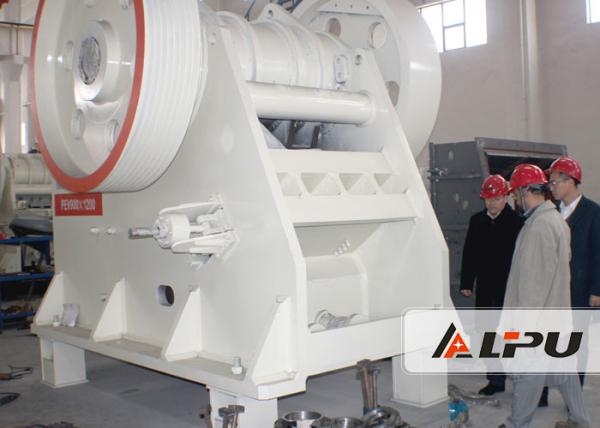

Stone crushing plant is mainly composed of vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor and electric control panel. Its capacity is customized from 50-500t/h. It applies to crushing hard limestone, granite, basalt, cobble, slag and other aggregates or stones. It is widely used in hydroelectric, building, building materials, highway, city construction, etc.

The specific equipment may be changed according to the materials, capacity and customers’ other requests. Our company can design the flowing chart and supply technical support throughout the course against customers’ work site. Non-standard components also can be supplied.

Working Principle of Stone Crushing Plant:

Big stones blasted from mountain are fed into jaw crusher evenly through vibrating feeder for primary crushing, coarsely crushed materials will be transferred to impact crusher by belt conveyor for secondary crushing. After secondary crushing, the crushed stones will be sent to vibrating screen for separating to get different sizes final products. After separating, the parts that can meet standard will be transferred away as final products, while the other parts will be returned to impact crusher for further crushing, thus forming a closed circuit.

Technical Data:

Processing

(t/h)

 Major equipment type, size, number
Feeding equipment

Crushing

equipment

Crushing

equipment

Classification and screening

equipment

 Belt Conveyor(m) Installed power(kw)
30 GZD8030 PE400×600 PF1008 2YK1235 60-90 120
50 GZD8530 PE400×600 PF1008 3YK1235 100-130 140
80 GZD9636 PE500×750 PF1010 3YK1545 130-160 200
100 GZD9638 PE600×900 PF1210 3YK1545 140-180 280
150 GZD1142 PE750×1060 PF1214 3YK1854 200-240 300
200 GZD1142 PE750×1060 PF1315 3YK1860 200 350
250 GZD1149 PE750×1060 PF1214/2 3YK2160 200 400
300 GZD1249 PE900×1200 PF1315/2 3YK2160 250 450
350 GZD1349 PE1000×1200 PF1315/2 3YK2460 250 500
450 GZD1349 PE1000×1200 PF1315/2 PF1214 3YK2160/2 350 600

Related Product:

50 - 500 t/h Granite Crusher Stone Crusher Plant For Highway Construction
