16-29 t/h Low Operating Cost Cement Ball Mill In Cement Plant / Ball Mill For Cement Grinding
16-29 t/h Low Operating Cost Cement Ball Mill In Cement Plant / Ball Mill For Cement Grinding
16-29 t/h Low Operating Cost Cement Ball Mill In Cement Plant / Ball Mill For Cement Grinding
16-29 t/h Low Operating Cost Cement Ball Mill In Cement Plant / Ball Mill For Cement Grinding
Specifications
Brand Name :
Lipu
Model Number :
2200×7500
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Cement Ball Mill
Model :
2200×7500
Capacity :
16-29t/h
Weight :
56t
Power :
380kw
Application :
coal, pigments, and feldspar for pottery
Rotating speed :
21r/min
Weight of ball :
33t
Feeding size :
≤25mm
Discharging Size :
0.075-0.4mm
Description

16-29 t/h Low Operating Cost Cement Raw Mill in Cement Grinding Plant
Introduction of Cement Raw Mill
Cement Ball Mill consists of a hollow cylindrical shell about its axis. The axis of the shell may be either horizontal or at a small angle to the horizontal. It is partially filled with balls. The grinding media is the balls, which may be made of steel, stainless steel, ceramic, or rubber. The inner surface of the cylindrical shell is usually lined with an abrasion-resistant material such as manganese steel or rubber. Less wear takes place in rubber lined mills. The length of the mill is approximately equal to this diameter.
Application of Cement Raw Mill
The cement ball mill is used for grinding materials such as coal, pigments, and feldspar for pottery. Grinding process can be carried out either in wet or dry way but the former is performed at low speed.
Features of Cement Raw Mill
(1). Ball mill is easy maintenance and operation;
(2). Big crushing ratio, uniform end product size;
(3). Simple structure;
(4). Low operating cost.
Technical Data:

Model

Rotating speed

(r/min)

Weight

of ball

(t)

Feeding size

(mm)

 Discharging size (mm)

Capacity

(t/h)

Power

(Kw)

Weight

(t)
2200×7500 21 33 ≤25 0.075-0.4 16-29 380 56

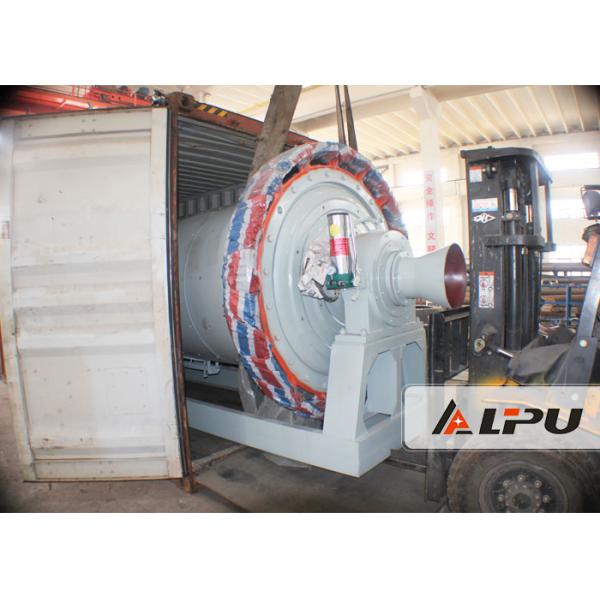

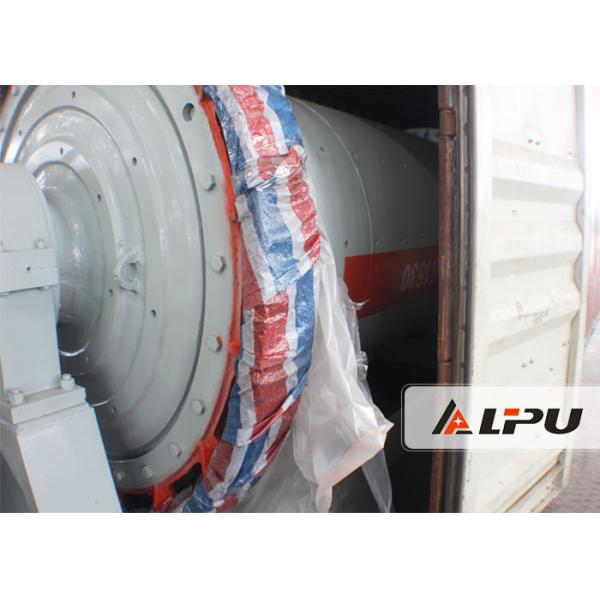

Cement Ball Mill Shipped to Russia:
16-29 t/h Low Operating Cost Cement Ball Mill In Cement Plant / Ball Mill For Cement Grinding

16-29 t/h Low Operating Cost Cement Ball Mill In Cement Plant / Ball Mill For Cement Grinding
