High Speed Mining Ball Mill / Grinding Ball Mill for Gold Copper Zinc Iron Ore
High Speed Mining Ball Mill / Grinding Ball Mill for Gold Copper Zinc Iron Ore
High Speed Mining Ball Mill / Grinding Ball Mill for Gold Copper Zinc Iron Ore
High Speed Mining Ball Mill / Grinding Ball Mill for Gold Copper Zinc Iron Ore
Specifications
Brand Name :
Lipu
Model Number :
1200×4500
Certification :
ISO9001-2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
High Speed Mining Ball Mill
Model :
1200×4500
Effective volume :
4.4m³
Capacity :
4-7.5t/h
Power :
55kw
Rotary speed :
35rpm
Weight :
14t
Max. steel ball load :
6.2t
Condition :
New
Application :
gold ore, copper ore, iron ore and zinc ore
Description

High Speed Mining Ball Mill / Grinding Ball Mill for Gold Copper Zinc Iron Ore

Introduction of Ball Milling Machine

Ball Mill is essential and widely used equipment for raw material crushing. The raw material can be used for many mineral grinding, such as gold ore, copper ore, iron ore and zinc ore.

Features of Ball Milling Machine

1. Large application range, simple structure and convenient maintenance;
2. Large capacity and continuous work;
3. Various barrel lining and grinding media, excellent corrosion resistance;
4. Installation and adjustment are very convenient and easy to operate.

Working Principle of Ball Milling Machine

Its main component is a cylinder with bigger diameter and smaller length which is revolved by transmitting machinery. Materials are put in cylinder through feed opening and then thoroughly grinded. The falling course of iron balls and ores can produce huge falling impact and autogenously grinding. The continuous feeding of ores can create considerable to make ores move from feeding opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. Acceptable ore particles are carried away by water in wet mill, or by air in dry mill.

Technical Data:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kW)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ1200×4500 4.4 6.2 7.7 9.3 4-7.5 8.1-15 9.3-17 55 35 14

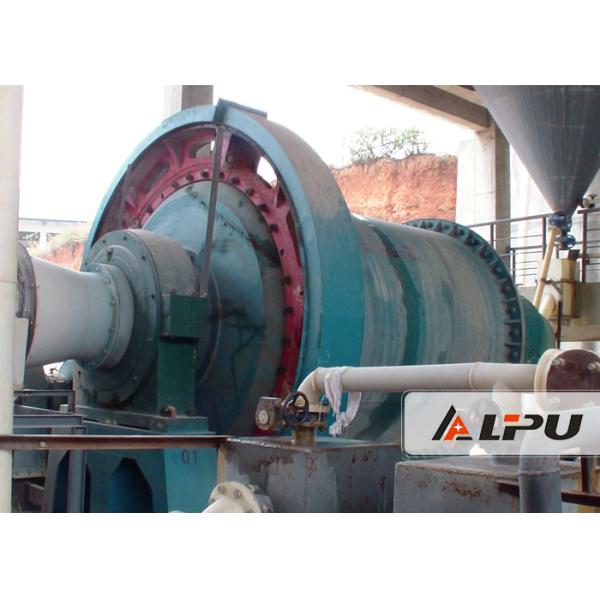

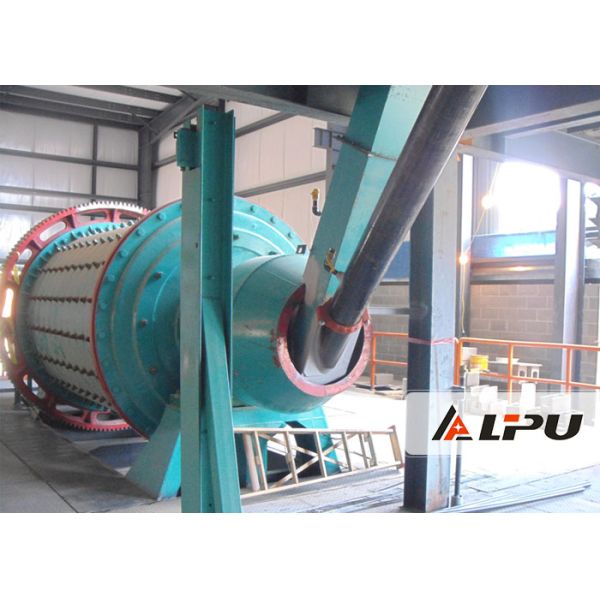

Quartz Ball Mill Working Site:

High Speed Mining Ball Mill / Grinding Ball Mill for Gold Copper Zinc Iron Ore

High Speed Mining Ball Mill / Grinding Ball Mill for Gold Copper Zinc Iron Ore
