Large Capacity Ore Cement Silicate Vibratory Ball Mill in Mining 110t
Large Capacity Ore Cement Silicate Vibratory Ball Mill in Mining 110t
Large Capacity Ore Cement Silicate Vibratory Ball Mill in Mining 110t
Large Capacity Ore Cement Silicate Vibratory Ball Mill in Mining 110t
Specifications
Brand Name :
Lipu
Model Number :
2700×7000
Certification :
ISO9001-2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Ore Cement Silicate Vibratory Ball Mill
Model :
2700×7000
Effective volume :
36.6m³
Capacity :
33-62t/h
Power :
630kw
Rotary speed :
20.6rpm
Weight :
110t
Max. steel ball load :
51t
Condition :
New
Application :
Ore, slag, stone, silicate product, chemical fertilizer
Description

Large Capacity Ore Cement Silicate Vibratory Ball Mill in Mining 110t

Introduction of Vibratory Ball Mill

Ball Mill has dry and wet ways. When wet Ball Mill works, certain water and other liquid will be added into materials to increase flowability of materials, so the capacity is increased. When dry Ball Mill works, capacity is affected because material flowability is reduced, so absorbing wind device is needed on the outlet of Ball Mill, and then negative pressure is formed in the Ball Mill to increase flowability of material, so the capacity is increased.

Application of Vibratory Ball Mill

Ore, slag, stone, silicate product, chemical fertilizer, ferrous and non-ferrous metals, glass, ceramic, etc.

Features of Vibratory Ball Mill

1. Large application range, simple structure and convenient maintenance;
2. Large capacity and continuous work;
3. Various barrel lining and grinding media, excellent corrosion resistance;
4. Installation and adjustment are very convenient and easy to operate.

Technical Data:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kW)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ2700×7000 36.6 51 64 77 33-62 67-124 77-143 630 20.6 110

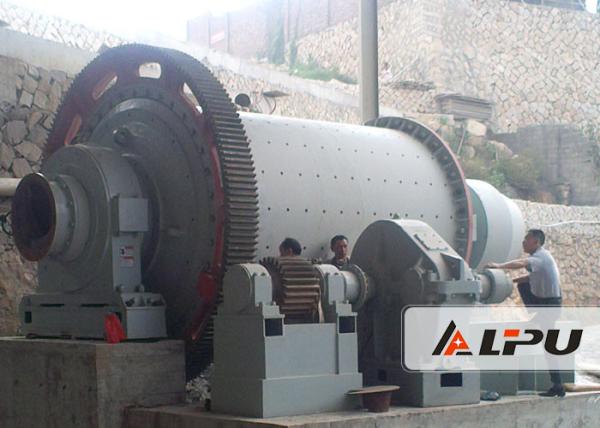

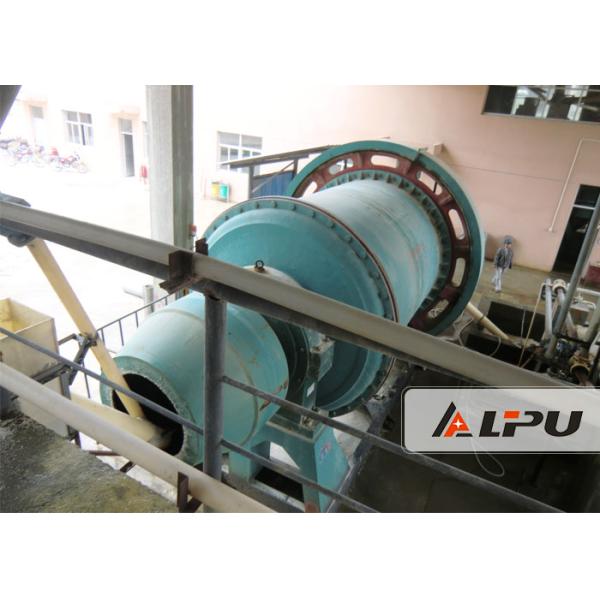

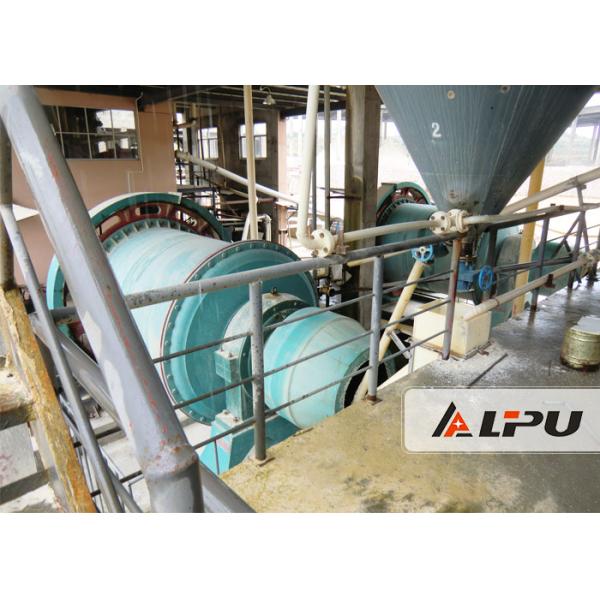

Quartz Ball Mill Working Site:

Large Capacity Ore Cement Silicate Vibratory Ball Mill in Mining 110t

Large Capacity Ore Cement Silicate Vibratory Ball Mill in Mining 110t
