1200×1400 Industrial Grinding Mill Batch Type Ball Mill With Dry / Wet Grinding
1200×1400 Industrial Grinding Mill Batch Type Ball Mill With Dry / Wet Grinding
1200×1400 Industrial Grinding Mill Batch Type Ball Mill With Dry / Wet Grinding
1200×1400 Industrial Grinding Mill Batch Type Ball Mill With Dry / Wet Grinding
Specifications
Brand Name :
Lipu
Model Number :
1200×1400
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Industrial Grinding Mill Batch Type Ball Mill
Model :
1200×1400
Color :
According to customer
Condition :
New
Application :
feldspar, quartz, clay, ore, etc
Effective volume :
1.58m³
Rotary speed :
34r/min
Once feeding quantity :
0.5t
power :
4kw
Weight /without liner :
2.5t
Description

1200×1400 Industrial Grinding Mill Batch Type Ball Mill With Dry / Wet Grinding

Introduction

Ceramic ball mill is also called intermittence ball mill or batch ball mill, with drying work and wet working by batch. It is used for fine grinding of feldspar, quartz, clay, ore, etc.

Ceramic ball mill is mainly used for mixing, milling of the materials. It cost less energy but with high fineness product. It has two types, wet mills and dry mills. The machine could use different lining board according to product requirement to satisfy different customers requirement. The milling fineness depends on the milling time. The motor is started by the coupling which can reduce voltage and lower the starting electricity. The structure is divided into integral type and freestanding type.

Structure

Ball mill is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electric motor and electronic control.

Features

1. Low price and energy consumption.

2. Simple structure and convenient maintenance.

3. Easy installation and adjustment.

4. Various models of liners and types of medium for selection according to specific gravity and hardness of materials.

Technical Data:

Model Effective volume(m³) Rotary speed(r/min) Once feeding quantity(t) Power(kw) Weight /without liner(t)
φ600×840 0.23 55 0.1 1.5 1.35
φ800×940 0.47 40 0.2 2.2 1.42
φ950×1020 0.72 34 0.3 3 1.5
φ1200×1400 1.58 34 0.5 4 2.5
φ1450×1760 2.91 26.5 1 11 3.5
φ1800×2100 5.3 23 1.5 15 4.5
φ2000×2300 7.2 16 2 22 5.9
φ2240×2600 10 18.7 3 30 7.4
φ2450×2800 13 16 4 37 9.5
φ2700×2900 16.6 16 5 37 10.5
φ2800×3100 19 15 6 45 12.4
φ2850×4000 25.5 14 8 55 16
φ3000×4650 32.5 16 14 90 20.8
φ3200×4650 37.5 16 18 90 23
φ3400×4650 43 12.5 23 90 25
φ3400×6300 57 12.5 30 110 30
φ3600×6300 64 11.8 36 110 32
φ3600×6500 66 11.8 38 110 32
φ3600×6700 68 11.8 40 132 35
φ3600×7170 68 11.8 40 110 35
φ4000×7860 99 10 60 185 48
φ4100×11200 147 10 100 315 73

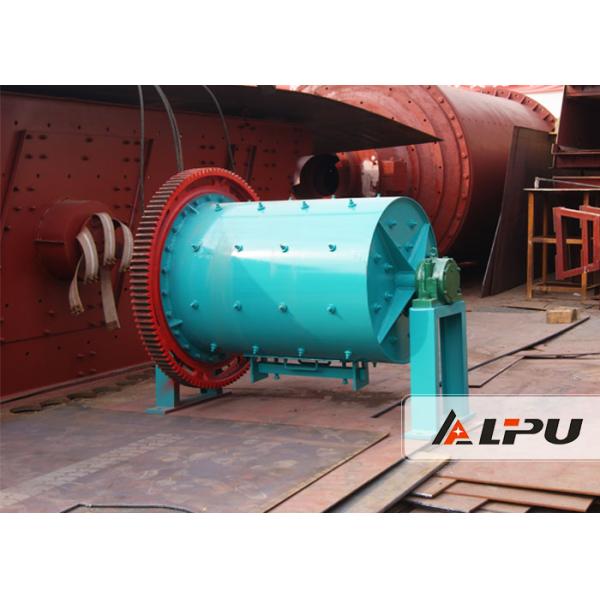

Product Picture Show:

1200×1400 Industrial Grinding Mill Batch Type Ball Mill With Dry / Wet Grinding
