More Convenient Mobile Crushing Plant , Portable Cone Crusher Machine
More Convenient Mobile Crushing Plant , Portable Cone Crusher Machine
More Convenient Mobile Crushing Plant , Portable Cone Crusher Machine
More Convenient Mobile Crushing Plant , Portable Cone Crusher Machine
Specifications
Brand Name :
Lipu
Model Number :
YG0830E4060-3S1548F1010
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Mobile Cone Crushing Plant Portable Cone Crusher
Model :
YG0830E4060-3S1548F1010
Feeder Model :
GZD0830
Primary Crusher Model :
PEV400×600
Secondary Crusher Model :
PFW1010-Ⅲ
Vibrating Screen Model :
3YK1548
Tyre Parameters :
Double- axle
Return Belt Conveyor Model :
B500×14m
Receiving Belt Conveyor Model :
B500×10m
Left Belt Conveyor Model :
B500×8m
Right Belt Conveyor Model :
B500×8m
Belt Conveyor Under the Screen Model :
B500×8m
Weight :
41t
Application :
pebble, limestone, granite, basalt, aluminum, andesite
Description

More Convenient Mobile Cone Crushing Plant , Portable Cone Crusher

Introduction of Mobile Cone Crushing Plant:

Mobile crushing plant is the latest crusher developed by our company with the world’s advanced technology. The device has high performance, high reliability, attractive appearance, etc. It’s widely used in road and bridge construction, urban construction, metallurgy, energy and other sectors for crushing, screening and other operations.

Advantage of Mobile Cone Crushing Plant

1. Integrated installation, strong overall coordination, reasonable and compact layout, saves time and space for on-site construction and increases flexibility, eliminating a large number of site infrastructure, greatly reducing the investment costs.

2. Higher vehicle chassis, the body width is less than the semitrailer, small turning radius, ease of driving rugged harsh road environment in crushing area, more conducive to enter the construction area.

3. Cone crusher is with many functions, which can not only work as fine crusher, but also can produce sand and gravel materials with small or medium granularity, reducing the transportation costs of materials. In addition, the mobile crusher also can directly move the crushed materials into the wagon bucket, to facilitate the timely transportation.

Model and Specification:

Model

YG0830E4060-3S1548F1010

YG0830E5075-3S1848F1210

YG0830E4060-3S1548E25120

YG0830E5075-3S1848Y100

Feeder Model

GZD0830

GZD0830

GZD0830

GZD0830

Primary Crusher Model

PEV400×600

PEV500×750

PEV400×600

PEV500×750

Secondary Crusher Model

PFW1010-Ⅲ

PFW1210-Ⅲ

PEV250×1200

PYG100

Vibrating Screen Model

3YK1548

3YK1848

3YK1548

3YK1848

Tyre Parameters

Double- axle

Triplex-axle

Double- axle

Triplex-axle

Return Belt Conveyor Model

B500×14m

B650×16m

B500×14m

B650×16m

Receiving Belt Conveyor Model

B500×10m

B650×12m

B500×10m

B650×12m

Left Belt Conveyor Model

B500×8m

B500×8m

B500×8m

B500×8m

Right Belt Conveyor Model

B500×8m

B500×8m

B500×8m

B500×8m

Belt Conveyor Under the Screen Model

B500×8m

B500×8m

B500×8m

B500×8m

Transport length(mm)

14500

17200

14500

17200

Transport Width(mm)

3000

3000

3000

3000

Transport Height (mm)

4200

4800

4200

4800

Weight(t)

41

58

37

54

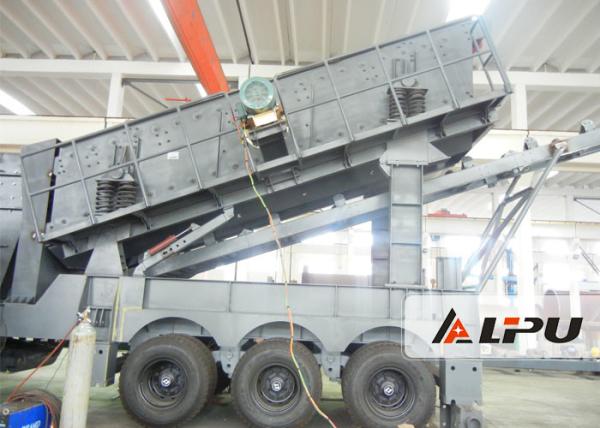

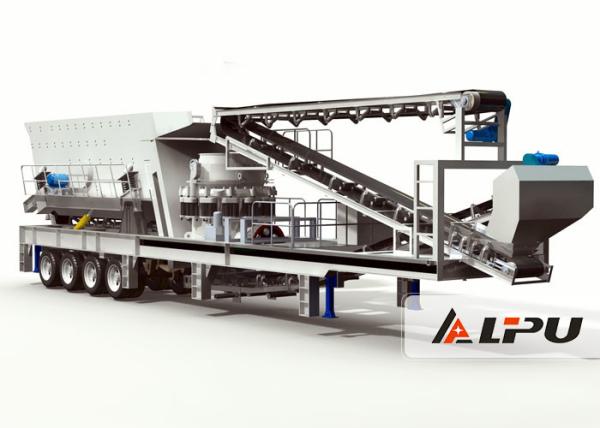

Product Picture Show:

More Convenient Mobile Crushing Plant , Portable Cone Crusher Machine
