Environment Friendly Mine Crushing Equipment Double Roll Crusher for Aggregate Crusher Plant
Environment Friendly Mine Crushing Equipment Double Roll Crusher for Aggregate Crusher Plant
Environment Friendly Mine Crushing Equipment Double Roll Crusher for Aggregate Crusher Plant
Environment Friendly Mine Crushing Equipment Double Roll Crusher for Aggregate Crusher Plant
Specifications
Brand Name :
Lipu
Model Number :
2PG610×400
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Roll Crusher
Input size :
＜30mm
Output size :
0-10mm
Capacity :
5-21t/h
Power :
2×15kw
Model :
2PG610×400
Weight :
3.5t
Application :
mine, chemical industry, cement, building materials
Protection Method :
Spring
Condition :
New
Description

Environment Friendly Mine Crusher Double Roll Crusher for Aggregate Crusher Plant
Description of Roller Crusher
Double Roller Crusher(or Roller Crusher) is used for middle crushing and fine crushing of all kinds of ores and rocks under mid-hardness in mine, chemical industry, cement, building materials and other industrial sections. Roller crusher has simple structure and can be operated conveniently. Ideal product size depends on adjusting space between two rollers.
Feature of Roller Crusher
1 Compact structure, light weight and small dimension.
2 Easy operation.
3 Good seal to reduce the leak of the dust, environment friendly.
4 High efficiency but low power consumption.
5 High crushing ratio, finished size adjustable.
Working Principle of Roller Crusher:
1. Driven by electromotor via reducer, two tooth roller rotate inward synchronously in opposite direction;
2. Material dropping from the inlet to crushing chamber;
3. Classified by the tooth roller with tooth;
4. The massive materials would be crushed, cut, and then discharged in the discharging opening.
Technical Parameters:

No.

Model

Input size (mm)

Output size (mm)

Capacity (t/h)

Power (kW)

Weight (t)

Protection Method

1

2PG400×250

＜12

0-5

5-13

2×5.5

1.1

Spring

2

2PG450×500

＜12

0-5

6-19

2×11

3.8

3

2PG600×750

＜30

0-10

10-38

2×22

8.4

4

2PG610×400

＜30

0-10

5-21

2×15

3.5

5

2PG800×600

＜40

0-20

8-42

2×22

12.5

6

2PG900×900

＜40

0-20

12-72

2×37

15.3

Spring/

Hydraulic System

7

2PG900×1200

＜40

0-20

17-97

2×55

18.5

8

2PG1000×800

＜50

0-30

12-75

2×45

21.6

9

2PG1200×800

＜60

0-30

12-91

2×55

27.4

10

2PG1200×1200

＜60

0-30

18-136

2×75

32.8

11

2PG1600×1200

＜70

0-30

20-202

2×110

43.6

12

2PG1600×1600

＜70

0-30

27-270

2×132

51.2

13

2PG1800×1600

＜80

0-40

27-302

2×160

56.7

14

2PG2000×1800

＜100

0-40

31-393

2×200

71.3

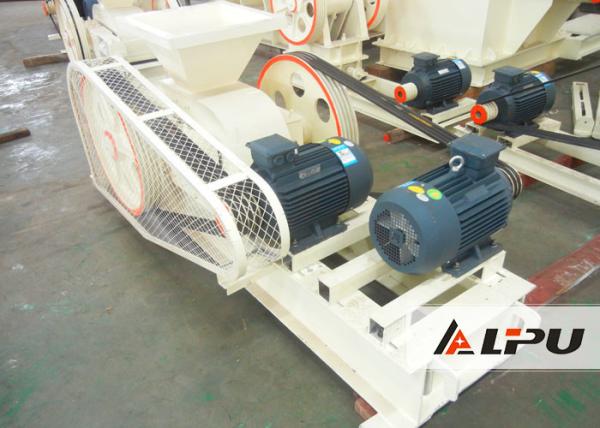

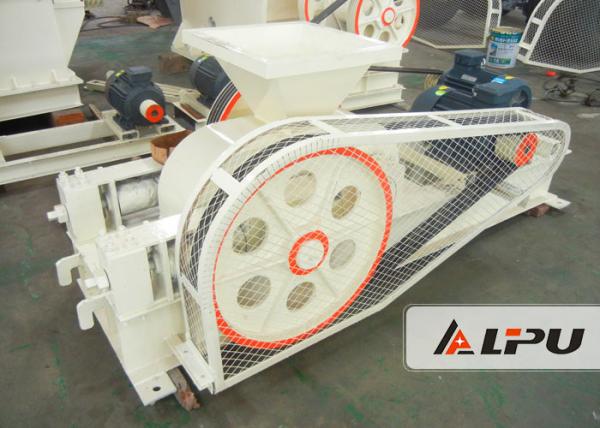

Roller Crusher Delivery Site :
Environment Friendly Mine Crushing Equipment Double Roll Crusher for Aggregate Crusher Plant
