High Concentration Ratio Gold Shaker Table for Gold Processing Plant
High Concentration Ratio Gold Shaker Table for Gold Processing Plant
High Concentration Ratio Gold Shaker Table for Gold Processing Plant
High Concentration Ratio Gold Shaker Table for Gold Processing Plant
Specifications
Brand Name :
Lipu
Model Number :
According to Customer
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Name :
Gold Shaker Table
Feeding Size :
0.074-0.5mm
Capacity :
0.5-1.5t/h
Feeding Thickness :
18-25%
Water consumption :
0.7-1t/h
Stroke :
11-16mm
Ore dressing area :
7.6㎡
Table surface shape :
Saw-tooth
Power :
1.1kw
Application :
Gold Processing Plant
Table Surface :
Fine sand table surface
Condition :
new
Description

High Concentration Ratio Gold Shaker Table for Gold Processing Plant

Brief Introduction of Gold Shaker Table

Gold Shaker Table is widely applied in separating tungsten, tin, tantalum niobium and other rare metals and noble metal ore, and also widely used in separation for gold, silver, iron, chrome, manganese, lead, zinc, copper, aluminum, etc.

The shaker effective recycling granularity scope is 2-0.037 millimeters.

Shaking table is one of most commonly used mineral beneficiation equipment, although the processing ability based on unit area of shaking table is low, its effective particles size sorting could be up to 0.037mm, the interval grill of table surface is very clear and machine operation is easy. Shaking table could continuously sort concentrate ore, second grade ore and tailings, it is very important ore sorting equipment.

Main Features of Gold Shaker Table

1) High separation accuracy. It can get final concentrates, middling, and tailing only for one time separation of the raw ore.

2) High concentration ratio.

3) High separation efficiency.

4) Easier safeguard.

5) The frequency stroke is easier to be adjusted.

Technical Parameters:

Name

Fine sand

table surface

Bed surface dimension

Length (mm)

4450

Transmission

side width (mm)

1855

Concentrate

side width (mm)

1546

Feeding Size (mm)

0.074-0.5

Capacity (t/h)

0.5-1.5

Feeding Thickness (%)

18-25

Water consumption(t/h)

0.7-1

Stroke (mm)

11-16

Frequency (min-1)

240-360

Ore dressing area (m2)

7.6

Table surface shape

Saw-tooth

Power (kW)

1.1

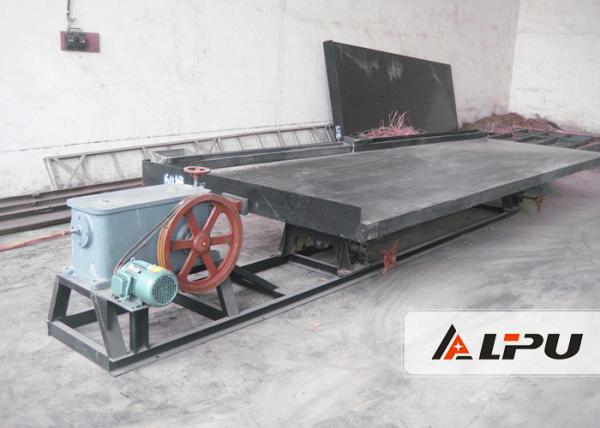

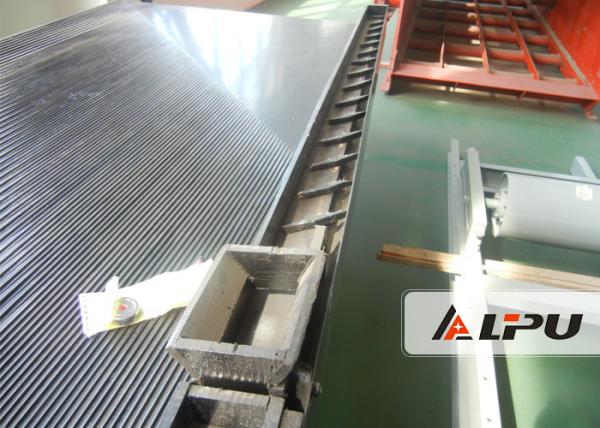

Product Picture Show:

High Concentration Ratio Gold Shaker Table for Gold Processing Plant
