Combination Type Mobile Gold Crusher Machine For Mine / Hydropower Industry
Combination Type Mobile Gold Crusher Machine For Mine / Hydropower Industry
Specifications
Brand Name :
Lipu
Model Number :
YG0830E4060-3S1548F1010
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Mining Combined Mobile Crushing Plant
Model :
YG0830E4060-3S1548F1010
Feeder Model :
GZD0830
Primary Crusher Model :
PEV400×600
Secondary Crusher Model :
PFW1010-Ⅲ
Vibrating Screen Model :
3YK1548
Tyre Parameters :
Double- axle
Return Belt Conveyor Model :
B500×14m
Receiving Belt Conveyor Model :
B500×10m
Left Belt Conveyor Model :
B500×8m
Right Belt Conveyor Model :
B500×8m
Belt Conveyor Under the Screen Model :
B500×8m
Weight :
41t
Condition :
New
Application :
Gold Ore Dressing Plant
Description

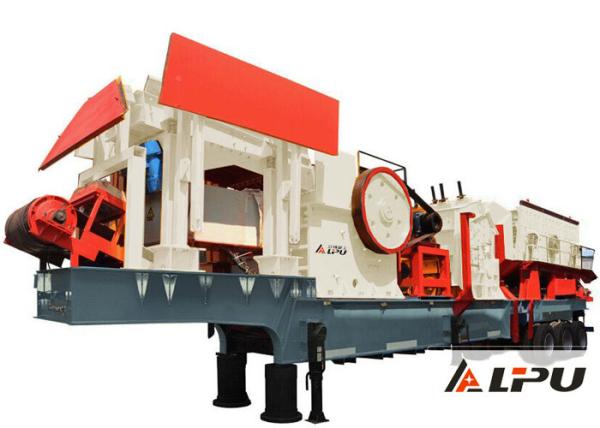

Mining Combined Mobile Crushing Plant Used in the Gold Ore Dressing Plant

Our mining combined crushing plant can be arranged as a two-stage crushing and screening system,

as a three-stage coarse, secondary and tertiary crushing and screening system. Which is suitable

above all for small, medium, large scale crushing tasks? Alternatively, oversize material can be

recirculated back to the crusher to give a guaranteed finished top size.

Either combinations of primary jaw or secondary or tertiary cone and impact crushers can be used in

conjunction with screens to provide a highly efficient production line for the operator.

The well proved and most popular combined crushing plant convinces with its compact construction, the

low transport weight, the pre-screening and the detachable post-screening unit.

Features:

1. Incorporated design.

2. Truck mounted.

3. Quick road transportation.

4. With support legs on truck, quick to set-up.

Unit Components:

Combination Type Mobile Gold Crusher Machine For Mine / Hydropower Industry

Combination Type Mobile Gold Crusher Machine For Mine / Hydropower Industry

Model and Specification:

Model

YG0830E4060-3S1548F1010

YG0830E5075-3S1848F1210

YG0830E4060-3S1548E25120

YG0830E5075-3S1848Y100

Feeder Model

GZD0830

GZD0830

GZD0830

GZD0830

Primary Crusher Model

PEV400×600

PEV500×750

PEV400×600

PEV500×750

Secondary Crusher Model

PFW1010-Ⅲ

PFW1210-Ⅲ

PEV250×1200

PYG100

Vibrating Screen Model

3YK1548

3YK1848

3YK1548

3YK1848

Tyre Parameters

Double- axle

Triplex-axle

Double- axle

Triplex-axle

Return Belt Conveyor Model

B500×14m

B650×16m

B500×14m

B650×16m

Receiving Belt Conveyor Model

B500×10m

B650×12m

B500×10m

B650×12m

Left Belt Conveyor Model

B500×8m

B500×8m

B500×8m

B500×8m

Right Belt Conveyor Model

B500×8m

B500×8m

B500×8m

B500×8m

Belt Conveyor Under the Screen Model

B500×8m

B500×8m

B500×8m

B500×8m

Transport length(mm)

14500

17200

14500

17200

Transport Width(mm)

3000

3000

3000

3000

Transport Height (mm)

4200

4800

4200

4800

Weight(t)

41

58

37

54
