Clay Materials Or Sand Screening And Washing Machine / Sand Cleaning Equipment
Clay Materials Or Sand Screening And Washing Machine / Sand Cleaning Equipment
Specifications
Brand Name :
LIPU
Model Number :
XSD2615
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
sand washing machine
Model :
XSD2615
Max input size :
10 mm
Capacity :
35-120 t/h
Power :
7.5 kw
Overall dimension :
3450×2570×2750 mm
Weight :
3.9 t
Application :
Sand making industry
Color :
As customer's requirements
Quality :
High reputation
Description

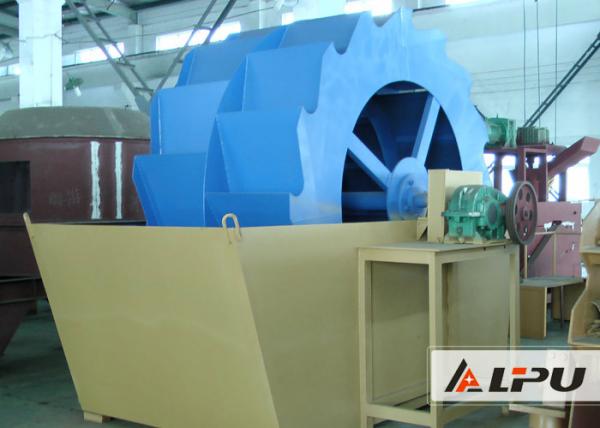

Clay Materials Or Sand Screening And Washing Machine / Sand Cleaning Equipment

Brief Introduction:

The sand washing machine for quartz sand and silica, is a kind of wheel bucket type washing and

screening equipment, can clean and separate sand stone and clay materials, with functions of cleaning

and dehydration. XSD series bucket type sand washing machine is a kind of high efficient washing and

screening equipment equipped with VCⅡ series impact crusher (sand making machine).

Performance features

1. Sand washing machine is of simple structure. The bearing device of impeller drive is separated from

water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked

with water, sand or some polluted things.

2. When sand washing machine is used for cleaning sand in quarries, it has many advantages compared

with the traditional spiral one.

3. There is little loss for medium-sized and fine sand and stone powder. The grade and the fineness of the

sand for construction after being washed can be up to the national standards, such as "sand for

construction" and "cobble and broken stones for construction".

4. There are no other wearing parts except the screen mesh.

5. It features of long service life and few times for maintenance.

Technical parameters:

Model

Max input size (mm)

Capacity (t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight

(t)

XSD2215

10

25-95

5.5

2950×2530×2310

2.7

XSD2415

10

30-105

7.5

3200×2570×2530

3.4

XSD2615

10

35-120

7.5

3450×2570×2750

3.9

XSD2815

10

40-140

11

3650×2660×3000

4.5

XSD3015

10

50-160

11

3880×2660×3250

5.2

Note: No further notice if the technical parameters change .
