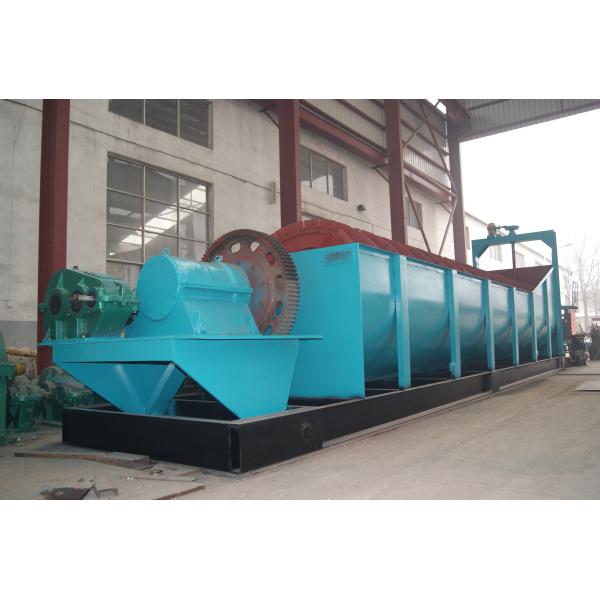

High Strength Mixing Spiral Sand Washing Machine / Stone Cleaning Equipment
High Strength Mixing Spiral Sand Washing Machine / Stone Cleaning Equipment
Specifications
Brand Name :
LIPU
Model Number :
XSL0765
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Spiral sand washing machine
Model :
XSL0765
Spiral diameter :
750 mm
Trough length :
6500 mm
Capacity :
20-50 t/h
Power :
5.5 kw
Overall dimension :
8380×1570×1920 mm
Weight :
4.3 t
Application :
Sand Washing
Color :
As customer's requirements
Quality :
High reputation
Condition :
New
Description

High Strength Mixing Spiral Sand Washing Machine / Stone Cleaning Equipment

Brief Introduction:

XSL series spiral sand washing machine is widely used for cleaning materials in the following industries:

quarry, minerals, building materials,transportation, chemical industry, water conservancy and hydropower,

cement mixture station and so on. Sand washer is used to remove the dust in sand. It aims at improving

the quality of sand. The materials include the required gravel in buildingsite, gravel factories, hydropower

station and concrete dam site, post and electric pole factory, casting70 sand, glass factory’s quartz sand

and refilling pressure sand.

Performance features:

1. Optimization design of water groove, which can drain out the water to the hilt.

2. Professional designed stock guide , adjustable long overflow weir board and optimized spiral speed

make washing and classification to be more accurate.

3. New leakproof structure can reduce the maintenance work and upkeep cost to the maximum content.

4. The helical blade is made of wear-resistant material , this can reduce the cost and make the machine

have a longer service life.

Technical parameters:

Model

Spiral diameter

(mm)

Trough length

(mm)

Capacity

(t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight

(t)

XSL0550

500

5000

10-20

3

6540×1220×1630

2.5

XSL0765

750

6500

20-50

5.5

8380×1570×1920

4.3

XSL1075

1000

7500

50-80

7.5

9550×1920×2270

6.7

XSL1275

1200

7500

70-110

11

9700×2320×2660

10.8

XSL1585

1500

8500

90-130

18.5

11000×2830×3150

13.7

XSL1885

1800

8500

110-150

22

11100×3320×3620

15.4

XSL2085

2000

8500

130-170

22

11340×3670×3880

19

Note: No further notice if the technical parameters change.
