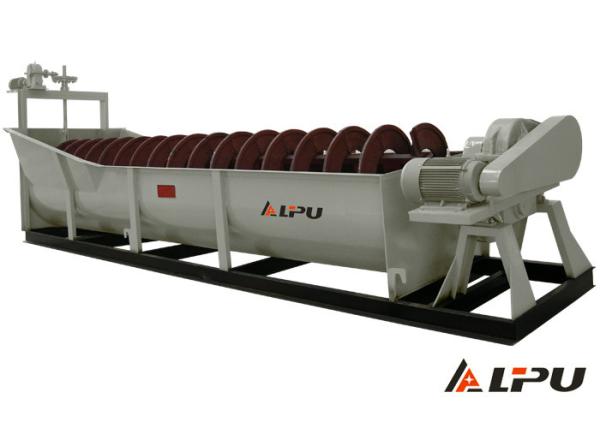

20 - 50t/h Capacity Sand Washing Machine / Spiral Sand Washer
20 - 50t/h Capacity Sand Washing Machine / Spiral Sand Washer
20 - 50t/h Capacity Sand Washing Machine / Spiral Sand Washer
20 - 50t/h Capacity Sand Washing Machine / Spiral Sand Washer
Specifications
Brand Name :
LIPU
Model Number :
XSL0765
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Spiral Sand Washer
Model :
XSL0765
Spiral diameter :
750 mm
Trough length :
6500 mm
Capacity :
20-50 t/h
Power :
5.5 kw
Overall dimension :
8380×1570×1920 mm
Weight :
4.3 t
Application :
Sand Washing
Color :
As customer's requirements
Quality :
High Reputation
Description

20 - 50t/h Capacity Sand Washing Machine / Spiral Sand Washer

Brief Introduction:

XSL series spiral sand washer is a kind of high strength mixing, washing and screening equipment, can

clean and separate sand stone and clay materials, with the function such as cleaning and dehydration.

Performance features:

1. Simple structure, stable operation, safe and reliable;

2. The fine sand is erosion rarely, the distribution and fineness modulus of washed building sand can

reach national standard.

3. Optimization design of the helical blade, making sure the spare parts to minimize loss.

Working Principle:

The electric motor runs slowly with the impeller after decelerated by the belt, decelerator and gears wheel.

The sand and stone flow into washing launder from feeding launder, rolls with the impeller, and grinds

each other. The impurity covering the sand is washing away. At the same time, add more water, the strong

water flow will take away waste and some low-weight wastes from washing launder. Through the above

process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up

slowly, the water begins to drop through the mesh and fall back in the washing launder.

Technical parameters:

Model

Spiral diameter

(mm)

Trough length

(mm)

Capacity

(t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight

(t)

XSL0550

500

5000

10-20

3

6540×1220×1630

2.5

XSL0765

750

6500

20-50

5.5

8380×1570×1920

4.3

XSL1075

1000

7500

50-80

7.5

9550×1920×2270

6.7

XSL1275

1200

7500

70-110

11

9700×2320×2660

10.8

XSL1585

1500

8500

90-130

18.5

11000×2830×3150

13.7

XSL1885

1800

8500

110-150

22

11100×3320×3620

15.4

XSL2085

2000

8500

130-170

22

11340×3670×3880

19
Product Picture Show :
20 - 50t/h Capacity Sand Washing Machine / Spiral Sand Washer
