Large Capacity Trommel Screen For Gold Ore 2600 × 1400 × 1700mm
Large Capacity Trommel Screen For Gold Ore 2600 × 1400 × 1700mm
Specifications
Brand Name :
LIPU
Model Number :
GTS1015
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Trommel Screen For Gold Ore
Model :
GTS1015
Capacity :
50 t/h
Power :
3 kw
Screen Diameter :
1000 mm
Screen Length :
1500 mm
Dimension :
2600×1400×1700 mm
Weight :
2200 kg
Application :
Gold Ore
Color :
As customer's requirments
Quality :
High reputation
Description

High Capacity And High Efficiency Trommel Screen For Gold Ore

Equipment Introduction

It is a kind of combined gold mining machine , designed especially for clayed soil which is contained in

the raw material, includes sieving, separating through trammel, sluice and extraction gold progress. It is

with wheel type chassis, can be driven by vehicles and move easily.

Features and Advantages:

(1) Simple and dependable Eccentric type system.

(2) High screening capacity.

(3) High durability.

(4) No transmission of screen panels.

(5) Ready changing of screen plates.

(6) Rigid and vibrating resistance screen body.

Technical Parameters:

Model

Capacity

(t/h)

Power

(kw)

Screen Diameter

(mm)

Screen Length

(mm)

Discharge Size

(mm)

Input Size

(mm)

Dimension
(L×W×H)

(mm)

Weight

(kg)

GTS1015

50

3.0

1000

1500

0~100

≤300

2600×1400×1700

2200

GTS1020

100

4.0

1000

2000

3390×1400×2140

2800

GTS1225

160

5.5

1200

2500

4146×1600×2680

4200

GTS1530

250

7.5

1500

3000

4460×1900×2820

5100

GTS1545

350

11

1500

4500

≤400

5960×1900×3080

6000

GTS1848

450

15

1800

4800

6500×2350×4000

7500

GTS2055

600

22

2000

5500

7500×2550×4800

9600

GTS2265

800

30

2200

6500

8500×2750×5000

12800

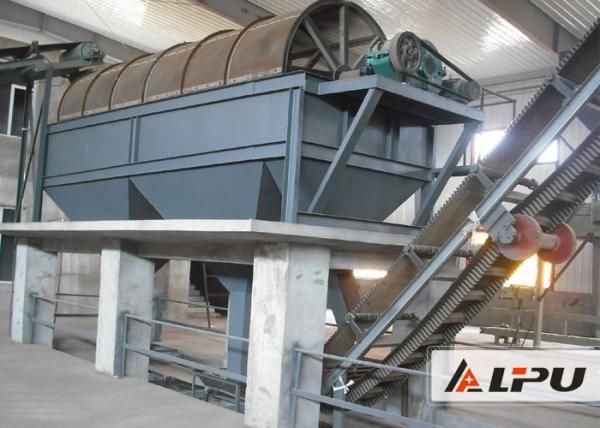

Product Picture Show:

Large Capacity Trommel Screen For Gold Ore 2600 × 1400 × 1700mm
