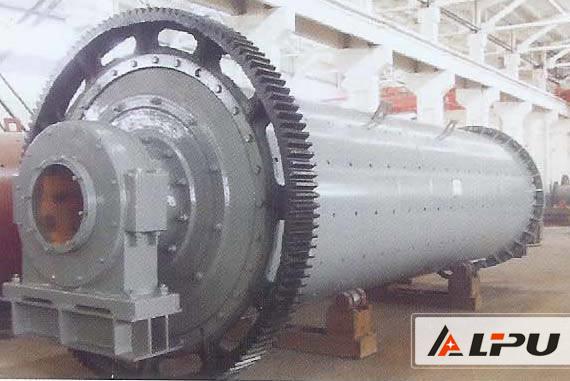

Dry Or Wet Type Cement Ball Mill Machine For Clinkers' Grinding
Dry Or Wet Type Cement Ball Mill Machine For Clinkers' Grinding
Dry Or Wet Type Cement Ball Mill Machine For Clinkers' Grinding
Dry Or Wet Type Cement Ball Mill Machine For Clinkers' Grinding
Specifications
Brand Name :
Lipu
Model Number :
1830×7000
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Cement Ball Mill
Model :
1830×7000
Color :
According to customer
Condition :
New
Application :
Clinkers' Grinding
Effective Volume :
16.5m³
Capacity :
15-28t/h
Power :
245kw
Weight :
37t
Rotary Speed :
24rpm
Description

Dry Or Wet Type Cement Ball Mill Machine For Clinkers' Grinding

Introduction of Cement Ball Mill:

Ball mill machine is the key equipment for re-crushing the materials after they are primarily crushed. It is

widely used for the dry type or wet type grinding of all kinds of ores and other grindable materials in

cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and

glass ceramic industry. The ore grinding methods of ball mill include dry type and wet type.

The Structure of Cement Ball Mill:

Ball mill machine is mainly composed of feeding part, discharging part, rotary part and driving part which

includes reducer, small drive gear, electrical machine and electronic control. The hollow shaft uses steel

casting, the inner lining can be dismantled and changed, and the rotary rack wheel uses casting gear

hobbing and inside the cylinder there is wear-resisting lining board which has fine abrasion performance.

This machine has stable operation and reliable performance.

Working Principle of Cement Ball Mill:

Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow

shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining

board in which there are many steel balls with different specifications. The cylinder rotates and produces

eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact

and grind the materials. After being coarsely ground in the first cabin, the materials will go through the

single-layer partition board and into the secondary cabin in which there are flat lining board, and in the

lining board there are steel balls to further grind the materials. Finally the powdery materials will be

discharged from the discharging grating bar to complete the powder grinding process.

Technical Data of Cement Ball Mill:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kw)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ900×1800 1 1.3 1.7 2 0.9-1.6 1.7-3.2 2-3.7 15 37 4.2
φ900×2100 1.1 1.5 1.9 2.3 1-1.9 2-3.7 2.3-4.3 18.5 37 4.9
φ900×3000 1.6 2.2 2.8 3.3 1.4-2.7 2.9-5.4 3.3-6.2 30 37 7.6
φ1200×2400 2.4 3.3 4.1 4.9 2.2-4 4.3-8 5-9.2 30 35 8.7
φ1200×3000 3 4.1 5.2 6.2 2.7-5 5.4-10 6.2-12 37 35 13
φ1200×4500 4.4 6.2 7.7 9.3 4-7.5 8.1-15 9.3-17 55 35 14
φ1500×3000 4.8 6.6 8.3 10 4.3-8 8.6-16 10-19 75 29 15
φ1500×4500 7.1 10 12 15 6.5-12 13-24 15-28 110 29 18
φ1500×5700 9 13 16 19 8.2-15 16-31 19-35 130 29 24
φ1830×3000 7.1 10 12 15 6.4-12 13-24 15-28 130 24.5 28
φ1830×4500 10.6 15 18 22 10-18 19-36 22-41 155 24.5 32
φ1830×6500 15.3 21 27 32 14-26 28-52 32-60 210 24 35
φ1830×7000 16.5 23 29 34 15-28 30-56 35-64 245 24 37
φ2100×3000 9.4 13 16 20 9-16 17-32 20-37 155 23.5 42
φ2100×3600 11.3 16 20 24 10-19 21-38 24-44 180 23.5 44
φ2100×4500 14.1 20 25 30 13-24 26-48 30-55 245 23.5 52
φ2100×7000 22 31 38 46 20-37 40-74 46-86 380 23.5 57
φ2200×3600 12.5 17 22 26 11-21 23-42 26-49 210 21.5 52
φ2200×4500 15.6 22 27 33 14-26 28-53 33-61 245 21.5 54
φ2200×6500 22.5 31 39 47 20-38 41-76 47-88 320 21.5 60
φ2200×7000 24.2 34 42 51 22-41 44-82 51-95 380 21.5 63
φ2200×8000 27.8 38 48 57 26-46 49-90 57-104 420 21.5 67
φ2400×3600 15 21 26 31 14-25 27-51 31-58 280 21.3 60
φ2400×4500 18.7 26 33 39 17-32 34-63 39-73 320 21.3 71
φ2400×6000 24.9 35 43 52 23-42 45-84 52-97 400 21.3 84
φ2400×7000 29.1 41 51 61 26-49 53-98 61-113 475 21.3 92
φ2700×3600 18.8 26 33 39 17-32 34-64 40-73 380 20.6 82
φ2700×4500 23.5 33 41 49 21-40 43-80 49-92 480 20.6 90
φ2700×6000 31.4 44 55 66 29-53 57-106 66-122 560 20.6 105
φ2700×7000 36.6 51 64 77 33-62 67-124 77-143 630 20.6 110
φ3200×4500 33.5 47 58 70 31-57 61-113 70-131 800 18.2 137
φ3200×6000 44.7 62 78 94 41-76 81-151 94-174 1000 18.2 160
φ3200×7000 52.2 73 91 109 47-88 95-176 110-203 1120 18.2 185
φ3600×4500 42.8 60 75 90 39-72 78-145 90-167 1120 17 200
φ3600×6000 57.1 80 100 119 52-96 104-193 120-223 1400 17 220
φ3600×7000 66.6 93 116 139 61-113 121-225 140-260 1600 17 245
φ3600×8000 76.1 106 133 159 70-129 138-257 160-297 1600 17 270
φ3600×9000 85.6 120 149 179 78-145 156-289 180-334 1800 17 285
φ3800×6500 69.1 96 121 145 63-117 126-234 145-270 1800 16.7 277
φ3800×8500 90.4 126 158 189 82-153 165-306 190-353 2250 16.7

300

Case:

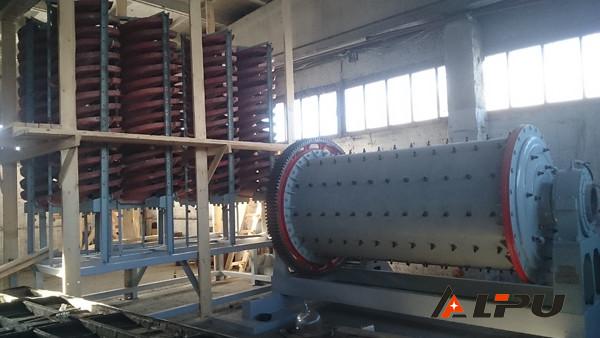

Installation Site of Ball Mill In Fujian Province, China

Date:2014

Location: Fujian Province, China

Dry Or Wet Type Cement Ball Mill Machine For Clinkers' Grinding

Dry Or Wet Type Cement Ball Mill Machine For Clinkers' Grinding
