Low Energy Consumption Cement Ball Mill Equipment , Industrial Ball Mill
Low Energy Consumption Cement Ball Mill Equipment , Industrial Ball Mill
Low Energy Consumption Cement Ball Mill Equipment , Industrial Ball Mill
Low Energy Consumption Cement Ball Mill Equipment , Industrial Ball Mill
Specifications
Brand Name :
Lipu
Model Number :
2100×3600
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Cement Ball Mill
Model :
2100×3600
Color :
According to customer
Application :
Mineral Processing
Effective volume :
11.3m³
Max. steel ball load :
16t
Capacity :
10-19t/h
Power :
180kw
Rotary speed :
23.5rpm
Weight :
44t
Description

Low Energy Consumption Cement Ball Mill Equipment , Industrial Ball Mill

Application of Cement Ball Mill:

Ball mill is generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize

material continuously being recirculated back into the mill to be reduced. Various classifiers, such as

screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills.

The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc.

Structure of Cement Ball Mill:

The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small

driving gear, electric motor and electric control). The quill shaft adopts cast steel partand the liner is

detachable. The turning gearwheel adopts casting hobbingprocess and the drum is equipped with wear-

resistant liner, which has goodwear-resistance. The machine is with stable and reliable working condition.

Moreover, according to different materials and discharging methods, there are dry ball mill plant and wet

ball mill plant for choice.

Technical Data of Cement Ball Mill:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kw)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ2100×3600 11.3 16 20 24 10-19 21-38 24-44 180 23.5 44

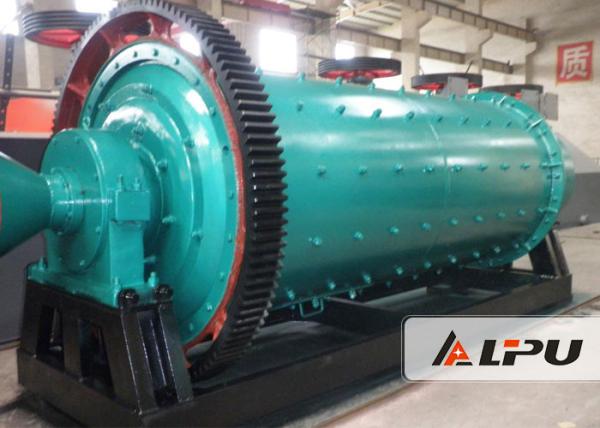

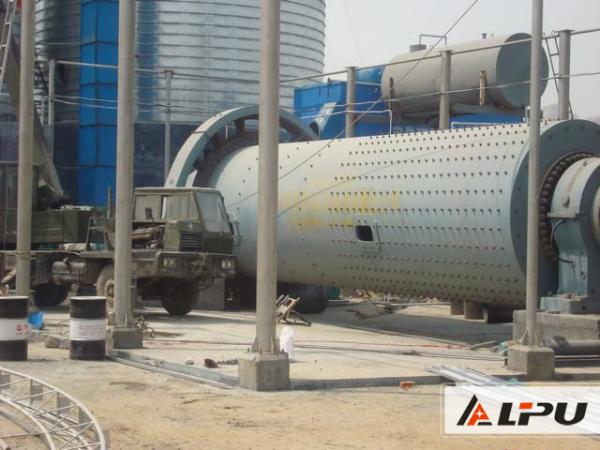

Product Picture Show:

Low Energy Consumption Cement Ball Mill Equipment , Industrial Ball Mill
