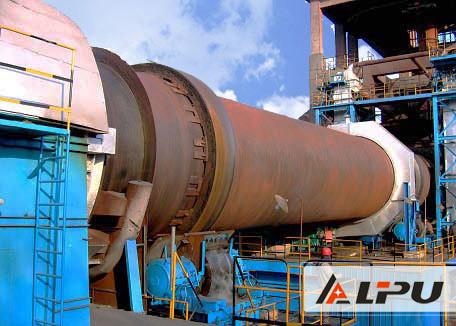

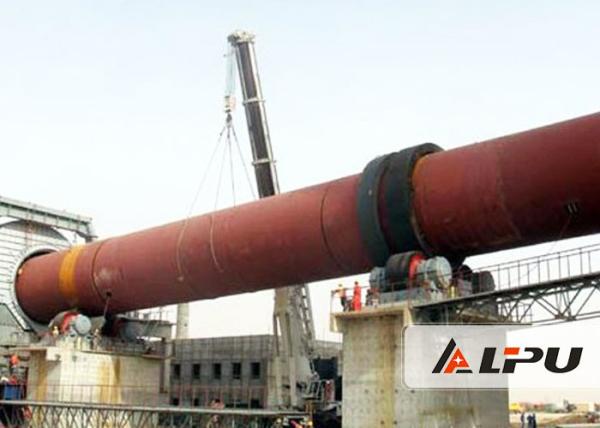

1.9×39m Rotary Lime Kiln For Steel Making Factory And Iron Alloy Factory
1.9×39m Rotary Lime Kiln For Steel Making Factory And Iron Alloy Factory
1.9×39m Rotary Lime Kiln For Steel Making Factory And Iron Alloy Factory
1.9×39m Rotary Lime Kiln For Steel Making Factory And Iron Alloy Factory
Specifications
Brand Name :
Lipu
Model Number :
1.9×39
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Rotary Lime Kiln
Model :
1.9×39
Capacity :
56t/h
Rotary Speed :
0.29-2.93r/min
Power :
30kw
Weight :
78t
Condition :
New
Application :
active lime production line in the steel making factory and iron alloy factory
Description

1.9×39m Rotary Lime Kiln For Steel Making Factory And Iron Alloy Factory

Equipment Introduction:

Active-lime rotary kiln is used for the calcination of active-lime and dolomite in the steel making factory and iron alloy factory.

Working Principle

Material is fed into kiln though end of kiln (higher side of cylinder). Because cylinder is inclined and it

rotates slowly, material moves along with circle as well as axial direction (from higher side to lower side).

After going through physical and chemical change, material gets into cooling machine through head cover

of kiln after the finishing calcination. Fuel is fed into the kiln head through the kiln head, and exhaust gas

will discharge at the end of kiln after exchanging heat with material.

Technical Parameters:

Model

Kiln

Capacity(t/d)

Rotary Speed

(r/min)

Power

(kW)

Weight

(t)

Diameter(m)

Length(m)

Slope(%)

1.9×39

1.9

39

4

56

0.29-2.93

30

78

The Maintenance of Rotary Kiln:

1.9×39m Rotary Lime Kiln For Steel Making Factory And Iron Alloy Factory
