Wheel Type Mobile Crushing Plant and Screening Station , Mine Crusher
Wheel Type Mobile Crushing Plant and Screening Station , Mine Crusher
Wheel Type Mobile Crushing Plant and Screening Station , Mine Crusher
Wheel Type Mobile Crushing Plant and Screening Station , Mine Crusher
Wheel Type Mobile Crushing Plant and Screening Station , Mine Crusher
Wheel Type Mobile Crushing Plant and Screening Station , Mine Crusher
Wheel Type Mobile Crushing Plant and Screening Station , Mine Crusher
Wheel Type Mobile Crushing Plant and Screening Station , Mine Crusher
Specifications
Brand Name :
Lipu
Model Number :
YG0830E4060
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Wheel Type Mobile Crushing and Screening Station
Model :
YG0830E4060
Feeder Model :
GZD0830
Crusher Model :
PEV400×600
Iron Separator Model (optional) :
RCYD(C)-5
Belt Conveyor Model :
B500×8.5m
Generator Power :
80kw
Weight :
17t
Description

Wheel Type Mobile Crushing Plant and Screening Station , Mine Crusher

Brief Introduction :

Wheel Type Mobile Crushing and Screening Station is high-efficiency and modular equipment. It can

work by single machine, as well as combination of several machines to be a plant. It is widely used in

road and bridge construction, urban construction, building garbage disposal, mining, metallurgical,

energy and other departments for crushing and screening operations.

Performance features :

1. Flexible, convenient and versatile; It can save a lot of infrastructure and removal cost;

2. Reasonable compact space layout greatly reduces the occupied space of the equipment in the field;

3. Crushing materials in working site immediately and moving with the mining surface of raw materials

greatly reduce the material transportation cost

4. The equipment chassis is high and the turning radius is small make it easy to travel on ordinary road

and the rugged road;

5. It can use external power supply, as well as high reliability diesel generator;

6. The technology for crushing and screening equipment is mature, structure is compact and

performance is stable.

Technical Data:

Wheel Mobile Jaw Crushing Station:

Model

YG0830E4060

YG0830E5075

YG9538E6090

YG1149E75110

YG1249E86110

Feeder Model

GZD0830

GZD0830

GZD9538

GZD1149

GZD1249

Crusher Model

PEV400×600

PEV500×750

PEV600×900

PEV750×1100

PEV860×1100

Iron Separator Model

(optional)

RCYD(C)-5

RCYD(C)-6.5

RCYD(C)-8

RCYD(C)-10

RCYD(C)-12

Tyre Parameters

Double- axle

Double- axle

Double- axle

Triplex-axle

Triplex-axle

Belt Conveyor Model(mm)

B500×8.5m

B650×8.5m

B800×8.5m

B1000×10m

B1200×10m

Belt Conveyor Discharging height(mm)

3000

3000

3000

3200

3200

Side Belt Conveyor Model(optional)

B500×4m

B500×4m

B500×4m

B650×5m

B650×5m

Side Belt Conveyor Discharging height (mm)

2800

2800

2800

3100

3100

Generator Power(kW)(optional)

80

120

160

200

250

Transport length(mm)

9700

10500

11900

13100

14600

Transport Width(mm)

2550

2550

2550

2550

2550

Transport Height (mm)

3650

3800

4000

4300

4500

Operation Length(mm)

9700

10500

11900

13100

14600

Operation Width(mm)

2550

2550

2900

2950

3300

Operation Height(mm)

4060

4200

4400

4810

5300

Weight(t)

17

28

39

57

65

Wheel Mobile Crushing and Screening Station :

Model

Y3S1548

F1010

Y3S1848

F1210

Y3S1860

F1214

Y3S2160

F1315

Y3S2460

F1320

Y3S1848

Y100

Y3S1860

Y200

Crusher Model

PFW1010-Ⅲ

PFW1210-Ⅲ

PFW1214-Ⅲ

PFW1315-Ⅲ

PFW1320-Ⅲ

PYG100

PYG200

Vibrating Screen Model

3YK1548

3YK1848

3YK1860

3YK2160

3YK2460

3YK1848

3YK1860

Tyre Parameters

Double- axle

Double- axle

Triplex-axle

Triplex-axle

Triplex-axle

Double- axle

Triplex-axle

Feeding Belt Conveyor Model

B500×12m

B650×15m

B800×15m

B1000×18m

B1200×18m

B650×15m

B800×15m

Front Belt Conveyor Model

B500×8m

B650×8m

B800×8m

B1000×10m

B1200×10m

B650×8m

B800×8m

Left Belt Conveyor Model

B500×10m

B500×10m

B500×10m

B650×12m

B800×12m

B500×10m

B500×10m

Right Belt Conveyor Model

B500×10m

B500×10m

B500×10m

B650×12m

B800×12m

B500×10m

B500×10m

Belt Conveyor Under the Screen Model

B500×9m

B500×9m

B500×9m

B650×12m

B800×12m

B500×9m

B500×9m

Generator Power(kW)(optional)

160

200

250

360

450

200

250

Transport length(mm)

12400

14200

14200

16000

16000

14200

14200

Transport Width(mm)

3000

3000

3000

3200

3200

3000

3000

Transport Height (mm)

4000

4200

4200

4500

4500

4200

4200

Weight(t)

26

34

42

51

63

29

37
Wheel Mobile Crushing and Screening Plant :

Model

YG0830E4060-3S1548F1010

YG0830E5075-3S1848F1210

YG0830E4060-3S1548E25120

YG0830E5075-3S1848Y100

Feeder Model

GZD0830

GZD0830

GZD0830

GZD0830

Primary Crusher Model

PEV400×600

PEV500×750

PEV400×600

PEV500×750

Secondary Crusher Model

PFW1010-Ⅲ

PFW1210-Ⅲ

PEV250×1200

PYG100

ibrating Screen Model

3YK1548

3YK1848

3YK1548

3YK1848

Tyre Parameters

Double- axle

Triplex-axle

Double- axle

Triplex-axle

Return Belt Conveyor Model

B500×14m

B650×16m

B500×14m

B650×16m

Receiving Belt Conveyor Model

B500×10m

B650×12m

B500×10m

B650×12m

Left Belt Conveyor Model

B500×8m

B500×8m

B500×8m

B500×8m

Right Belt Conveyor Model

B500×8m

B500×8m

B500×8m

B500×8m

Belt Conveyor Under the Screen Model

B500×8m

B500×8m

B500×8m

B500×8m

Transport length(mm)

14500

17200

14500

17200

Transport Width(mm)

3000

3000

3000

3000

Transport Height (mm)

4200

4800

4200

4800

Weight(t)

41

58

37

54

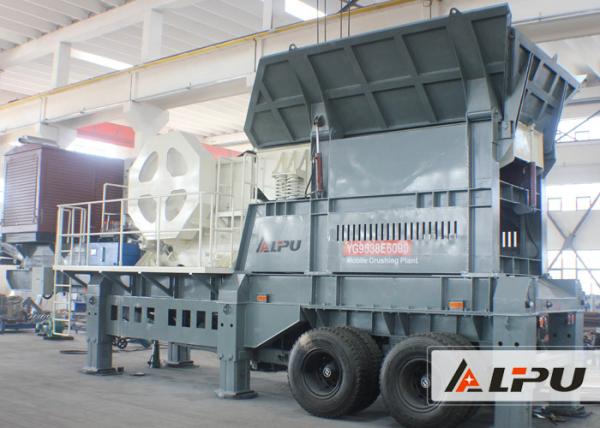

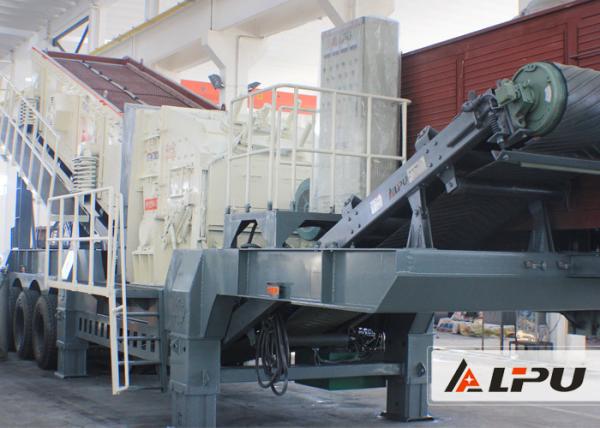

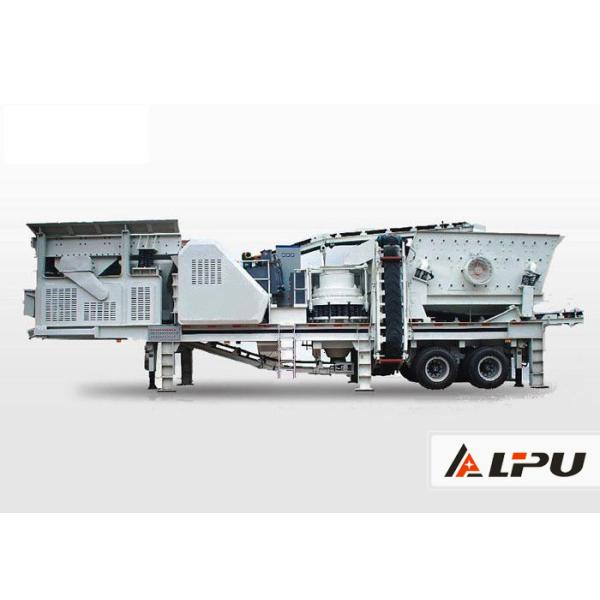

Product Picture Show :

Wheel Type Mobile Crushing Plant and Screening Station , Mine Crusher
