CTN Counter - Current Magnetic Separator Iron Ore Beneficiation Plant ISO CE IQNet
CTN Counter - Current Magnetic Separator Iron Ore Beneficiation Plant ISO CE IQNet
CTN Counter - Current Magnetic Separator Iron Ore Beneficiation Plant ISO CE IQNet
CTN Counter - Current Magnetic Separator Iron Ore Beneficiation Plant ISO CE IQNet
CTN Counter - Current Magnetic Separator Iron Ore Beneficiation Plant ISO CE IQNet
CTN Counter - Current Magnetic Separator Iron Ore Beneficiation Plant ISO CE IQNet
CTN Counter - Current Magnetic Separator Iron Ore Beneficiation Plant ISO CE IQNet
CTN Counter - Current Magnetic Separator Iron Ore Beneficiation Plant ISO CE IQNet
Specifications
Brand Name :
Lipu
Model Number :
CTB612
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Magnetic Separator
Model :
CTB612
Shell diameter :
600mm
Shell length :
1200mm
Capacity :
10-20t/h
Power :
1.1kw
Overall dimension :
2030×1200×1140mm
Condition :
New
Application :
Ore dressing plant
Description

Magnetic Separator used in Ore Dressing Plant for Iron Ore Separation

Brief Introduction:

Permanent roll magnetic separator is suitable to separate magnetic minerals in fine particles. It also can

be used to separate magnetic waste from non-magnetic minerals. According to different clients’

requirements, we can supply CTB semi-counter-current magnetic separator, CTS concurrent magnetic

separator, CTN counter-current magnetic separator and etc. We can choose different magnetic

induction intensity on the cylinder surface as per your requirement.

Performance Features:

1. No demagnetization even after a long service time, due to reasonable distribution of magnetic fields;

2. Effectively prevent slurry from depositing or blocking by adopting fluid designed trough which is

simulated on computer;

3. Easy and convenient to adjust magnetic system.

Technical Parameters:

Model

Shell diameter (mm)

Shell length (mm)

Capacity (t/h)

Power (kW)

Overall dimension

L×W×H(mm)

Weight (t)

CTB612

600

1200

10-20

1.1

2030×1200×1140

1.5

CTB618

600

1800

15-30

2.2

2630×1200×1140

1.8

CTB718

750

1800

20-45

3

2550×1460×1360

2.2

CTB918

900

1800

25-55

4

3050×1820×1700

2.9

CTB924

900

2400

35-70

4

3710×1820×1700

3.6

CTB1018

1050

1800

40-75

5.5

2800×1760×1750

4.3

CTB1024

1050

2400

60-120

5.5

3200×1760×1750

5.2

CTB1030

1050

3000

70-150

7.5

3950×1760×1750

6.3

CTB1218

1200

1800

60-110

5.5

2850×2030×1940

5

CTB1224

1200

2400

70-130

7.5

3400×2030×1850

6.4

CTB1230

1200

3000

80-160

7.5

4050×2030×1940

7.8

CTB1530

1500

3000

100-180

11

4230×2300×2350

9.2

CTB1540

1500

4000

115-220

11

5230×2300×2350

10.5

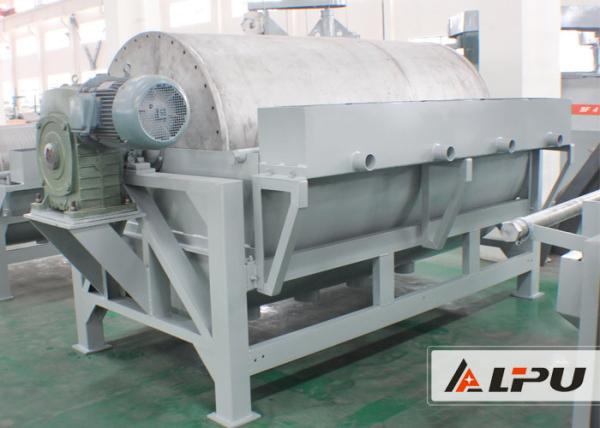

Product Picture Show :

CTN Counter - Current Magnetic Separator Iron Ore Beneficiation Plant ISO CE IQNet
