Specifications
Brand Name :
Lipu
Model Number :
GP1530
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
High Frequency Screen
Model :
GP1530
Mesh :
0.08-2mm
Frequency :
3000r/min
Capacity :
18-27t/h
Transmission Power :
2×0.37kw
Condition :
New
Application :
Mineral Ore Dressing Plant
Overall dimension :
3250×1980×2160mm
Weight :
1.2t
Description

Application of High Frequency Screen in the Mineral Ore Dressing Plant

Brief Introduction:

GP series of high frequency screen is a prior device for classifying wet fine particles (Density

30%-40%). It is of high classification efficiency in 3ways: 1, it increases ball mill capacity by greatly

reduce recycling burden and amount of qualified powder on the screen; 2, it avoids coarse ore’s

detrimental effect on concentrate grade by strictly control particle size below the screen; 3, It obviously

increases ore grade below the screen as fine/heavy materials are easy to settle onto sieve and then

pass the sieve when slurry proceed on the high frequency sieve.

Application:

High frequency screen is a good choice for screening and grading the fine particles of mineral ores. This machine has wide application in iron ore, tin ore, tungsten ore, tantalum ore, dolomite sand and some other kinds of mining dressing plants' screening and grading work.

Performance Features:

1. Because of high frequency while little amplitude, fine/heavy materials are easy to settle onto sieve and

then pass the sieve as it reduces slurry surface tension;

2. Wear resistant, anti-clogging and long service life due to optimal designed fine mesh sieve;

3. High capacity and high usage ratio of sieve by multiple feeding;

4. Low power consumption and high efficiency as exciter drives sieve only by transmission device.

Technical Parameters:

Model

Mesh

(mm)

Frequency

(r/min)

Capacity

(t/h)

Power

(kW)

Overall Dimension

L×W×H(mm)

Weight

(t)

GP1220

0.08-2

3000

10-15

2×0.25

2420×1660×2010

1

GP1530

0.08-2

3000

18-27

2×0.37

3250×1980×2160

1.2

GP2030

0.08-2

3000

24-36

2×0.37

3250×2420×2370

1.4

GP2238

0.08-2

3000

33-50

2×0.37

4080×2740×2470

1.5

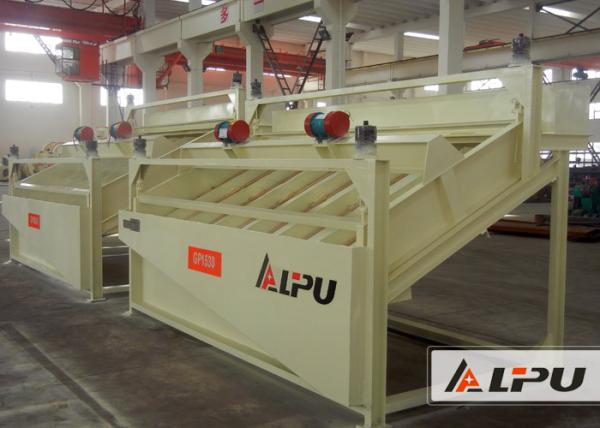

Product Picture Show :
Wear Resistant High Frequency Screen Mineral Ore Dressing Plant 2×0.37kw
