Specifications
Brand Name :
Lipu
Model Number :
5LL400
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Spiral Chute
Model :
5LL400
External Diameter :
400mm
Pitch :
240,180mm
Horizontal Angle :
9°
Helix No. :
1-2
Feed Size :
0.05-0.6mm
Feed Thickness :
30-50%
Capacity :
0.15-0.2t/h
Overall Dimension :
460×460×1500mm
Weight :
50kg
Condition :
New
Application :
Ore Dressing Plant
Description

The High Performance Mining Spiral Chute Used in Ore Dressing Plant for Gravity Separation

Brief Introduction:

Spiral Chute is suitable for preliminary gravity separation of 0.05-1mm iron ore, ilmenite, chromite,

pyrites, zircon, rutile, eremite, tungsten ore, tin ore, tantalum ore, columbium and other nonferrous

metal, rare metal and non-metallic minerals, which differs from specific density.

Application:

1. Rutile, ilmenite and zircon concentration

2. Iron ore, chromite and manganese beneficiation

3. Tin, tantalum and ore concentration

4. Gold, native copper and base metal recovery

5. Silica sands processing

6. Titano-magnetite concentration

Feature & Benefits:

1. Reasonable structure and small occupation area

2. High recovery, high efficiency, and precise separation,

3. Light in weight, rust and corrosion resistant;

4. Simple installation www.gelinmachinery.com and Minimal maintenance requirements

5. Low operating cost and long operating life

6. Reliable running with minimal operator attention

7. Strong adaptability to fluctuation of feeding amount, density, size and grade;

Technical Parameters:

Model

External Diameter

(mm)

Pitch

(mm)

Horizontal Angle

(°)

Helix No.

Feed Size

(mm)

Feed Thickness

(%)

Capacity

(t/h)

Overall Dimension

L×W×H(mm)

Weight

(kg)

5LL400

400

240,180

9

1-2

0.05-0.6

30-50

0.15-0.2

460×460×1500

50

5LL600

600

450,360,270

9

1-2

0.05-0.6

30-50

0.8-1.2

700×700×2600

150

5LL900

900

675,540,405

9

2-3

0.05-0.6

30-50

2-3

1060×1060×4000

400

5LL1200

1200

900,720,540

9

2-4

0.05-0.6

30-50

4-6

1360×1360×5230

600

5LL1500

1500

540,720

9

2-4

0.05-0.6

30-50

8-16

1660×1660×5230

800

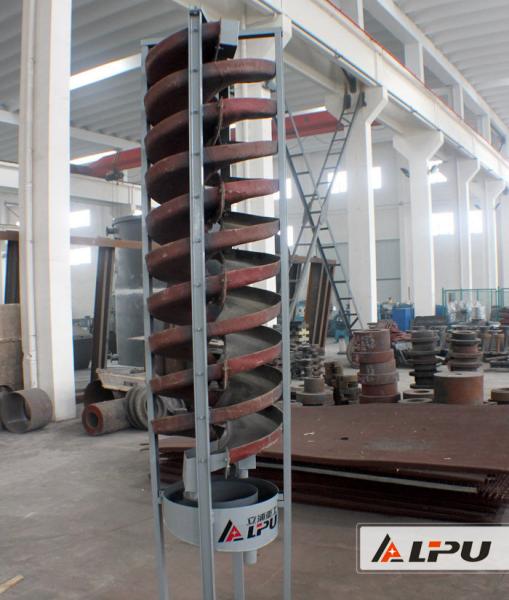

Product Picture Show :
High Performance Mining Spiral Chute Ore Dressing Plant For Gravity Separation

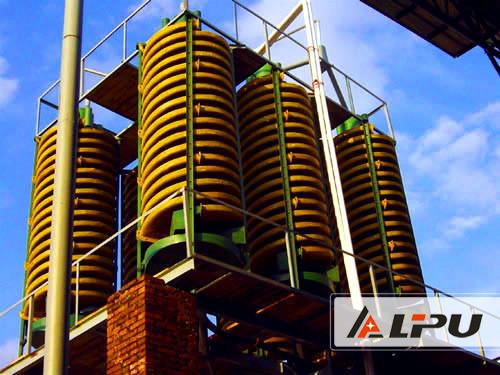

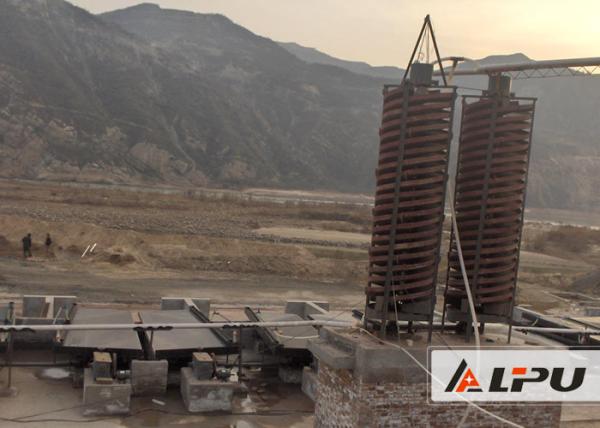

Installation Site of Spiral Chute:
High Performance Mining Spiral Chute Ore Dressing Plant For Gravity Separation
