Specifications
Brand Name :
Lipu
Model Number :
DMC32
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Dust Collector
Model :
DMC32
Total filter area :
24㎡
TFiltering wind speed :
1.04-1.67m/min
Input air :
1500-2400m3/h
Power :
1.5kw
Application :
Mineral Processing
Condition :
New
Description

High Efficiency Mine Crushing Equipment and DMC Series Pulse Bag Filter Dust Collector

Brief Introduction:

DMC Series Pulse Bag Filter Dust Collector can collect and separate the air dust and particles .It can

not only coordinate with crusher and vibrating screen to purify general dust gas, but also deal with high

concentration dust gas. It is applied to recover the final products getting from the ball mill, dryer, and

classifier. It is widely used for dust gas purification processing system in building material, metallurgy,

mining, coal, nonmetal ore superfine powder processing industries. DMC Series Dust Collector is the

ideal equipment for environmental protection.

Performance features:

1, Offline pulse remove the dust with high efficiency;

2, Adopt high quality filter material to adapt to different conditions; long service life of filter bags;

3, Gas chamber structure, modular manufacturing, simple for installation, reliable operation.

Technical Parameters:

Model

Total filter area

(m2)

Filtering wind speed(m/min)

Input air (m3/h)

Qty of filter bag(pc)

Specification of filter bag (mm)

Air consum-ption(m³/h)

Density

of inlet

(g/Nm3)

Density

of outlet

(mg/Nm3)

Power

(kW)

Weight(t)

DMC

(A)

DMC

(B)

DMC32

24

1.04-1.67

1500-2400

32

Φ120x2000

0.032

≤200

≤50

1.5

1.4

1.3

DMC48

36

1.15-1.62

2500-3500

48

Φ120x2000

0.048

≤200

≤50

2.2

1.7

1.5

DMC64

48

1.21-1.74

3500-5000

64

Φ120x2000

0.064

≤200

≤50

3

1.9

1.7

DMC80

60

1.25-1.67

4500-6000

80

Φ120x2000

0.08

≤200

≤50

5.5

2.4

2.2

DMC96

72

1.27-1.62

5500-7000

96

Φ120x2000

0.096

≤200

≤50

5.5

2.8

2.6

DMC112

84

1.28-1.68

6500-8500

112

Φ120x2000

0.11

≤200

≤50

7.5

3.2

2.9

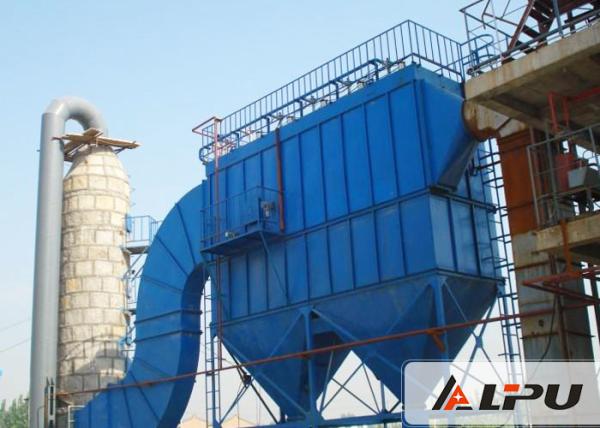

Product Picture Show :
High Efficiency Mine Crushing Equipment and DMC Series Pulse Bag Filter Dust Collector
