Self - cleaning Suspension Permanent Magnetic Separator for Iron Ore Separation
Self - cleaning Suspension Permanent Magnetic Separator for Iron Ore Separation
Self - cleaning Suspension Permanent Magnetic Separator for Iron Ore Separation
Self - cleaning Suspension Permanent Magnetic Separator for Iron Ore Separation
Specifications
Brand Name :
Lipu
Model Number :
RCYD- 5
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Permanent Magnetic Separator
Model :
RCYD- 5
Belt width :
500mm
Belt speed :
≤2.5m/s
Rated suspension height :
150mm
Power :
1.5kw
Weight :
0.75t
Application :
Mineral Processing
Description

Self - cleaning Suspension Permanent Magnetic Separator for Iron Ore Separation

Brief Introduction:

RCYD series of self-cleaning suspension permanent magnetic separator is mainly used in the material
flow to remove/recovery inclusion of ferromagnetic materials, such as iron, iron filings, nails, etc., in
order to prevent subsequent crusher, grinding machine, and other machinery and equipment from being
damaged, It can also prevent belt conveyor from being damaged by iron material . It is widely used in
cement, thermal power, metallurgy, mining, chemical, glass, papermaking, coal and other industries.

Performance features:

1. The computer simulation of magnetic circuit, the magnetic field intensity is high, the suction is
strong;
2. High performance magnetic source, magnetic path is deep, it is not easy to demagnetization, and
demagnetization is not more than 5% within eight years;
3. Waist drum type roller structure, with automatic correction function;
4. Belt can automatically discharge iron, and guarantee long-term continuous trouble-free operation;
5. Compact structure, and is suitable for limited installation space.

Technical parameters:

Model

Belt width (mm)

Belt speed (m/s)

Rated suspension height(mm)

Material thickness

(mm)

Magnetic field

intensity

(mT)

Iron absorption ability(kg)

Power

(kW)

Overall and

installation

dimension (mm)

Weight

(t)

A

B

C

D

E

RCYD-

5

500

≤2.5

150

≤100

≥60

0.1-25

1.5

1900

735

935

950

753

0.75

RCYD-

6.5

650

≤2.5

200

≤150

≥70

0.1-25

1.5

2165

780

1080

1200

888

1.2

RCYD-

8

800

≤2.5

250

≤200

≥70

0.1-25

2.2

2350

796

1280

1300

1088

1.4

RCYD-

10

1000

≤2.5

300

≤250

≥70

0.1-25

3.0

2660

920

1550

1400

1335

2.12

RCYD-

12

1200

≤2.5

350

≤300

≥70

0.1-25

4.0

2860

1010

1720

1550

1515

3.35

RCYD-

14

1400

≤2.5

400

≤350

≥70

0.1-25

4.0

3225

1050

1980

1800

1755

4.45

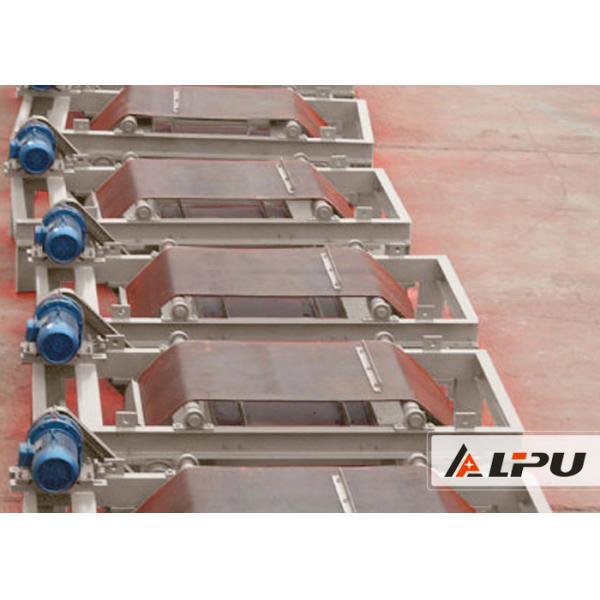

Product Picture Show :
Self - cleaning Suspension Permanent Magnetic Separator for Iron Ore Separation
