Low Noise Grizzly Vibrating Feeder Machine For Marble / Vibration Conveyor
Low Noise Grizzly Vibrating Feeder Machine For Marble / Vibration Conveyor
Low Noise Grizzly Vibrating Feeder Machine For Marble / Vibration Conveyor
Low Noise Grizzly Vibrating Feeder Machine For Marble / Vibration Conveyor
Specifications
Brand Name :
LIPU
Model Number :
GZD1149
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Low Noise And Convenient Operation Grizzly Vibrating Feeder For Marble
Model :
GZD1149
Vibration frequency :
970 r/min
Double-amplitude :
4-6 mm
Capacity :
160-320 t/h
Power :
2×5.5 kw
Overall dimension :
5010×1670×1710 mm
Weight :
4.3 t
Application :
Marble
Color :
As customer's requirement
Quality :
High reputation
Description

Low Noise Grizzly Vibrating Feeder Machine For Marble / Vibration Conveyor

Brief Introduction:

GZD series grizzly vibrating feeder can feed blocky, granular material into receiving material device

uniformly and continuously, and it can be also used for preliminary screening. The vibrating feeder is

widely used in metallurgy, coal mine, beneficiation, construction, chemical, grinding, etc for feeding.

Performance Features:

1. With vibration motor as vibration source, no other moving part. Little noise, low electric consumption

and simple structure, convenient operation;

2. It can adjust the feeding material amount by adjusting the vibration force of vibrating motor;

3. The optimized-design bar ensures to screen material more effectively without plugging. Preliminary

screening performance is excellent due to the big screening effective area.

Technical Parameters:

Model

Vibration frequency(r/min)

Double-amplitude(mm)

Capacity (t/h)

Power

(kW)

Overall dimension

(mm)

Weight (t)

GZD0830

970

4-6

90-150

2×1.5

3110×1370×1370

2.5

GZD9538

970

4-6

120-210

2×3

3910×1520×1460

3

GZD1149

970

4-6

160-320

2×5.5

5010×1670×1710

4.3

GZD1249

970

4-6

180-380

2×5.5

5010×1770×1710

4.5

GZD1360

970

4-6

200-450

2×7.5

6120×1870×1950

5.7

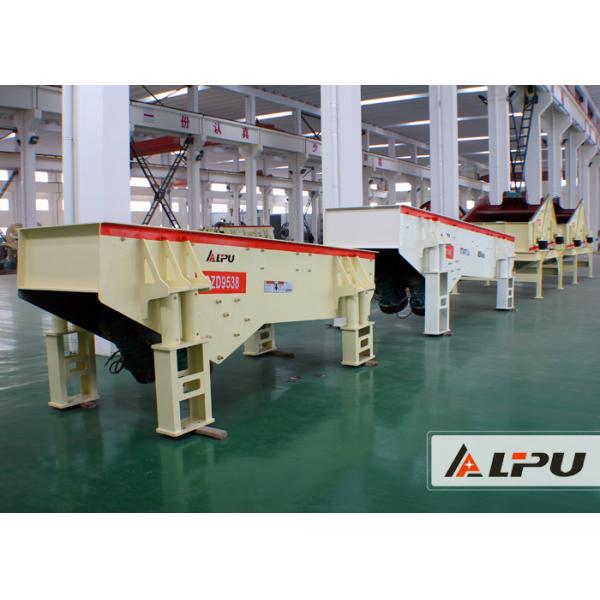

Product Picture Show:

Low Noise Grizzly Vibrating Feeder Machine For Marble / Vibration Conveyor

Case:

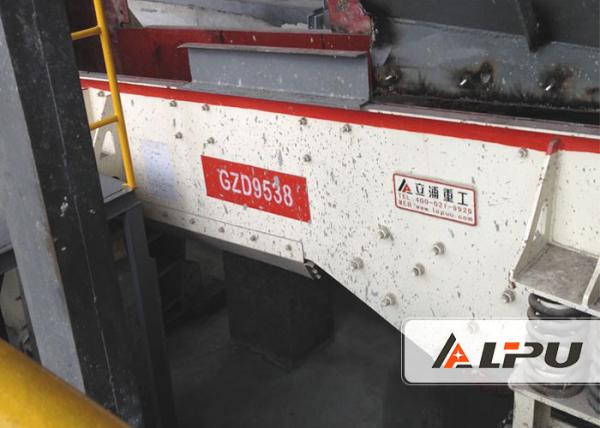

The Working Site of Vibrating Feeder in Gansu Stone Crushing Plant
Date: 2014.06.05
Location: Gansu Province, China
Project: Stone Crushing Plant

Low Noise Grizzly Vibrating Feeder Machine For Marble / Vibration Conveyor
