Lower Energy Consumption Mining Conveyor Belt System For Lead Ore
Lower Energy Consumption Mining Conveyor Belt System For Lead Ore
Lower Energy Consumption Mining Conveyor Belt System For Lead Ore
Lower Energy Consumption Mining Conveyor Belt System For Lead Ore
Lower Energy Consumption Mining Conveyor Belt System For Lead Ore
Lower Energy Consumption Mining Conveyor Belt System For Lead Ore
Specifications
Brand Name :
LIPU
Model Number :
800
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Mining Conveyor System
Model :
800
Capacity :
120-200 t/h
Application :
Transporting Lead Ore
Color :
As customer's requirments
Quality :
High reputation
Condition :
New
Description

Lower Energy Consumption Mining Conveyor Belt System For Lead Ore

Brief Introduction:

Mining conveyor system is the link of each operated equipment in industrial production to ensure the

continuity and automation of production process. In crushing line, belt conveyor is widely used to

convey bulk material. It connects crusher and screening machine to build up the complete production

lines of gravel crushing, sand crushing and screening. According to different technique requirements, the

machine can convey material singly or combine with other conveying equipment. Mining conveyor

system can transport various kinds of material economically and efficiently. It is widely used in

transporting copper ore, gold ore, granite, marble and minerals.

Performance Features:

1. Large capacity, long distance transport, transport smoothly;

2. Simple structure, convenient maintenance, lower energy consumption, high standardization degree of

components.

Advantages:

1. Belt conveyors are capable of handling a wide range of bulk materials from very fine to large lump

sizes.

2. Belt conveyors can be configured to fit almost any application. A belt conveyor can convey material

horizontally, on an incline or a combination of both.

3. Belt conveyors require less horsepower to operate than other types of conveyors. Bulk materials are

carried on top of the belt and remain static, therefore requiring much less energy to move.

Technical Parameters:

Belt width (mm)

Length (m) / Power (kW)

Capacity (t/h)

500

≤12/3

12-20/3-5.5

20-30/5.5-7.5

40-80

650

≤12/4

12-20/4-5.5

20-30/5.5-11

80-120

800

≤10/4

10-15/4-5.5

15-30/5.5-15

120-200

1000

≤10/5.5

10-20/5.5-11

20-40/11-22

200-320

1200

≤10/7.5

10-20/7.5-15

20-40/15-30

290-480

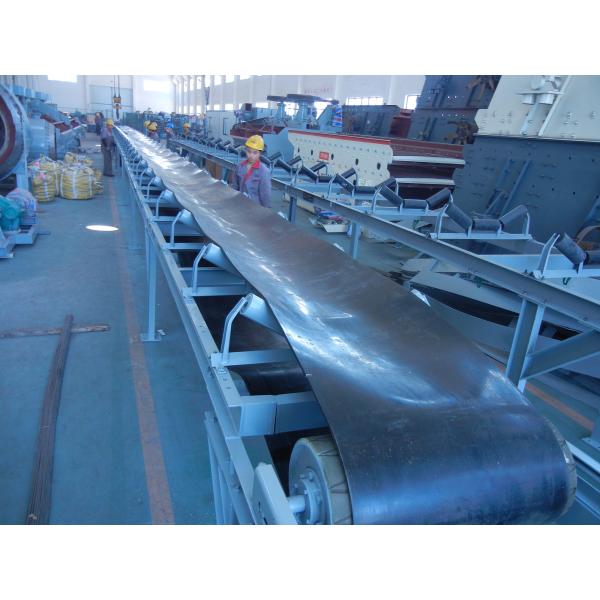

Product Picture Show:

Lower Energy Consumption Mining Conveyor Belt System For Lead Ore
