Automatic Vibrator Feeder Equipment In Quarry , Metallurgy , Coalmine
Automatic Vibrator Feeder Equipment In Quarry , Metallurgy , Coalmine
Automatic Vibrator Feeder Equipment In Quarry , Metallurgy , Coalmine
Automatic Vibrator Feeder Equipment In Quarry , Metallurgy , Coalmine
Specifications
Brand Name :
LIPU
Model Number :
GZD1149
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
High Capacity And Energy Saving Vibrating Feeder In Quarry
Model :
GZD1149
Vibration frequency :
970r/min
Double -amplitude :
4-6mm
Capacity :
160-320t/h
Power :
2×5.5kw
Overall dimension :
5010×1670×1710mm
Weight :
4.3t
Application :
stone crushing plant
Color :
As customer's requirments
Quality :
High reputation
Description

Automatic Vibrator Feeder Equipment In Quarry , Metallurgy , Coalmine

Brief Introduction:

GZD series vibrating feeder in quarry can feed blocky, granular material into receiving material device

uniformly and continuously, and it can be also used for preliminary screening. The vibrating feeder is

widely used in quarry, metallurgy, coalmine, beneficiation, construction, chemical, grinding, etc. for

feeding.

Performance Features:

1. With vibration motor as vibration source, no other moving part. Little noise, low electric consumption

and simple structure, convenient operation;

2. It can adjust the feeding material amount by adjusting the vibration force of vibrating motor;

3. Adopt low alloy steel (Q345) so the equipment can work well in-40 ℃ cold area.

Technical Parameters:

Model

Vibration frequency(r/min)

Double-amplitude

(mm)

Capacity (t/h)

Power

(kW)

Overall dimension

(mm)

Weight (t)

GZD0624

970

4-6

50-100

2×1.1

2510×1170×1290

1.6

GZD0830

970

4-6

90-150

2×1.5

3110×1370×1370

2.5

GZD9538

970

4-6

120-210

2×3

3910×1520×1460

3

GZD1149

970

4-6

160-320

2×5.5

5010×1670×1710

4.3

GZD1249

970

4-6

180-380

2×5.5

5010×1770×1710

4.5

GZD1360

970

4-6

200-450

2×7.5

6120×1870×1950

5.7

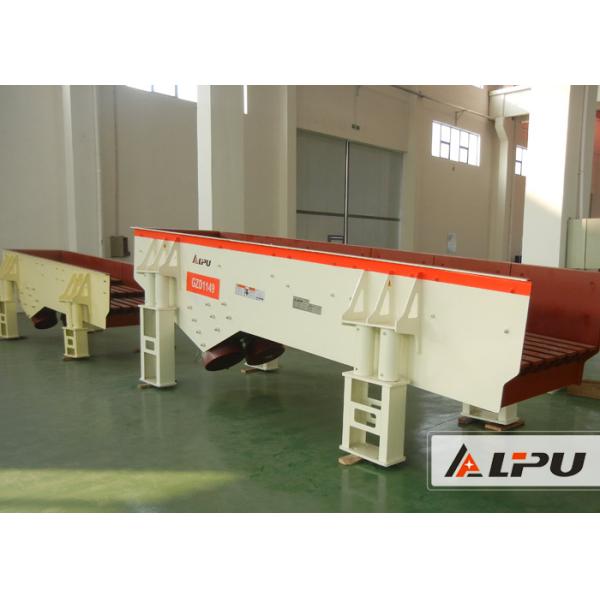

Product Picture Show:

Automatic Vibrator Feeder Equipment In Quarry , Metallurgy , Coalmine

Case:

The Working Site of Vibrating Feeder in Gansu Stone Crushing Plant

Date: 2014.06.05

Location: Gansu Province, China

Project: Stone Crushing Plant

Automatic Vibrator Feeder Equipment In Quarry , Metallurgy , Coalmine

Automatic Vibrator Feeder Equipment In Quarry , Metallurgy , Coalmine
