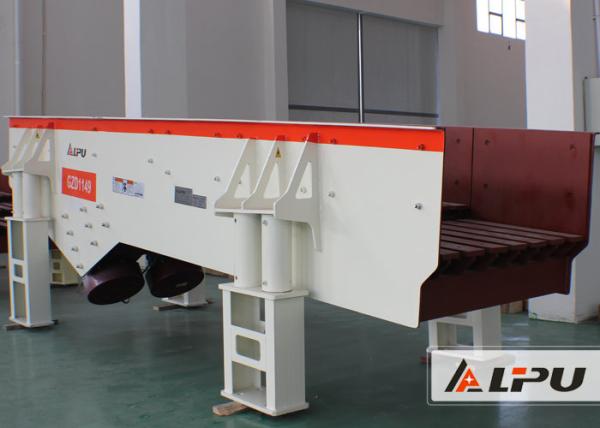

High Efficiency Vibrating Grizzly Feeder For Concrete With Speed 970r/min
High Efficiency Vibrating Grizzly Feeder For Concrete With Speed 970r/min
High Efficiency Vibrating Grizzly Feeder For Concrete With Speed 970r/min
High Efficiency Vibrating Grizzly Feeder For Concrete With Speed 970r/min
Specifications
Brand Name :
LIPU
Model Number :
GZD1149
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Vibrating Grizzly Feeder
Model :
GZD1149
Feeder Model :
970 r/min
Crusher Model :
4-6 mm
Iron Separator Model (optional) :
160-320 t/h
Belt Conveyor Model :
2×5.5 kw
Generator Power :
5010×1670×1710 mm
Weight :
4.3 t
Application :
Concrete
Color :
As customer's requirement
Quality :
High reputation
Description

High Efficiency Vibrating Grizzly Feeder For Concrete With Speed 970r/min

Brief Introduction:

Vibrating feeder can feed blocky, granular material into receiving material device uniformly and

continuously, and it can be also used for preliminary screening. The vibrating feeder is widely used in

copper ore processing plant, metallurgy, coalmine, beneficiation, construction, chemical, grinding, etc.

for feeding. It is suitable to feed stones like concrete, gold, granite to primary crusher.

Performance Features:

1. Steady vibrating, reliable working and long life.

2. Adjustable vibrating. The rate of flow can be changed and controlled at any time, which makes the

adjusting convenient and steady.

3. Little noise and low energy consumption of vibrating feeder machine.

4. Simple structure, light weight and small size.

5. Easy to maintain.

6. Able to protect the feeder machine from pollution of dust when using the enclosed structure.

Technical Parameters:

Model

Vibration frequency(r/min)

Double-amplitude(mm)

Capacity (t/h)

Power

(kW)

Overall dimension

(mm)

Weight (t)

GZD9538

970

4-6

120-210

2×3

3910×1520×1460

3

GZD1149

970

4-6

160-320

2×5.5

5010×1670×1710

4.3

GZD1249

970

4-6

180-380

2×5.5

5010×1770×1710

4.5

Working Site of Vibrating Feeder:High Efficiency Vibrating Grizzly Feeder For Concrete With Speed 970r/min
