Heavy Duty Durable Vibrating Feeder For Pebble , Concrete , Gold , Granite
Heavy Duty Durable Vibrating Feeder For Pebble , Concrete , Gold , Granite
Heavy Duty Durable Vibrating Feeder For Pebble , Concrete , Gold , Granite
Heavy Duty Durable Vibrating Feeder For Pebble , Concrete , Gold , Granite
Specifications
Brand Name :
LIPU
Model Number :
GZD1149
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Heavy Duty Durable Vibrating Feeder
Model :
GZD1149
Feeder Model :
970 r/min
Crusher Model :
4-6 mm
Iron Separator Model (optional) :
160-320 t/h
Belt Conveyor Model :
2×5.5 kw
Generator Power :
5010×1670×1710 mm
Weight :
4.3 t
Application :
Pebble
Color :
As customer's requirement
Quality :
High reputation
Description

Heavy Duty Durable Vibrating Feeder For Pebble , Concrete , Gold , Granite

Brief Introduction:

Vibrating feeder can feed blocky, granular material into receiving material device uniformly and

continuously, and it can be also used for preliminary screening. The vibrating feeder is widely used in

copper ore processing plant, metallurgy, coalmine, beneficiation, construction, chemical, grinding, etc.

for feeding. It is suitable to feed stones like pebble, concrete, gold, granite to primary crusher.

Performance Features:

1. It can adjust the feeding material amount by adjusting the vibration force of vibrating motor;

2. Adopt low alloy steel (Q345) so the equipment can work well in-40 ℃ cold area.

Working Principle:

The vibrating feeder electromotor drives the eccentric block of the exciter to rotate with high speed

through the v-shaped belt. The eccentric block can produce big eccentric force, and the exciting screen

box will do circular motion with certain amplitude. The materials on the slant screen will be influenced by

the impulse transmitted from the screen box and do continuous throwing motion, and the materials smaller

than the screen hole will go through the screen, thus realizing classifying. The vibrating feeder is widely

used for mining plant, stone crushing plant, sand making plant, etc.

Technical Parameters:

Model

Vibration frequency(r/min)

Double-amplitude(mm)

Capacity (t/h)

Power

(kW)

Overall dimension

(mm)

Weight (t)

GZD9538

970

4-6

120-210

2×3

3910×1520×1460

3

GZD1149

970

4-6

160-320

2×5.5

5010×1670×1710

4.3

GZD1249

970

4-6

180-380

2×5.5

5010×1770×1710

4

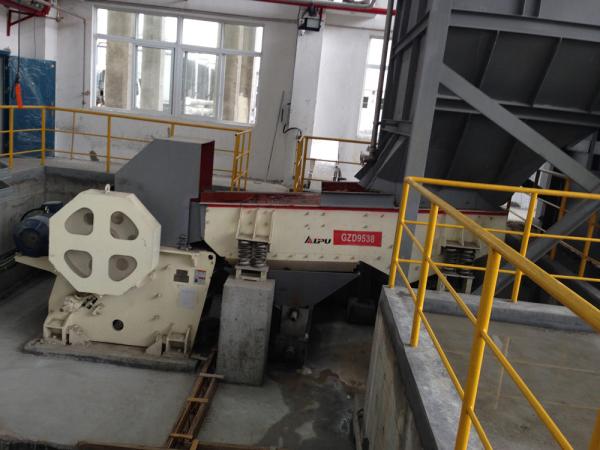

Working Site of Vibrating Feeder:Heavy Duty Durable Vibrating Feeder For Pebble , Concrete , Gold , Granite
