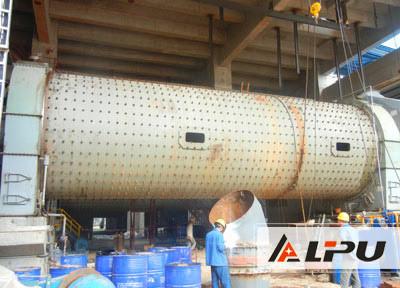

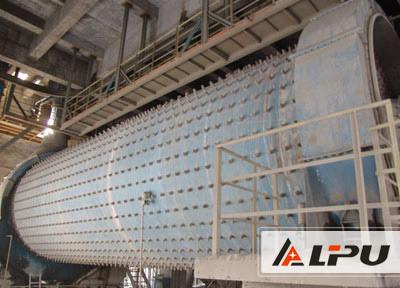

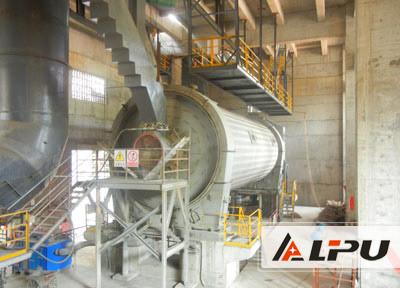

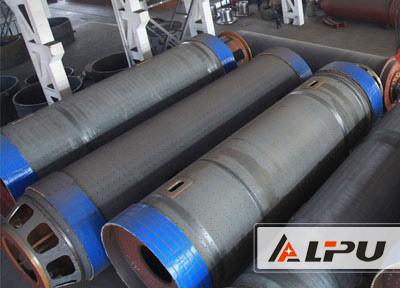

SNM Series Tube Cement Ball Mill 2.2x11 , Ball Milling Machine
SNM Series Tube Cement Ball Mill 2.2x11 , Ball Milling Machine
SNM Series Tube Cement Ball Mill 2.2x11 , Ball Milling Machine
SNM Series Tube Cement Ball Mill 2.2x11 , Ball Milling Machine
SNM Series Tube Cement Ball Mill 2.2x11 , Ball Milling Machine
SNM Series Tube Cement Ball Mill 2.2x11 , Ball Milling Machine
SNM Series Tube Cement Ball Mill 2.2x11 , Ball Milling Machine
SNM Series Tube Cement Ball Mill 2.2x11 , Ball Milling Machine
Specifications
Brand Name :
Lipu
Model Number :
2.2x11
Certification :
ISO9001-2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Tube Mill
Model :
2.2x11
Effective Volume :
38.1m³
Capacity :
17-21t/h
Weight :
92t
Power :
570KW
Condition :
New
Application :
cement making industry
Description

SNM Series Tube Cement Ball Mill 2.2x11 , Ball Milling Machine

Brief Introduction

SNM series tube mill has made significant improvement basing on the traditional tube mill. It provides a

new type of grinding equipment for the production of high grade cement by great improvement of

production.

Application:

Pipe mill is widely used in building materials, metallurgy, mineral processing, electric power and

chemical industry, cement and other materials.

Performance features:

1. Special assembled diaphragms plate and discharge grate can adjust every cavity material level, so as

to increase the air quantity;

2. Adopt the new type of liner; adjust the speed of rotary and optimize the gear lubrication parameters;

3. Enhance the stability and service life of mill operation, and improve the grinding efficiency.

Technical Parameters :

Model

Effective volume

(m3)

Max. Ball Load (t)

Feeding size

(mm)

Rotary speed(r/min)

Capacity

(t/h)

Power

(kW)

Weight

(t)

φ2.2×11

38.1

49.6

≤25

20.9

17-21

570

92

φ2.4×8

33.2

43.3

≤25

20.9

15-18

570

77

φ2.4×9

37.4

48.7

≤25

20.9

17-21

570

91

φ2.4×10

41.5

54.1

≤25

20.9

19-23

570

111

φ2.4×11

45.7

59.5

≤25

21

21-25

710

125

φ2.4×12

49.9

64.9

≤25

21

22-27

800

127

φ2.4×13

54.0

70.3

≤25

21

24-30

800

131

φ2.6×10

49.1

63.9

≤25

20.6

22-27

800

140

φ2.6×13

63.8

83.1

≤25

20.6

29-35

1000

158

φ3×9

58.6

76.3

≤25

19.1

26-32

1000

148

φ3×11

71.7

93.3

≤25

18.9

32-39

1250

177

φ3×12

78.2

101.8

≤25

18.9

35-43

1250

182

φ3×13

84.7

110.3

≤25

18.9

38-47

1400

200

φ3.2×11

82.0

106.7

≤25

18.3

37-45

1400

214

φ3.2×13

96.9

126.1

≤25

18.7

44-53

1600

237

φ3.4×11

92.9

121

≤25

18

42-51

1600

230

φ3.5×13

116.6

151.9

≤25

17

52-64

2000

258

φ3.8×13

138.3

180

≤25

17

62-76

2500

316

Case:

Ball Mill For Aluminum Slag Processing

Location: Gansu Province, China

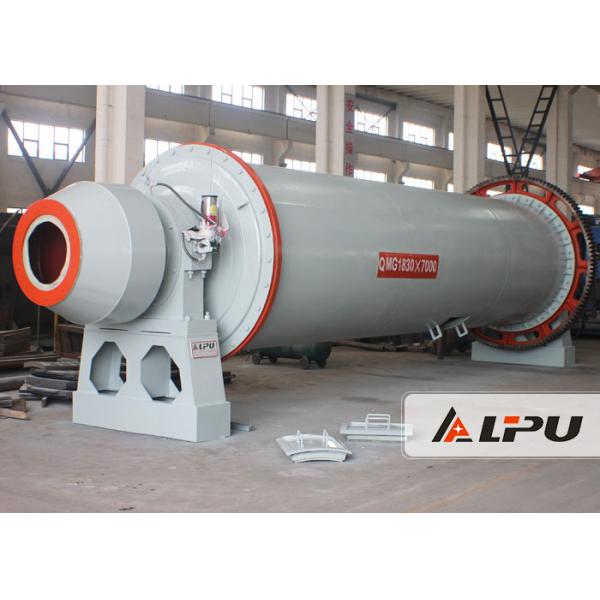

SNM Series Tube Cement Ball Mill 2.2x11 , Ball Milling Machine

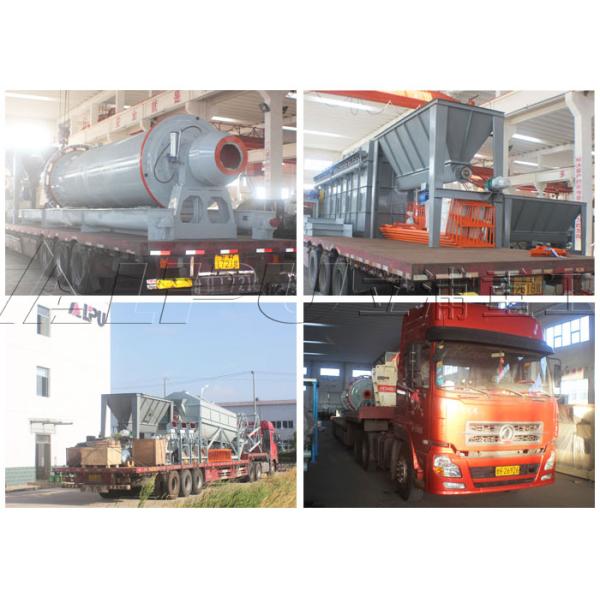

Product Picture Show:

SNM Series Tube Cement Ball Mill 2.2x11 , Ball Milling Machine
