The usage of special gold and silver ore mining ball mill in gold and silver ore beneficiation plant

Gold and silver ore mining ball mill introduction:

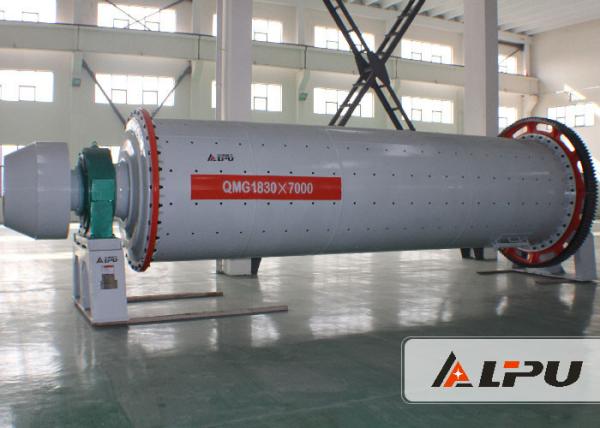

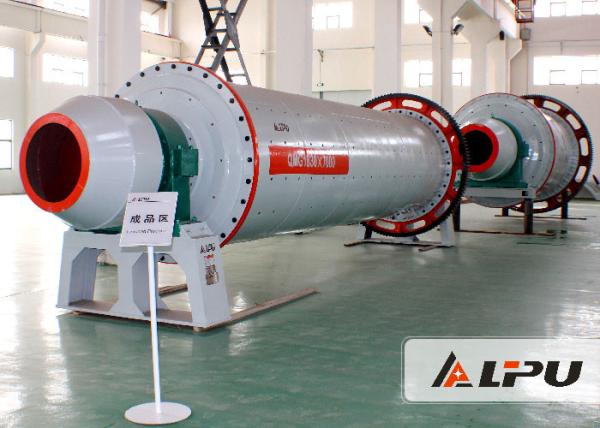

Gold mining ball mill is horizontal cylinder rotating device and is driven by the gear transmission, it is also called the grid ball mill which has two cavities. The material evenly enters the first cavity via the material hollow spiral shaft of the feeding device, and there are under lining boards and different specifications of iron balls, the rotating of cylinder exerts centrifugal force, the force brings the balls to a certain height, and then thumping and abrasive the materials.
After coarsely grinding in the first cavity, the materials reach the second cavity through the single-layer diaphragms, the cavity is filled with flat lining boards and iron ball, and materials will be further grinding. At last, powder discharged through the unloading board, and the whole grinding process finishes. Note: Dry grid ball mill and wet grid ball mill is going to be chosen according to material and the way to discharge ores.

Features of Gold Mining Ball Mill:

(1) Newest structure;

(2) Easy maintenance and operation;

(3) Durable wearing parts;

(4) Low operating cost;

(5) Big and fine grinding ratio.

Technical Data:

Case:

Indonesia Gold Ore Crushing&Grinding Project

Date : 2014

Location : Indonesia

Scope : gold ore crushing and grinding

Product Line Supplied By Lipu

The company plans to start gold production lines, using crushing equipment to break gold ore into particles, and grinding into powder.

The primary ore particle size is 80-100 - mm, after two stage crushing in primary and secondary crushing, and then into the ball mill for grinding. By broken the ore particle size is decreased to the reasonable size for grinding, the ball mill discharging is very fine, by the classifying equipment to grade. The coarse particles return to ball mill grinding again, fine particles into next working procedure.
