Ferrous Metal Ore Processing Plant / Minerals Cell Flotation Mineral Processing
Ferrous Metal Ore Processing Plant / Minerals Cell Flotation Mineral Processing
Ferrous Metal Ore Processing Plant / Minerals Cell Flotation Mineral Processing
Ferrous Metal Ore Processing Plant / Minerals Cell Flotation Mineral Processing
Specifications
Brand Name :
Zoneding
Model Number :
SF0.7
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
Customerized
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Flotation machine
Model :
SF0.7
Cell volume :
0.7m³
Impeller diameter :
350mm
Impeller speed :
400r/min
Capacity :
0.3-1m³/min
Main motor power :
3kw
Spare parts supply :
Paid
Application :
non-ferrous metal, black metal, noble metal, non-metal mineral
Description

Fluorite Ore Flotation Cell Flotation Machine For Minerals,Ferrous Metal

Introduction of Flotation Machine:

Flotation Machine can be used to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemial material. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral attaches on bubble, floats on the surface of slurry and is scraped out, other mineral still stays in the slurry, so the separating purpose is finished.

Working Principle of Flotation Machine

The impellers are driven through V belt transmission, which brings centrifugal effect to form the negative pressure. On the one hand, the flotation machine inhales sufficient air to mix with ore slurry; on the other hand it stirs ore slurry and mix with medication to form the mineralized froth. To adjust the height of flashboard to control the liquid level and make the useful froth scraped by loam board. Each chute can inhale gas, sink magma, separate. No assisting equipment are required, and it must be levelly installed.

Features of Flotation Machine

1. Large inhaling capacity and low energy consumption;

2. Complete flotation circuit with inhaling air and pulp, no auxiliaries are needed;

3. Process is easy to be changed;

4. Reasonable circulation of pulp decreases coarse sand sedimentation;

5. Automatic controlling device makes adjustment more convenient.

Technical Parameters:

SF series Flotation Machine

Model

Cell volume(m³)

Impeller diameter

(mm)

Impeller speed

(r/min)

Capacity

(m³/min)

Main motor power

(kW)

Scraper motor power

(kW)

Weight

(t/cell)

SF0.7

0.7

350

400

0.3-1

3

1.1

0.9

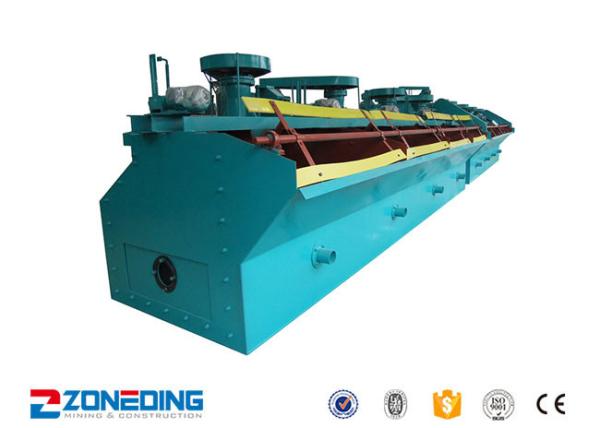

Product Picture Show:

Ferrous Metal Ore Processing Plant / Minerals Cell Flotation Mineral Processing
