Industrial Sand Maker Mine Crushing Equipment 180-220kw High Crushing Ratio
Industrial Sand Maker Mine Crushing Equipment 180-220kw High Crushing Ratio
Industrial Sand Maker Mine Crushing Equipment 180-220kw High Crushing Ratio
Industrial Sand Maker Mine Crushing Equipment 180-220kw High Crushing Ratio
Specifications
Brand Name :
Zoneding
Model Number :
VCⅡ8622
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Sand Making Machine
Model :
VCⅡ8622
Capacity :
120-220t/h
Max. Feed Size :
50mm
Double Motor Power :
180-220kw
Overall Dimension :
4500×2100×3400mm
Flowchart :
Provide
Color :
Customerized
Description

Hot Sand Maker Mine Crushing Equipment / Industrial Sand Making Machine

Introduction

VSI series of Vertical Shaft Impact Crusher (or Sand Making Machine) is a highly efficient crushing machine which introduces "stone to stone" and "stone to iron" crushing principle from American Bamac company. Combining domestic actual sand making condition, this crusher is designed as a highly efficient crushing machine of domestic and international standard. This crusher is widely used to crush various rocks, grinding materials, refractory, clinker, quartz, iron ore, concrete aggregate, etc. VSI crusher is an ideal equipment to make construction sand.

Application:pebble, granite, basalt, calcite, quartz, iron ore

Advantages

1. Simple structure and low operating cost;

2. High crushing ratio with low consumption;

3. Function of fine crushing and crude grinding;

4. Slightly influenced by moisture content of material, and the max moisture content is about 8%;

5. More suitable for crushing mid-hardness and hardness materials;

6. Cubic shape of final products, high density of piling up and low iron pollution.

Technical Parameter :

Model

VCⅡ8622

Capacity(t/h)

Center

feeding

120-220

Center

and side

feeding

150-290

Max. Feed

Size(mm)

50

Double

Motor

Power(kW)

180-220

Overall

Dimension/L×W×H(mm)

4500×2100×3400

Transportation

Dimension/

L×W×H(mm)

4500×2100×2200

Weight(t)

stone

strike

stone” crushing

cavity

9.2

stone strike

iron” crushing

cavity

10.5

Thin Oil Lubrication Station

Double Oil

Pump Power(kW)

2×0.37

Safety

Protection

Double Oil Pump feed each other; Automatic shutdown when

no oil return; Water cooling system; Automatic heating in low temperature.

Oil Tank

Heating

Power(kW)

2

Overall Dimension/L

×W×H(mm)

820×520×1270

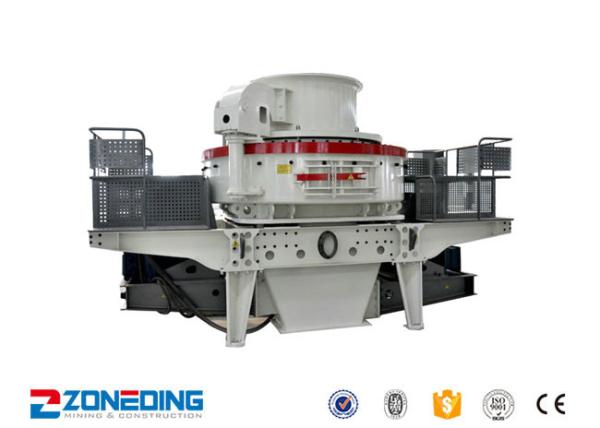

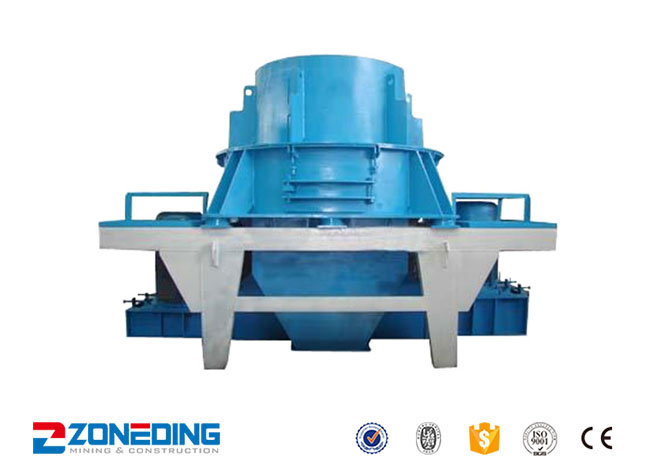

Product Picture Show :
